TEMPO | Fiber Inspection Probe | #FIP100KIT

Original price $1,350.00 - Original price $1,350.00
Original price
$1,350.00
$1,350.00 - $1,350.00
Current price $1,350.00

TEMPO COMMUNICATIONS | PART #FIP100KIT

DESCRIPTION

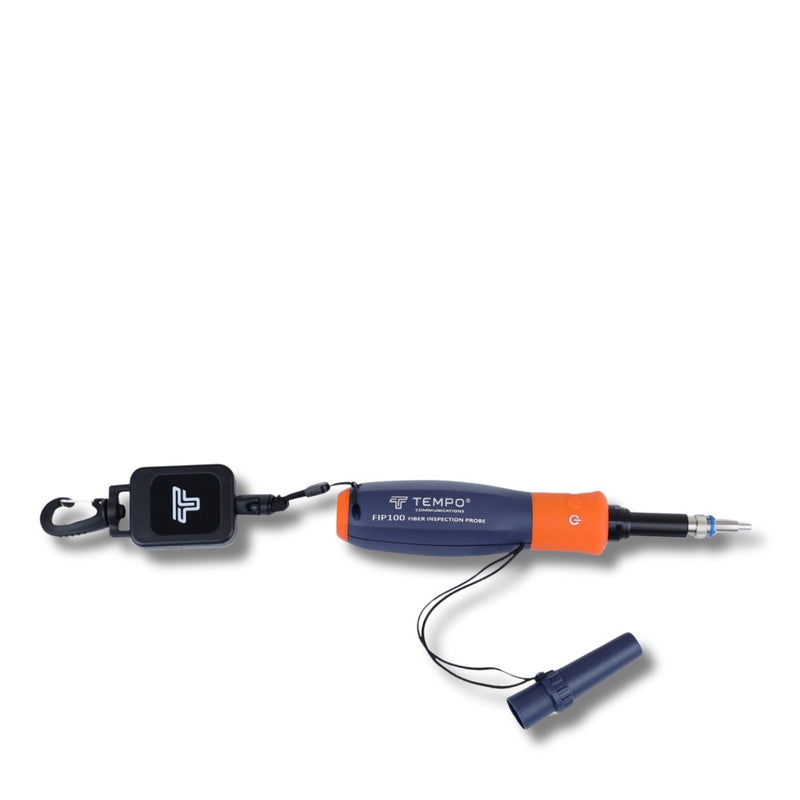

The FIP100 from Tempo is a fully automated inspection tool that provides fast and reliable analysis of fiber optic connector end faces and bulkheads.

With a single button press, the FIP100 automatically focuses, captures an image of the connector endface, and provides a pass/fail result.

The pass/fail status of the connector is instantly reported via a red/green LED on the probe. Detailed results are shown on the iOS or Android app, which provides PDF report generation and sharing.

Both apps are pre-loaded with pass/fail requirements from IEC 61300-3-35, as required by all major telecommunications service providers.

Product Features

  • Test ferrule end faces and bulkheads compliant to IEC61300-3-35

  • Single-handed, one-button operation

  • Auto focus, auto-capture, auto test

  • LED pass/fail indicator on probe

  • Small form factor enables inspection of difficult-to-reach ports

  • Create and share reports on Android and iOS devices

  • IEC, IPC and user-defined inspection criteria

  • Wide range of adapter tips

OVERVIEW

Applications

  • Verify connector cleanliness before connecting

  • Certify connector condition on installation

  • Document connector damage when troubleshooting

  • Inspection is essential for proper fiber handling in all networks

Pass/fail results in seconds: With the press of a single button, the FIP100 auto-focuses, captures, centers and analyzes the end-face image to industry standard IEC 61300-3-35, IPC-8497-1, AT&T TP-76461 and other user-defined criteria.

Untethered operation: One-button operation and pass/fail LED indicator enables operation without reference to the mobile app.

Wide range of adapter tips: Interchangeable adapter tips support fiber connector inspection for a wide range of patch cords and bulkhead-mounted connectors having either PC/UPC or APC polished end-faces.

Smart Device Apps:

  • Auto focus, auto capture and auto test functions

  • IEC, IPC, industry standard, and user-defined inspection rules

  • Pinch-to-zoom fiber end-face images

  • Report generation

  • Multi-language Graphical User Interface (GUI)

  • Day/time stamped job saving

SPECIFICATIONS



Attribute Name Attribute Value
OPTICAL PERFORMANCE
Field of View (FOV) Live and Captured: 612 x 460 μm
Manual Detection Capability (minimum) 0.25 μm
Auto Analysis Resolution <1.0 μm
Stored Image Size 2592 x 1944 (5M) pixels
End-face Illumination Coaxial blue LED 476 nm
Maximum No Damage Live Fiber Power Level +20 dBm
OPERATING FEATURES
WiFi Characteristics IEEE 802.11bng
Focus Auto-focus (≤3 sec) and manual focus
Centering Auto-centering (<1 sec)
Button Functionality Power On/Off (>3 secs); Capture/Analysis/Auto-save/Live
Main LED Functionality Blue = Connected to App, Green = Pass, Red = Fail
Magnification Variable from 80X to 700X, in Live and Capture modes
Applications Compatibility Android ≥4.0.3, iOS ≥8.1
Image Capture with Pass/Fail Analysis IEC 61300-3-35, AT&T TP-76461, IPC-8497-1, user-set criteria
Image File Format JPEG, GIF
Image & Pass/Fail Results Storage Yes
File Storage Capacity Unlimited
Result Manager Storage, rename, delete, transfer
Reporting Built-in fillable PDF reporter
Supported Languages English, French, German, Japanese, Korean, Russian, Spanish
PHYSICAL AND POWER CHARACTERISTICS
Battery Type Li-Ion, non-replaceable by user
Maximum Charger Current Draw 1.2A, battery charge current + device consumption current
Operating Time (typical) 60 hours d; 8 hours continuous
Recharge Time ≤4 hours
Low-Battery Warning Viewed on smart device
Charging LED Status; viewed on smart device Red = Charging, Green = Fully Charged, Blinking Red/Green = Battery Fault
Power Save Features (Controlled by App) Probe Auto-Off – disabled, 5, 10, 30, 60 minutes; Probe WiFi Not Connected – 5 minutes
AC Charger Voltage, Frequency, Current 100-240VAC, 50/60Hz, 5VDC, 2A
Charger Jack 0.9 x 3.2 mm barrel, center (tip) positive
Size (Max Diameter x Length) Ø 40 x 226 mm (Ø 1.6 x 8.9 in)
Weight 150 g (5.3 oz)
ENVIRONMENTAL CHARACTERISTICS
Operating Temperature 0 to +50 °C; 95% RH, non-condensing
Storage Temperature -40 to +70 °C; 95% RH, non-condensing
COMPLIANCE
CE/UKCA
EU Compliant to relevant EU Directives on health, safety, and environmental protection, and certified with CE marking
Safety/EMC/EMI
IEC Compliant to IEC 61010-1 for safety requirements for electrical equipment
EN Compliant to EN 55011 for EMC requirements for industrial, scientific and medical equipment
FCC Compliant to code of federal regulations FCC 47 CFR 15 on unlicensed transmissions
RoHS
EU Compliant to EU regulations Directive 2011/65/EU (RoHS 2) and Directive 2015/863 (RoHS 3)
Test Method
IEC Compliant to IEC 61300-3-35 for visual inspection of fiber optic connectors and fiber-stub transceivers
IPC Compliant to IPC-8497-1 for cleaning methods and contamination assessment for optical assembly
