TEMPO | Fusion Splicer & Cleaver Kit | #FSP200-KIT1
TEMPO COMMUNICATIONS | PART #FSP200-KIT1
DESCRIPTION
The FSP200 touchscreen optical fusion splicer uses core alignment technology, which allows the technician to reliably fuse fiber optic cables with low splice losses in as little time as seven seconds. The intuitive user interface keeps the learning curve short and enables the technician to be productive in a very short time. FTT(x), P2P installations, and all standard fibers are supported with pre-qualified splicing profiles that can be modified and subsequently stored for more demanding fiber applications.
The FSP200 uses the Tempo Communications Splice on Connector, which provides a low loss, low return loss, and reliable connection that surpasses the failure-prone mechanical connector. Splice-on connectors also allow for easier fiber routing, which reduces fiber preparation since the splice-on connector is pre-cleaved and also eliminates the need for a splice tray.

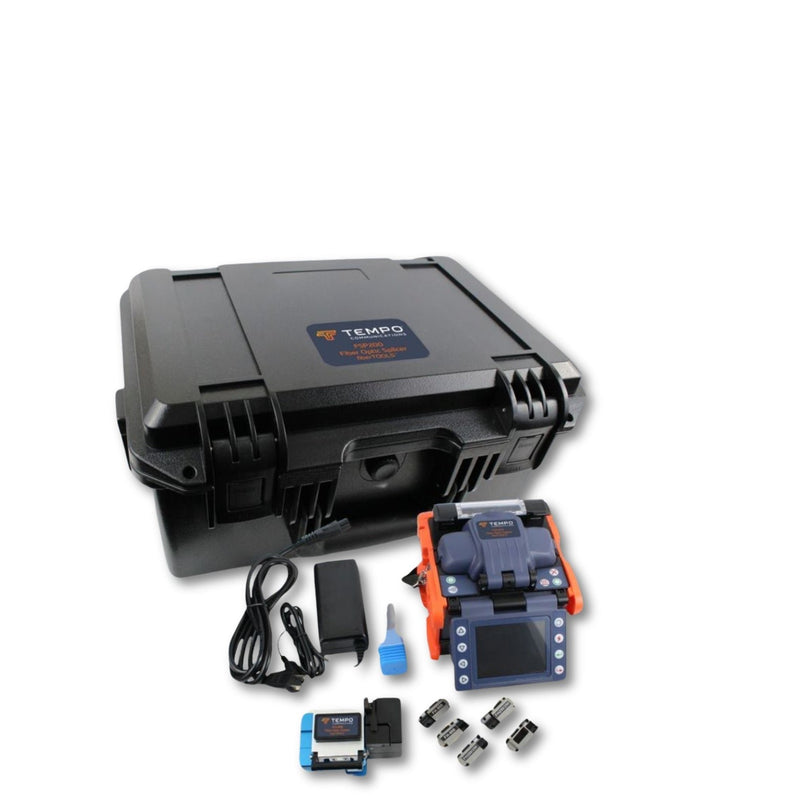

The FSP200 is available in the popular Contractor Kit (FSP200-KIT2) which bundles the fusion splicer, FCL200 cleaver, an extra battery, and fiber strippers so the technician has all of the tools they will need to get the job done right. The Splicer and Cleaver Kit configuration (FSP200-KIT1) includes the FSP200 fusion splicer and FCL200 cleaver. See the Models section below for more details. Backed by a 3-year warranty.
OVERVIEW
- Test and troubleshoot faults in last mile fiber optic links
- Validate installed last mile fiberoptic links for compliance to design
- Short learning curve allows the technician to be productive quickly
- Easy to use “single button” interface with “Auto Test” mode
- Optical power meter, stabilized laser source, and visual fault locator included standard with all models
- Free Trace Viewer documentation program
- Link Viewer that provides a linear Pass/Fail analysis
- On-board storage of 8GB
- Manufactured by TEMPO Communications
DOCUMENTS
FSP200 Optical Fusion Splicer Datasheet
FSP200 Optical Fusion Splicer Manual
SPECIFICATIONS
| Attribute Name | Attribute Value |
|---|---|
| Applicable Fibers | SM (G.652); MM (G.651); DS (G.653); NZDS (G.655); BIF (G.657); EDF |
| Fiber Cleaved Length | 10mm |
| Cladding Diameter | 100 to 1000µm |
| Fiber Count | Single |
| Fiber Aligning Method | Core Alignment |
| Splice Loss | (Typical) 0.02 dB (SM); 0.01 dB (MM); 0.04 dB (DS); 0.04 dB (NZDS & BIF) |
| Splicing Mode | 60 Preset / User Definable Modes |
| Splice Time | 7 seconds |
| Boot Time | 5 seconds |
| Number of Splices Per Battery Charge | 200 (including 60mm heat shrink cycle) |
| Splice Connector | SC, LC, FC, ST |
| Arc Calibration Mode | Automatic & Manual |
| Protection Sleeve Length | 60mm, 40mm, Micro Sleeves |
| Ingress Protection | IP5X (Dust); IPX2 (Water) |
| Storage of Splice Results | 5,000 Results, 100 screenshots |
| Drop Test | 76cm on five axis |
| Tension Test | 2N |
| Fiber Display Magnification | 200x |
| Tube Heating Time | 18 seconds |
| Attenuator Mode | 0.1 to 15 dB |
| Electrode Life | 5,000 Splices |
| Display | 5" Color LCD Touchscreen |
| Connectivity | USB |
| Storage Temperature | -40 to +158F (-40 to +70C) |
| Operating Conditions | Pressure: 0 to 16,404 feet (0 to 5,000 meters) above Sea Level Humidity: 0 to 95% Temperature: -4 to +131F (-20 to +55C) |
| Power Supply | 100 to 240V AC Adapter; Li-ion Battery (4400 mAh) |
| Weight | 3.74lbs (1.7kg) with battery |
| Dimensions | 4.9” x 4.9” x 5.3” (125 x 125 x 135mm) |
| Vibration Resistance | 10Hz – 500Hz with a spectral density of 0.03 g2/Hz |
| Password Protection | Yes |
