Tornado Cable Blowing Machine (89000)

IMPORTANT NOTICE: BLOWING MACHINES REQUIRE A CUSTOM QUOTE

Due to varying configurations and freight charges, blowing machines cannot be purchased directly through our online store. To receive an accurate quote, please contact us directly via phone or email.

PHONE: 812-501-5043 | EMAIL: orders@destinysolutions.us

When emailing, please include the following information for faster processing:

• First & Last Name:
• Company Name (if applicable):
• Shipping Address:
• Part Name & Number:
• Configurations (see below):

DESCRIPTION

Designed to be safe, fast and effective, the Tornado Cable Blowing Machine installs fiber optic cable into pre-installed innerduct or direct buried innerduct.  Expanded capacity now allows for large (1.34″/34mm), high density or high fiber count (1728/3456) cables.  A conversion kit allows the Tornado to place either 12.7, 12/10mm or 10/8mm micro ducts into innerduct as well.

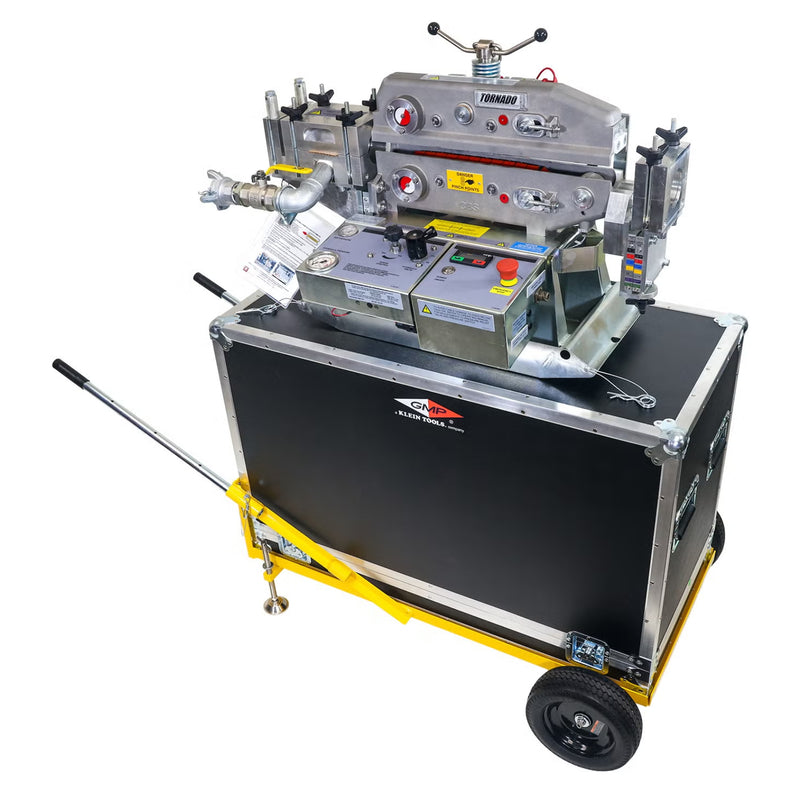

Comprised of an aluminum air box and cable pusher, the Tornado uses compressed air to install the cable with or without a missile. In operation, the hydraulically powered, belt drive system controls the fiber optic cable as it is propelled by compressed air through the innerduct. An electronic monitoring system provides read-outs of speed and distance, helps protect cable against damage, and includes an emergency stop button.

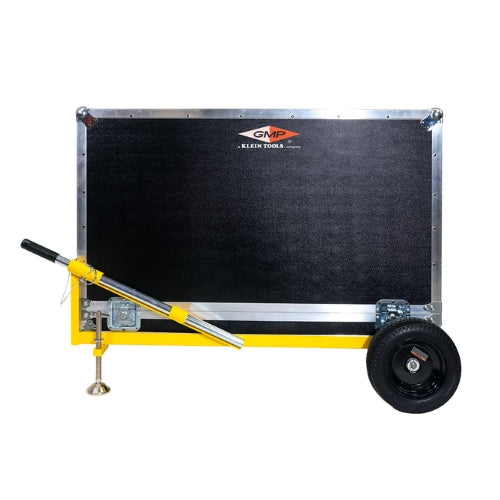

The air box and cable pusher are mounted on a lightweight, tubular-steel frame that can be tilted at a 30-degree angle to the manhole, which significantly minimizes any bending of the innerduct and cable. The frame has retractable handles to permit ease of maneuverability, and adjustable rear legs that provide added stability on uneven terrain. This unit comes complete with a gasoline engine powered hydraulic power pack.

Ideal for long-haul fiber, high-count cable builds, and large carrier installations.

WHAT'S INCLUDED WITH YOUR TORNADO

• Tornado Blowing Machine
• Hydraulic Power Pack
• 1 set of duct clamps for duct size of your choice
• 1 set of cable seals
• 1 cable seat plug
• Toolkit
• Manual

TORNADO CONFIGURATIONS

• Include your configurations in your quote request for faster processing.

SPECIFICATIONS

• Operating Capacities
  • Pushing Force: 0-220 lbs. (0-100kg)
  • Pushing Speed: 0-300 ft/min (0-90m/min)
  • Cable Size: .24-1.34" (6-34mm) O.D.

  • Sub – Duct Size: 1/2-2" SDR (12-63mm) O.D.

• Pneumatic System

  • Air Hose Bore (min): 1 1/4" (32mm)

  • Operating Pressure: 175 psi (12 bar)

  • Flow: The air supply should be filtered, cooled and dry

  • For Ducts with an Inner Diameter of: (Minimum Flow Acceptable @175 psi (12 bar))

    • 0 up to 1" (0 up to 25mm) : 150 CFM (4m³/min)

    • 1 up to 1 1/8" (26 up to 30mm) : 185 CFM (5m³/min)

    • 1 1/8 up to 1 3/8" (31 up to 35mm) : 250 CFM (7m³/min)

    • 1 3/8 up to 1 5/8" (36 up to 40mm) : 375 CFM (10m³/min)

    • 1 5/8 up to 1 3/4" (41 up to 44mm) : 450 CFM (12m³/min)


    • 1 3/4 up to 2" (44 up to 51mm): 700 CFM 19m³/min

• Hydraulic Drive

  • Operating Pressure: 1670 psi (115 bar) max

  • Flow: 4 gpm (15 liters/min)  recommended

  • Pressure Switch Setting: 1450 psi (100 bar) .47-1.34 inch (12-34mm) OD cable

    •  870 psi (60 bar) .24-.47 inch (6-12mm) OD cables

  • Relief Valve Setting: 1600 psi (110 bar) .47-1.34 inch (12-34mm) OD cable

    • 1015 psi (70 bar) .24-.47 inch (6-12mm) OD cables
  • Initial starting pressure: 290 - 580 psi (20-40 bar) (if greater, the set-up needs checking)

Recommended Compressor: This reliable and efficient rotary screw compressor (see photo left), powered by a diesel engine, provides a maximum working pressure of 175 psi. The air output is filtered and conditioned to optimize the performance of our Tornado Fiber Blower. The maximum free air delivery is 370 cubic feet/minute. The unit is mounted on a two-wheeled trailer with brakes and an adjustable towbar. Compressor Aftercooler is also available.
