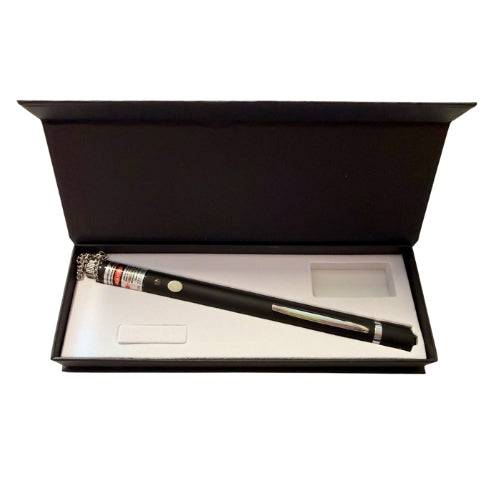

Visual Fault Locator Pen Style VFL-10 (10 mw)

The 10 mW visual fault locator (VFL) is a high-power fiber optic troubleshooting tool used to identify physical defects in optical networks over significant distances. While a standard 1 mW VFL is sufficient for short patch cords, a 10 mW unit is designed for professional field work where higher visibility and range are required.

Primary Uses and Capabilities

• Long-Distance Troubleshooting: A 10 mW laser can trace and identify faults in fiber spans up to 6.2 miles (10 km). This makes it ideal for campus-wide networks or outside plant (OSP) fiber runs.
• Locating Physical Damage: It forces visible red light into the fiber core. At points of bending, cracking, or breaks, the light "leaks" out, causing the cable jacket to glow red at the exact spot of the fault.
• OTDR Dead Zone Testing: OTDRs often have a "blind spot" at the very beginning of a fiber run. A VFL is the standard tool for finding faults in this initial dead zone.
• Penetrating Dark Jackets: Higher power is necessary to see light leaking through thick, dark, or armored cable jackets that would otherwise absorb the light from a lower-power laser.
• End-to-End Identification: It is used to identify a specific fiber strand among dozens in a large bundle or patch panel by checking which connector lights up at the remote end.

This 10 mW visual fault locator (VFL) typically has a maximum distance range of 6.2 miles (approximately 10 km).

While the theoretical range is often cited as 10 km, the actual "visible" distance can vary based on the fiber type, jacket color, and ambient lighting. For comparison, a 1 mW VFL generally reaches about 1.8 miles, while a 5 mW unit reaches roughly 3 miles.

Factors That Affect Distance

• Fiber Type: Light travels further and more clearly in single-mode fiber than in multi-mode fiber.
• Jacket Thickness: Thicker or darker cable jackets can make it much harder to see the red glow of the laser at the fault point.
• Ambient Light: In direct sunlight, the red laser is harder to see. Many technicians use the pulsed mode to make the light "blink," which is easier for the human eye to track.

Never look directly into the laser beam or point it at others, as it can cause immediate and permanent eye injury at this power level.
