VIAVI | SmartOTDR 100B 1310/1550 AND FILTERED 1625NM - SC/APC | #ST-OTDRF136FB-APC-P1

VIAVI | PART #ST-OTDRF136FB-APC-P1

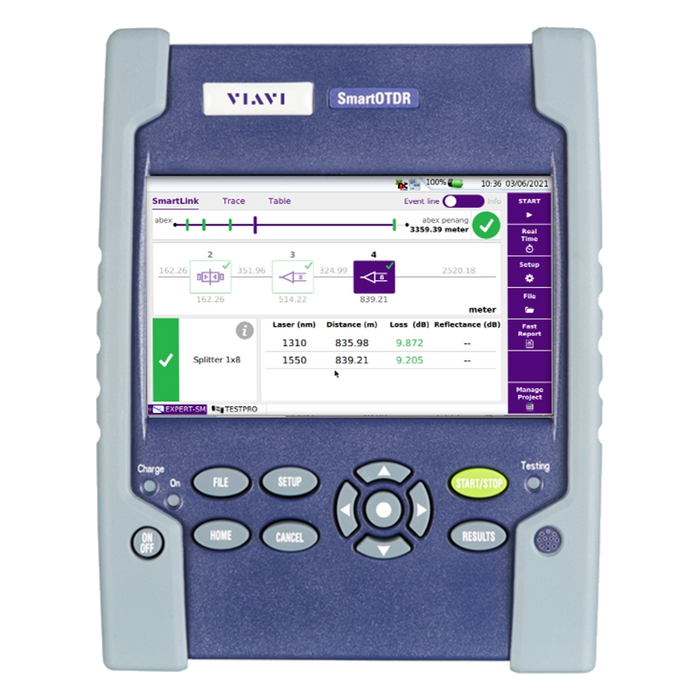

SmartOTDR Handheld Fiber Tester

DESCRIPTION

The affordable, easy-to-use handheld tester for techs at any level. Lightweight and compact SmartOTDR speeds and optimizes field testing of metro and access networks— with a tailored OTDR interface and automatic analysis that any technician can understand. With SmartOTDR, generic or user-defined setup configurations eliminate setup errors and maintain results consistency. One-touch operation and a single results window ensure fast and easy measurements, while robust wireless connectivity options increase productivity anywhere.

BENEFITS

• Combines all essential fiber tests in one
  handheld with visual fault locator (VFL), optical
  power meter (OPM), and connector inspection
  scope options
• Simplifies OTDR analysis with Smart Link
  Mapper (SLM) result view
• Upgrades easily in the field
• Automates testing with objective,
  pass/fail results
• Enhances productivity anywhere with
  powerful network connectivity options

FEATURES

• Single-/dual-/tri-wavelength versions
  with 1310/1550 nm and in-service 1625 or
  1650 nm wavelengths
• Light, compact, hands-free design includes
  5” high-visibility outdoor touch screen
• Integrated CW light source
• PON optimized to test through
  1x128 splitter ratio with FTTH-SLM
• Supports distributed PON architectures
  (un-balanced, tapered and indexed splitter)
• Built-in broadband and dual-band selective
  power meter (1490/1550/1577 nm)
• Automated fiber inspection with pass/fail
  analysis software
• 4G/5G connectivity via USB, Bluetooth®/
  WiFi options
• All-day battery life (20-hour autonomy)
• Password protection and Watermark
  logo options

INCLUDES

• F136FB-APC - SMARTOTDR B RANGE - 1310/1550/FILTERED 1625NM SC/APC.
• E10VFL - BUILT-IN VFL OPTION FOR SMARTOTDR AND OPTIMETER.
• E10PM - OPTICAL POWER METER OPTION FOR SMARTOTDR.
• E10WIFIBLUE - WIFI/BLUETOOTH BUILT-IN OPTION FOR SMARTOTDR.
• ESMARTFTTH-100-BASE - FTTH-SLM BASE OTDR FUNCTION FOR SMARTOTDR UNITS.
• FBPP-SCASE2 - LARGE SOFT CARRYING CASE.

SMART OTDR DATASHEET
