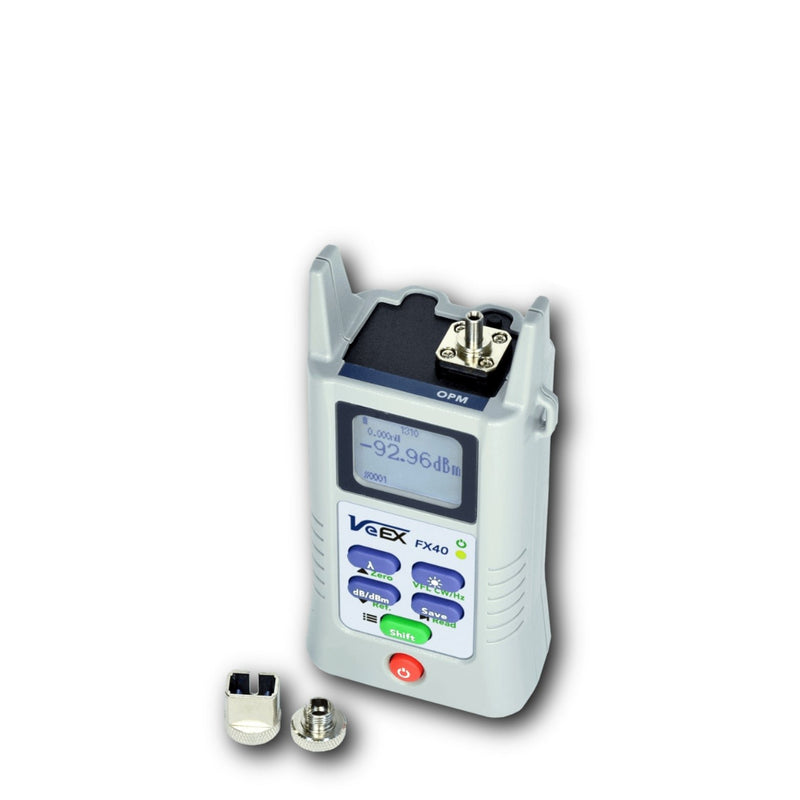

FX40 Optical Power Meter (OPM) +26dBm to -50dBm

DESCRIPTION

Fiberizer® software for Windows® Desktop, Android™, and/or Apple® mobile devices is available to assist in data transfer, record management, and report generation for various VeEX fiber optics testers. View the Fiberizer webpage for more details

INCLUDES

• FX40 Optical Power Meter, with Alkaline Battery support and VFL, 1mW, equipped with universal 2.5 mm receptacle with dust cap
• Carrying Pouch for V40
• Quick Reference Guide, FX40, Getting Started Guide Applicable to FX45/FX48
• 1-Year Standard Warranty from initial purchase
• OTG Cable, Micro-B USB (m) L-shape to Micro-B USB(m) L-shape, 1.8m

FEATURES

• Singlemode and Multimode testing
• Built-in universal 2.5 mm tip sleeve
• PON, Telecom, CATV and LAN/WAN applications
• Dual wavelength laser source and power meter options
• High accuracy and wide dynamic range
• Save OPM measurements (>100 single results)
• Transfer stored results to a PC or upload results to Fiberizer Cloud via micro USB interface for report generation and printing
• Reference power level setup and recall
• Splash resistant keypad and chassis design
• High contrast display - Visible outdoors and backlight for indoor or low light conditions
• Alkaline or Rechargeable battery option with Auto power off
• Field interchangeable optical adaptors support multiple connector types and allow easy access for cleaning

FX40 SERIES DATASHEET

SPECIFICATIONS

Optical Power Meter (OPM) ³

• Calibrated wavelengths: 850, 1300, 1310, 1490, 1550, 1625, 1650 nm
• Power Level Range:
  -PM1 version: -65 to +7 dBm
  -PM2 version: -50 to +25 dBm
• Accuracy^1,2: up to ±0.2 dB or 5%
• Modulation and Wave ID detection: Not supported

General

• Results saving: 100 without timestamp
• OPM Remote control data transfer using LT-Sync PC software
• Communication port: micro USB
• OLS/OPM adaptor types: FC/SC/ST/LC/E2000, Universal 1.25 mm, Universal 2.5 mm
• Battery: Alkaline (AA) or Optional NiMH with 5V micro-USB power adaptor
• Battery operating time: approximately 100 hours (without backlight)

Notes:
1. PM1: SM ±5% at -50 to +7 dBm; ±10% -65 to -50 dBm; MM ±8% at -50 to +7, ±13% at -65 to -50 dBm. Applies only with OPM fitted with SC or FC adaptor.
2. PM2: SM ±5% at -35 to +25 dBm; ±10% -50 to -35 dBm; MM ±8% at -35 to +25 dBm; ±13% -50 to -35 dBm. Applies only with OPM fitted with SC or FC adaptor.
3. FX40 can support a maximum of two configurations: OLS/VFL or OPM/VFL
4. Limited to certain configurations
