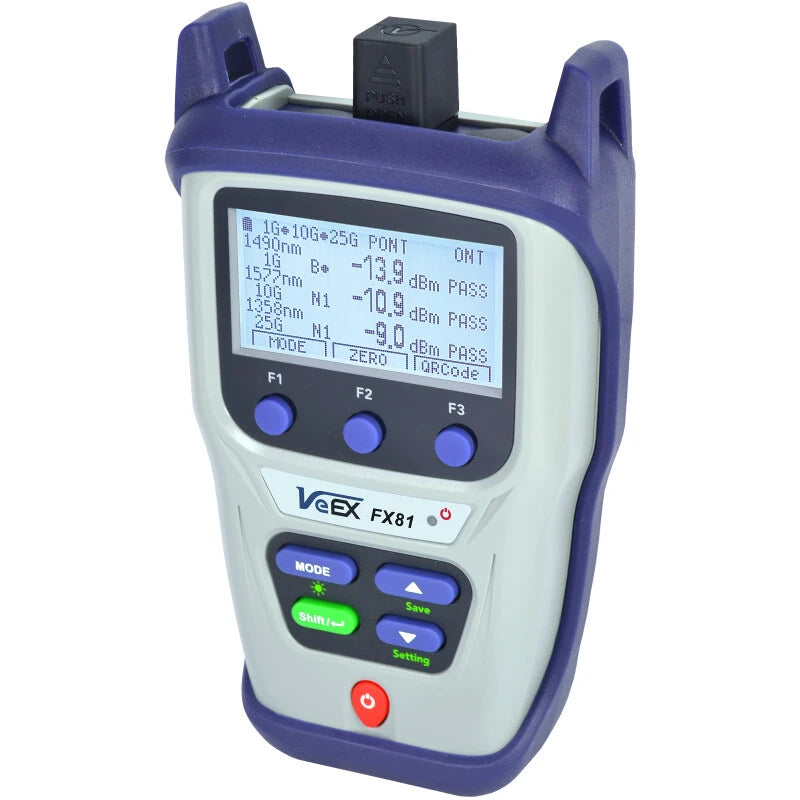

FX81T 1G/10G/25G PON Optical Power Meters

DESCRIPTION

Optical power meter for installation, service activation and troubleshooting of B/GPON, XG(S)-PON, 25G PON, EPON and 10G-EPON fiber networks. Pass-through design to measure multiple downstream and upstream signals simultaneously for ONU/ONT verification or non-pass through/terminated OLT verification.

• Compatible with both GPON and EPON fiber networks
• GPON, XG(S)-PON, and 25G PON test applications
• EPON and 10G-EPON test applications
• 4 models available:
• 2 λ non-pass-through/terminated DS: 1490/1577nm (FX81T)
• 3 λ non-pass-through/terminated DS: 1358/1490/1577nm
• 4 λ pass-through DS: 1490/1577nm, US: 1310/1270nm
• 5 λ pass-through DS: 1490/1550/1577nm, US: 1310/1270nm
• Concurrent measurements display
• Fixed SC/APC Interface for ONU and OLT test ports
• Programmable thresholds with Pass/Fail indication
• Optional broadband power meter with universal adapters
• WaveID support when paired with compatible VeEX source
• Non-volatile storage for 1920 OPM
• Flexible data transfer, test result management and report generation options using:
• Patent-pending NoAppTM QR code transfer
• LT-Sync PC software (microUSB or optional Bluetooth)
• FiberizerTM for Android, Windows, and cloud
• High contrast LCD - visible outdoors, programmable backlight for indoor or low light conditions
• Battery: Built-in, rechargeable Li-polymer
• Battery operating time (with backlight):
• FTTx PON mode: >25 hours

FX81T PON OPTICAL POWER METER DATASHEET

SPECIFICATIONS

• Wavelength-selective level measurements:
• GPON per ITU-T G.984.2
• XG(S)-PON per ITU-T G.9807.1
• 25G-PON per 25GS-PON MSA Group Specification
• EPON & 10G-EPON per IEEE 802.3av
• RF video (RVO)
• Calibrated wavelengths

• GPON and EPON: 1310/1490 nm
• XG(S)-PON and 10G-EPON and 1270/1577 nm
• 25G PON: 1358 nm
• RF video (RVO): 1542 to 1560 nm
• xPON Power Measurement range:

• Burst mode at 1270 and 1310 nm: -35 to +10 dBm
• CW mode at 1358, 1490 and 1577 nm: -45 to +12 dBm
• RF video (RVO) at 1550 nm: -40 to +25 dBm
• Pass-through Insertion Loss: ≤1.5 dB
• Optical Return Loss @ 1550 nm: ≥55 dB
• Display resolution: 0.1 dB
• Optional Broadband Optical Power Meter (BB-OPM)

• Calibrated wavelengths (nm): 850/1300/1310/1490/1550/1625/1650
• CW measurement range (dBm): -50 to +25
