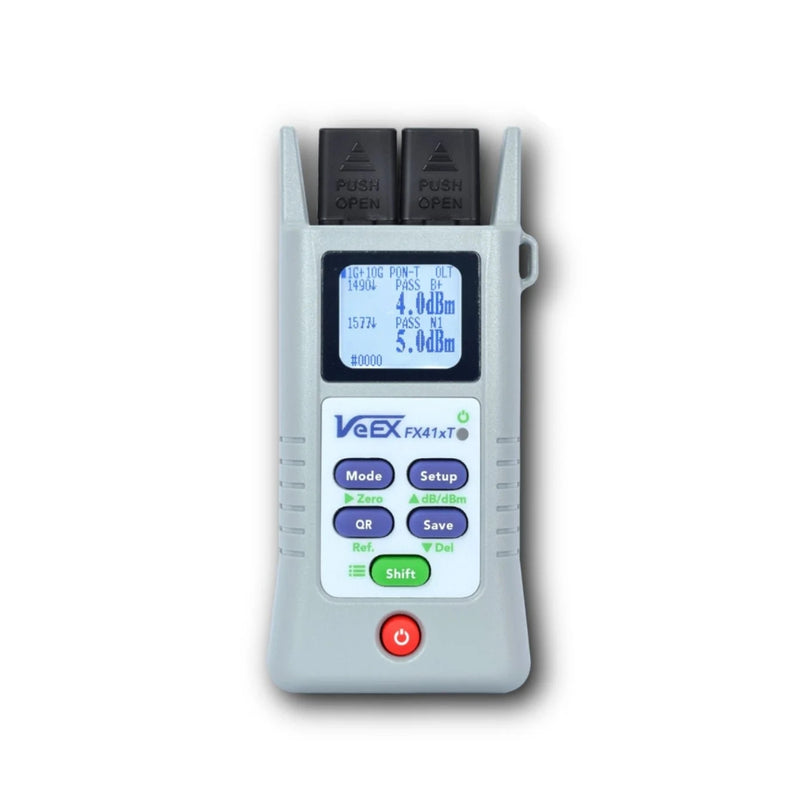

VeEX | FX41xT PON Terminated Power Meter, 1G/10G - 1490/1577nm with High Power (CATV) OPM | #Z06-99-256P

VeEX | FX41xT PON Terminated Power Meter, 1G/10G - 1490/1577nm with Broadband Power Meter OPM | #Z06-99-256P-CON

by VeEX
$549.95 - $549.95
$549.95
$549.95 - $549.95
$549.95
VeEX | PART #Z06-99-256P-CON (FX-41)

FX41xT PON Terminated Power Meter, 1G/10G - 1490/1577nm with Power Meter (OPM) XGS-PON.

This NEW IMPROVED, FX41 is also GOOGLE FIBER APPROVEDĀ as it has the same features but also has a Broadband Power Meter built in which allows you to test these wavelengths as well: 850, 1300, 1310, 1490, 1550, 1625, 1650 nm.Ā

DESCRIPTION

Provides fast, simple, and precise measurement of G-PON and XGS-PON downstream signals with new improved Field Replaceable Optical Connector. Miniature filters ensure each wavelength is measured accurately. The tester is well suited for installation, service verification, and troubleshooting of co-existent networks, including IEEE based E-PON and 10G-EPON deployments

FEATURES

  • Downstream signal verification for 1G/10G PON networks
  • Simultaneous 1490/1577 nm signal level measurements
  • Pass/Fail indication per ODN Class or User thresholds
  • Alkaline or rechargeable NiMH batteries with Auto- off
  • Save up to 2000 measurements with date and timestamp
  • Save/display test results via NoAppĀ® QR code for mobile device transfer, post-processing, sharing, and upload
  • Cloud-based NoAppĀ® service (included) allows for data augmentation via mobile phone or tablet. Secured and always up to date. No installation or updates required.
  • Micro USB interface for 5V DC powering and battery charging
  • High contrast backlit, monochrome display - visible outdoors and indoor with varying light conditions
  • Splash and dust resistant keypad and chassis design
  • Rugged polycarbonate chassis for demanding field conditions
  • Fixed SC/APC connector interface with protective dust caps
  • Visual Fault Locator (VFL) option
  • Broadband Optical Power Meter (OPM) optionĀ
  • Calibrated wavelengths: 850, 1300, 1310, 1490, 1550, 1625, 1650 nm

FX41 SPECIFICATION SHEET

SPECIFICATIONS

  • Wavelength-selective level measurements:
    • G-PON per ITU-T G.984.2
    • XGS-PON per ITU-T G.9807.1
    • EPON & 10G-EPON per IEEE 802.3av
  • Calibrated PON wavelengths (Downstream):
    • 1490 nm (G-PON)
    • 1577 nm (XGS-PON)
  • Selective Spectral Passband
    • Accurate measurements even in the presence of other wavelengths
    • 1490 nm (1480 to 1500 nm)
    • 1577 nm (1572 to 1582 nm)
  • Display Resolution: 0.1 dB
  • Absolute Accuracy: Ā± 0.5 dB
  • Communication Interface: Contact-less QR codes
  • Battery Charging Interface: Micro-USB
  • Battery Operating Time: ā‰„ 75 hours (without backlight)
