VeEX | FX182 Compact, Rugged Optical Channel Checker to Test xWDM Fiber Networks | #Z06-05-052P

VeEX | PART #Z06-05-052P

***Please note: This item currently has a 4-5 week lead time***

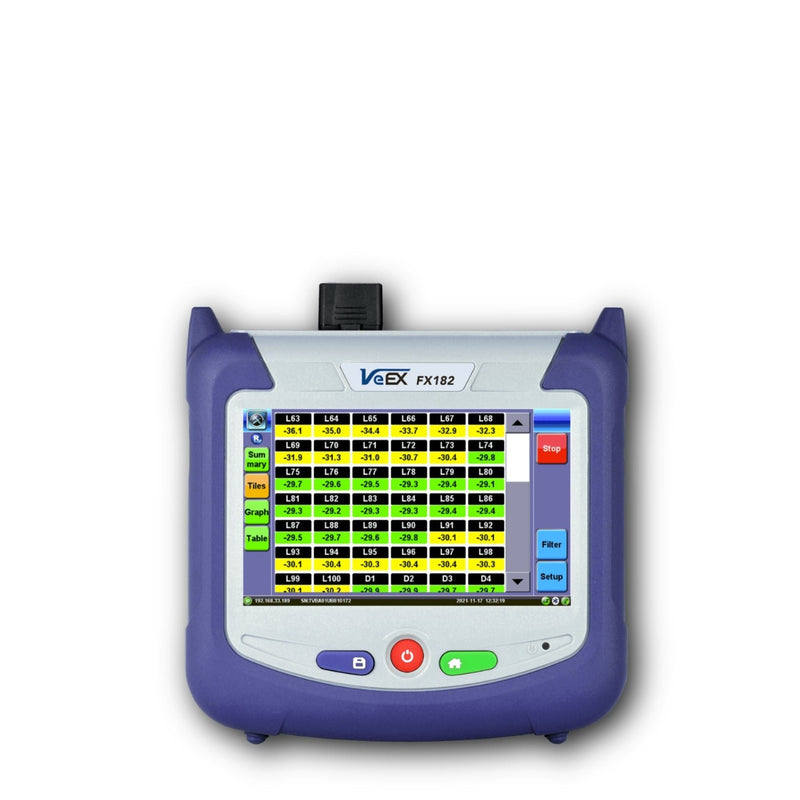

FX182 Compact, Rugged Optical Channel Checker to Test xWDM Fiber Networks

DESCRIPTION

The FX182 is the industry’s first compact Channel Checker to measure both CWDM and DWDM (C&L) band channels in less than 3 seconds. Innovative color-coded display identifies frequency, signal level, pass/fail and marginal channels at a glance*.

HIGHLIGHTS

• Robust, handheld design for field environments
• High resolution, 5” TFT color touch-screen for easy viewing
• Fast boot-up time, in less than 30 seconds
• Internal data storage with 16G memory
• Micro-USB OTG interface for flash drives, fiber inspection probe connection and test data transfer
• Rechargeable Lithium polymer battery with capacity indicator, low voltage alarm and Auto-off function
• >9 hours continuous operation without recharging batteries
• Generate and save test results in HTML file format
• Optional built-in WiFi/Bluetooth option
• Built-in web browser for remote control access
• Optional OTG to Ethernet for network connection

FX182 CHANNEL CHECKER DATASHEET

KEY FEATURES

• Fast <3 seconds measurement time
• DWDM 100 GHz ITU-T G.694.1 C & L-Bands (1520nm to 1610nm)
• CWDM ITU-T G.694.2 from 1271 to 1611 nm
• 3 View Modes: Tiles*, graph, and table view
• Measurement range: ≤65 dB
• Active channel Pass/Fail detection
• Programmable Pass/Fail Level threshold
• Programmable channel tables
• Built-in wavelength reference
• Continuous scanning of all channels
