DESCRIPTION

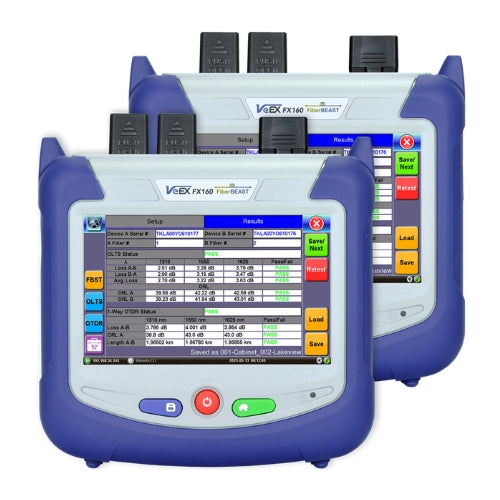

The FX160 combines bidirectional insertion loss and optical return loss (ORL) with OTDR measurement in one report with easy, automated testing. Each FX160 pair communicates using the fiber under test, allowing a single technician to perform bidirectional testing without having to return to the remote device.

The FX160's FiberBEAST™, Bidirectional Easy Analysis by a Single Technician, test suite performs automated bidirectional insertion loss (IL), optical return loss (ORL), and unidirectional OTDR measurements for up to three wavelengths via a single test port.

Bidirectional OLTS 1

Z06-05-104P - Automated Single-Port Bidirectional OLTS + OTDR, Sold in pairs. Priced each.

1310/1550nm 42/41dB Dynamic Range (85 to 120 miles)

Z66-00-189G Universal 2.5mm Interface (Keyed*) with one Field

Replaceable Optical Connector Protector - APC Polish

F99-00-177G SC/APC Adaptor for Universal Interface (Keyed*)

Z66-00-196G Dust Cover Kit for Optical Connector Protector

Z66-00-178G FX160 High Power (CATV) OPM, +26dBm to -50dBm, incl. SC

adaptor

Z66-00-157G VFL, 1mW, equipped with universal 2.5 mm receptacle with

dust cover

Z66-00-106G Wi-Fi and Bluetooth for Remote Control and File Transfer

Z77-00-059G Non-reflective Terminator and Calibration Cable for ORL

Measurement - SC/APC

499-05-072 Advanced Management (Enables the test set to

upload/download results and profiles from R-Server web,

requires R-Server package Z88-00-007P)

499-05-638 V-Scout Multi-Pulse Test Mode

F05-00-070G Fiber Launch Reel*, SM 9/125um G.652.D Fiber with SC/APC

to SC/APC Connector, 150 meters

C02-00-030G Enhanced Carrying Pouch for V150 20 Included

HIGHLIGHTS

• NEW - Now available: patent pending field-replaceable Connector Protector system extends the instrument's lifespan, reduces downtime and improves productivity
• Robust, handheld design for demanding field test conditions
• High resolution, 5” TFT color touch-screen suitable for both indoor and outdoor use
• Fast boot-up for fiber troubleshooting and restoration
• Intuitive display, function keys and touchscreen for fast navigation and easy operation
• Internal data storage
• Micro-USB OTG interface for flash drives, fiber inspection probe connection and test data transfer
• Rechargeable Lithium Polymer battery with capacity indicator, low voltage alarm and Auto-off function
• Continuous operation >9 hours without recharging batteries
• Built-in WiFi option:
• Perform software upgrades using Windows® PC
• Upload test data to Fiberizer® Cloud via Internet connection
• Connect wirelessly to Fiber Inspection Microscope
• Built-in Bluetooth® option:
• Pair with mobile devices/Windows® PC to transfer test results
• Remote measurement using EZ Remote, VNC, or built-in web based software

RELEASE NOTES

Release Notes | FX160 01.00.0000

SOFTWARE

FX160 01.00.0000 Download

Attention: DO NOT downgrade the software version currently installed in your test platform or module, unless specifically instructed by a VeEX Customer Care/Support agent. Your new test set may have been shipped with a newer version. For software upgrades, please check the current version(s) on your test set to confirm that the software posted here is a newer version and carefully read the Release Notes for the recommended platform versions.

SPEC SHEET

FX160

USER MANUAL

FX160 Quick Start Guide

Technical Notes

User Guide: EZ Remote Cloud Service Introduction

Utilities Network Test Solutions Brochure

Test Results Transfer via Bluetooth User Guide

V150 USB File Access Guide

White Paper: Understanding Optical Time Domain Reflectometers

Technical Note: Measuring OTDR Reflectance and ORL

Test Set Software Upgrade Procedure

About FiberBEAST™

Common Questions About the VeEX FX160

What is the VeEX FX160 used for?
The VeEX FX160 is used for automated bidirectional fiber testing, combining insertion loss, optical return loss, and OTDR measurements in a single test report for FTTx, PON, and point to point fiber networks.

Who uses the FX160 test set?
The FX160 is commonly used by fiber technicians, network installers, and service providers who need accurate bidirectional testing without requiring two technicians or multiple site visits.

What makes the FX160 different from a standard OLTS or OTDR?
The FX160 allows a single technician to perform bidirectional OLTS and OTDR testing using paired devices that communicate over the fiber under test, reducing testing time and improving workflow efficiency.

How the FX160 Simplifies Bidirectional Fiber Testing

The VeEX FX160 Handheld Bidirectional OLTS and OTDR is designed to streamline fiber certification and troubleshooting. By combining bidirectional insertion loss, optical return loss, and OTDR measurements into one automated process, it helps technicians complete testing faster while maintaining consistent, standards compliant results across FTTx and point to point networks.

At a Glance

• Handheld bidirectional OLTS and OTDR test set

• Combines insertion loss, ORL, and OTDR in one automated report

• Designed for FTTx, PON, and point to point fiber applications

• Enables single technician bidirectional testing

• Built for field use with wireless connectivity and long battery life
