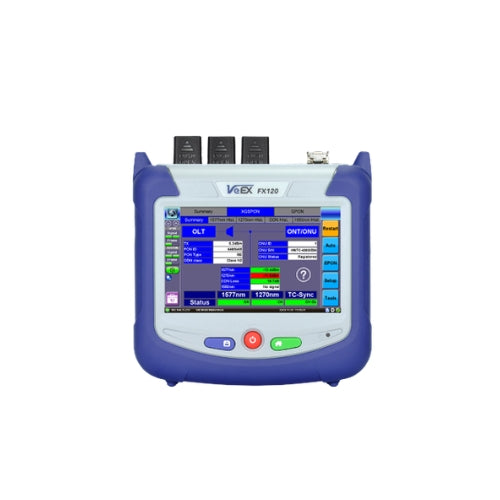

FX120 PON Analyzer & Multi-Gigabit Service QoE Test Set

DESCRIPTION

The FX120 is an all-in-one advanced PON analyzer with an  Ethernet interface and an SFP+ cage to support Layer 4+ testing.  Monitor activation process by displaying pass-through power levels as well as OLT/ONT IDs, status, and TC-Sync. Certify QoE  using Speed Test and V-PERF to ensure internet connectivity  and speed up to 10 Gbps. Optional Fault Locator feature allows technicians to verify drop cables. Optimize testing and report compilation with NoApp® and FlowTM.

HIGHLIGHTS

• Compatible with GPON, XG(S)-PON, EPON, 10G EPON networks
• Pass-through selective wavelength PON meter for ONT/ONU service verification
• Pass/Fail ITU-T/IEEE thresholds enable fast, efficient, and consistent turn-up of services
• Layer 4+ test option including V-TEST, V-PERF, and V-FTP up to 10GE; SFP+ cage for additional test options
• Simple and intuitive user interface
• FlowTM for efficient testing and report compilation process
• NoApp® QR code capability for faster result transfer
• Easy report generation and data transfer using R-Server for workflow and results management
• Test set connectivity via micro-B USB and optional built-in WiFi and Bluetooth® wireless interfaces; USB-A and LAN interfaces available via OTG cables
• Remote access/control via web browser and VNC® client. Compatible with VeEX EZ Remote collaboration services.
• Field upgradeable using USB stick
• Fiber tool accessory options: OPX-BOXe OTDR, DI1000/1000MPO/3000 Fiber Scope and FX40/45/80 series OPM
• Fast boot and ready to test in <60 seconds
• Field replaceable Li-Ion battery pack with >12 hour autonomy
• 5-inch LCD color touch screen
• Rugged and compact form factor

KEY FEATURES

• Ethernet
  • IPv4/IPv6 and PPPoE, DHCP and static IP
  • Ping, trace route, IP PCAP, Traffic PCAP, Loopback
  • Complete Layer 4+ test suite: V-TEST (Ookla® Speedtest®), V-PERF (RFC6349), and V-FTP upload and download tests
• Basic Mode
  • Wavelengths: 1270/1310/1490/1577 nm with optional 1550 nm
  • Upstream/downstream LED status indicators for signal and frame status; TC SYNC status
  • Low insertion loss: ≤1.5 dB typ.
• GPON/XG(S)-PON
  • Automatic PON-ID detection including OLT-ID, ODN class, OLT TX power level and ODN link pass/fail
  • ONU/ONT ID, serial number and status
  • GPON ONT Emulation
• Advanced Function Mode
  • Track/manage active ONT IDs and serial numbers
  • PLOAM Capture/Decode
  • OC decode

*GPON/XG(S)-PON per ITU-T standards, EPON per IEEE standards
