JONARD | Universal Cable Stripping Tool | #UST-525

JONARD TOOLS | PART #UST-525

DESCRIPTION

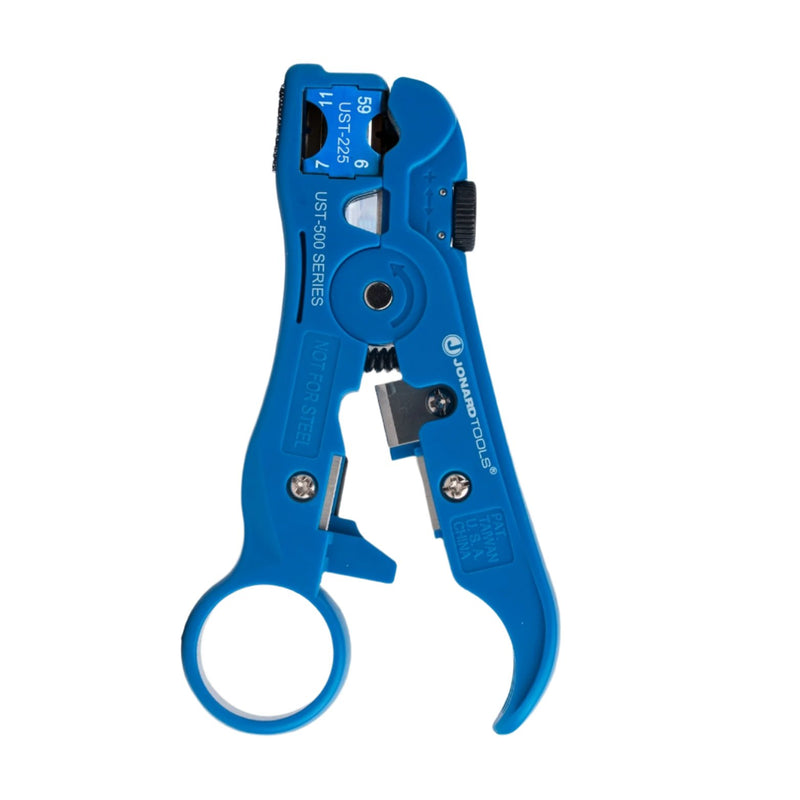

The Jonard Tools UST-525 cable stripping tool is designed to strip COAX, Network Cables, and Telephone Cables for quick and easy termination. This universal stripping tool features the following:

• Included blade cartridge (UST-225) provides a 2-level strip on RG59, RG6, RG7, and RG11 COAX Cables for F, BNC, and RCA connector termination
• High carbon steel blades last over 5,000 strips on each side
• Cable stop on the cartridge ensures precise stripping without need to make adjustments
• Cartridge is reversible for ambidextrous use
• Adjustable stripping hole is used to strip CAT3/4/5E/6/6A PVC and Plenum network cables
• Cutter is included to cut all types of cables
• Separate stripping slot included for stripping Flat Cable & 4P/6P style cable
• Hook and loop strip on bottom of the tool folds back the braided shield on the cable with ease
• Large finger loop provides smooth rotation during use
• Stripping action removes 1/4" of jacket and 5/16" of shield and dielectric, which exposes the center conductor

Cable Type: RG59, RG6, RG7, RG11 with Cable Stop

DOCUMENTS

Universal Strip Tool Datasheet

SPECIFICATIONS
