JONARD | Cable Stripping Tool for RG59, RG6 Cables and CAT/TP Twisted Pair Cables | #UST-150
JONARD TOOLS | PART #UST-150
Cable Stripping Tool for RG59, RG6 Cables and CAT/TP Twisted Pair Cables
DESCRIPTION

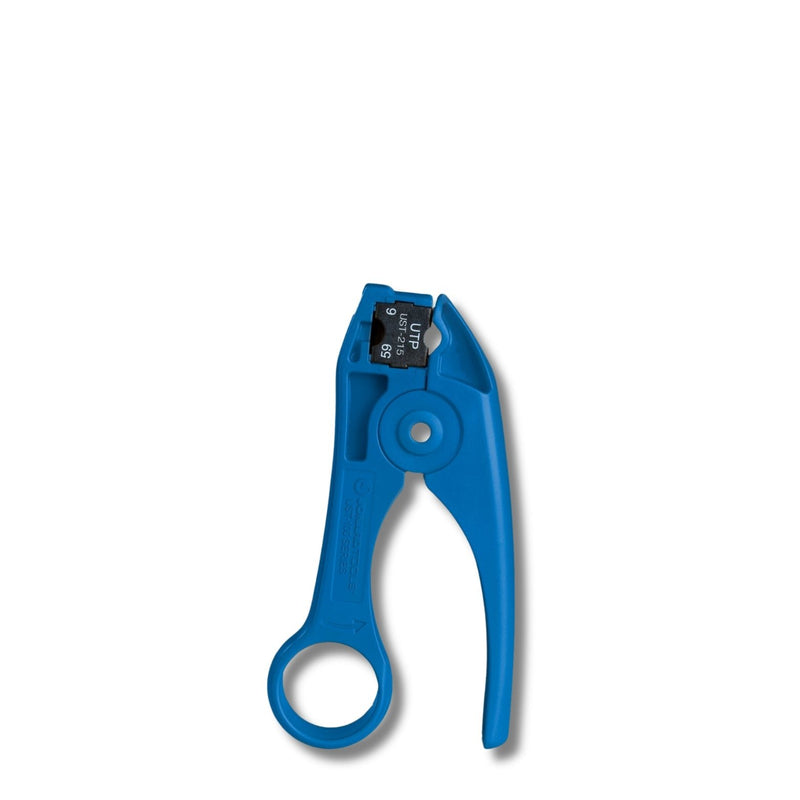

The Jonard Tools UST-150 cable stripping tool is designed to strip RG59, RG6, N48, RG6 Tri & Quad Shield coaxial cables and unshielded twisted pair jackets for quick and easy termination. This stripping tool features the following.
- Included cartridge (UST-215) provides a 2-level strip for F, BNC, and RCA Coaxial cable termination and the other side of the cartridge removes jackets off various (CAT, CAT5, CAT5e, CAT6) unshielded twisted pair cables
- High carbon steel blades last over 5,000 strips
- Cable stop on one side of the cartridge ensures precise stripping without need to make adjustments
- Cartridge is reversible for ambidextrous use
- Hook and Loop strip on bottom of the tool folds back the braided shield on the cable with ease
- Large finger loop provides smooth rotation during use
- Stripping action removes 1/4" of jacket and 5/16" of shield and dielectric, which exposes the center conductor
Model: RG59 and RG6 with CAT/TP
DOCUMENTS
Cable Stripping Tool Datasheet
SPECIFICATIONS
| Cable Type |
COAX |
|---|---|
| Cable Size |
RG59/6/N48, UTP |
| Handle Color |
Blue |
| Dimensions | 4.97 in x 2.62 in x 1.09 in (12.62 cm x 6.64 cm x 2.76 cm) |
| Weight | 0.11 lb (48.124 g) |
| UPC # | 811490013698 |
Common Questions About the Jonard Tools UST 150 Cable Stripping Tool
What is the Jonard Tools UST 150 used for?
The Jonard Tools UST 150 is used to strip RG59, RG6, and unshielded twisted pair cables for accurate connector termination in coax and network installations.
Who is this tool designed for?
This tool is designed for telecommunications, networking, and AV technicians working with coaxial and CAT twisted pair cables in residential and commercial environments.
What makes the UST 150 different from standard cable strippers?
The UST 150 combines two level coax stripping and UTP jacket removal in one reversible cartridge, allowing technicians to prep multiple cable types without changing tools.
At a Glance
• Cable stripping tool for RG59, RG6, and UTP cables
• Supports F, BNC, and RCA connector termination
• Reversible cartridge with built in cable stop for consistency
• Compact design with smooth rotation for field use
