TEMPO | Test Set w/ ABN “Bed of Nails” plus Spike Croc Clips & RJ11 (POS) | #TM-700
TEMPO COMMUNICATIONS | PART #TM-700
Test Set w/ ABN “Bed of Nails” plus Spike Croc Clips & RJ11 (POS)
DESCRIPTION

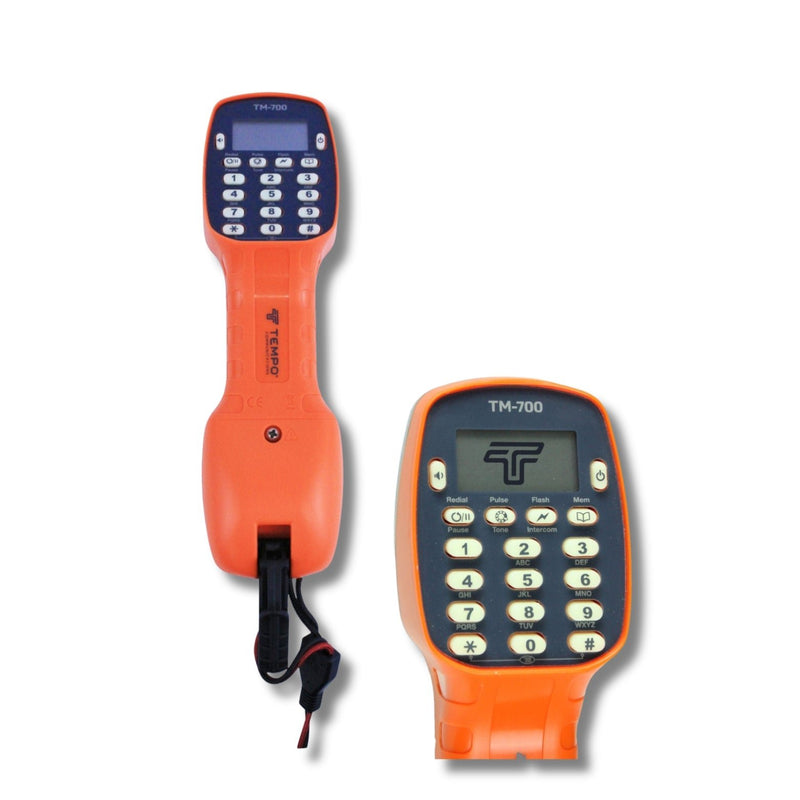

The TEMPO Communications TM-700 telephone buttset helps technicians install, service, and maintain voice services with ease. DSL compatible in both Monitor and Talk modes, the TM-700’s LCD screen makes reading polarity, voltage, current, and ringing frequencies easier than ever, and clearly shows speed dials and recent numbers for faster access
The TM-700 features over-voltage and over-current detection for safer operation and also features an intercom mode, a built-in toner for pair tracing, and DTMF detection and measurement for enhanced productivity. Use the built-in loudspeaker or with a headset (included) for easy hands-free operation.
The Tempo Communications TM-700 makes your job faster, safer, and easier.
OVERVIEW
-
Designed for comfortable shoulder placement. Operate in either hand, clip onto the belt, or use hands free.
-
Allows alerting and talking over a “dead” pair of wires.
-
A built-in pair tracing toner is provided. The frequencies chosen are suitable for use with Tempo probes, as well as any other probe that works in the audio range.
-
Make many jobs hands-free.
-
Advanced silicone rubber keypad glows after exposure to light, aiding operation in low light conditions.
-
LCD for easy dialing, programming, caller ID, voltage, current, ringing, and DTMF measurements
-
Safe over voltage and over current protection
-
Intercom for “dead-pair” talking
-
SmartIntercom™ between Tele-Mate® Pros (including PE830); allows “ringing” the far end
-
Tone generator for pair identification
-
Luminescent (glow-in-the-dark) keypad
-
DSL line filter
-
Super Impedance Amplifier to monitor lines without disrupting traffic
SPECIFICATIONS
| Attribute Name | Attribute Value |
|---|---|
| Application | Test Telephone (buttset) with High-impedance monitor, LCD, Smart Intercom, Calling Line ID, Pair tracing toner, DTMF decoding, Multiple last-number redial and ten speed-dial memories |
| DC Voltage | TNV-3 working, 500 V peak, 1500 V TRANSIENT |
| Dimensions | 9.25 (235 MM) Length X 2.5 (64 MM) Width X 3.25 (83 MM) Height |
| Leakage | > 10 M ohms |
| Loop Current |
|
| Replacement Part | Replaces PE830, Spares CS-01,CS-02, CS-03, CS-04, CS-05, CS-06, CS-07, HS-001 |
| Standard | TIA/EIA-470-B and ETSI |
| StorageOperatingTemperature | -10 C to +70 C, <95% humiditystorage, 0 C to +50 C, <90 % humidity (no condensation) operating |
| Voltage Measurement | 110 V dc max |
DOCUMENTS
Tele-Mate Telephone Test Set Datasheet
Common Questions About TM-700 Telephone Test Set
A telephone test set, also known as a buttset, is used by technicians to install, test, and maintain voice circuits by monitoring, talking, and tracing telephone lines.
What does the TM-700 allow technicians to test?
The TM-700 allows technicians to measure polarity, voltage, current, ringing, and DTMF signals while also supporting pair tracing and intercom functions.
Can the TM-700 work on dead pairs?
Yes, the TM-700 allows alerting and talking over dead pairs using its intercom and SmartIntercom features.
Is the TM-700 safe for live line testing?
Yes, the TM-700 includes over-voltage and over-current protection along with a high-impedance monitor to prevent line disruption.
At a Glance
• Telephone buttset with LCD display
• Built-in pair tracing toner
• Supports dead-pair communication
• Over-voltage and over-current protection
• Hands-free operation with loudspeaker or headset
• DSL compatible in monitor and talk modes
