JONARD | Handheld Thermal Stripper for Ribbon or Simplex Fiber | #TFS-100
JONARD TOOLSĀ | PART #TFS-100

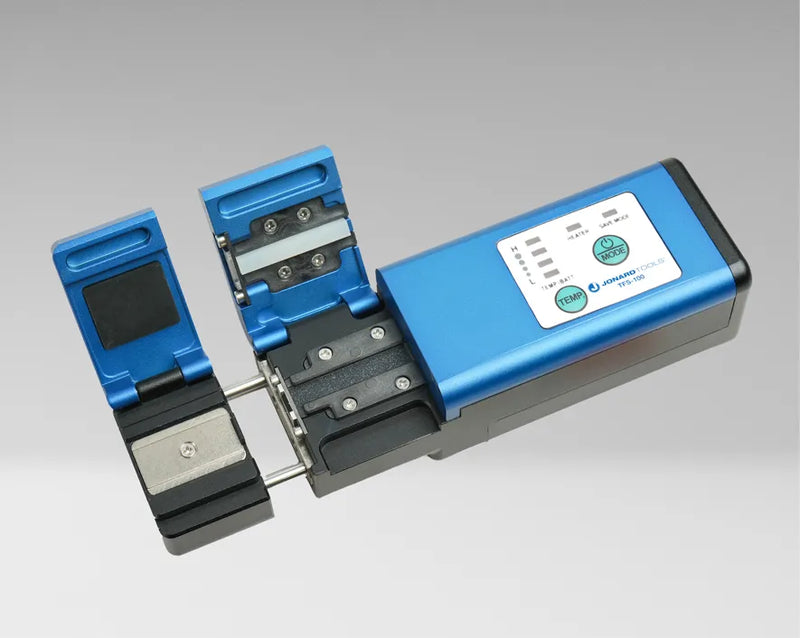

Handheld Thermal Stripper for Ribbon or Simplex Fiber
DESCRIPTION

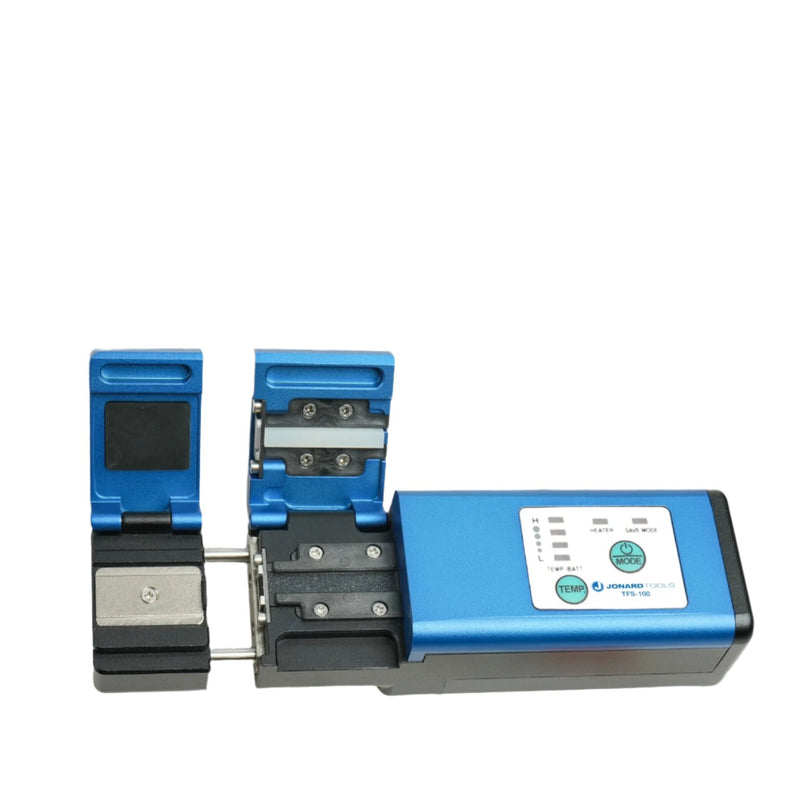

The Jonard Tools TFS-100 portable wireless thermal stripper is designed to strip the jacket off single fiber and up to 12-strand ribbon fiber cable. With an outstanding heating time of 4 seconds, and a rugged aluminum housing, this is the perfect thermal stripper for on-the-go use. This thermal stripper also features the following

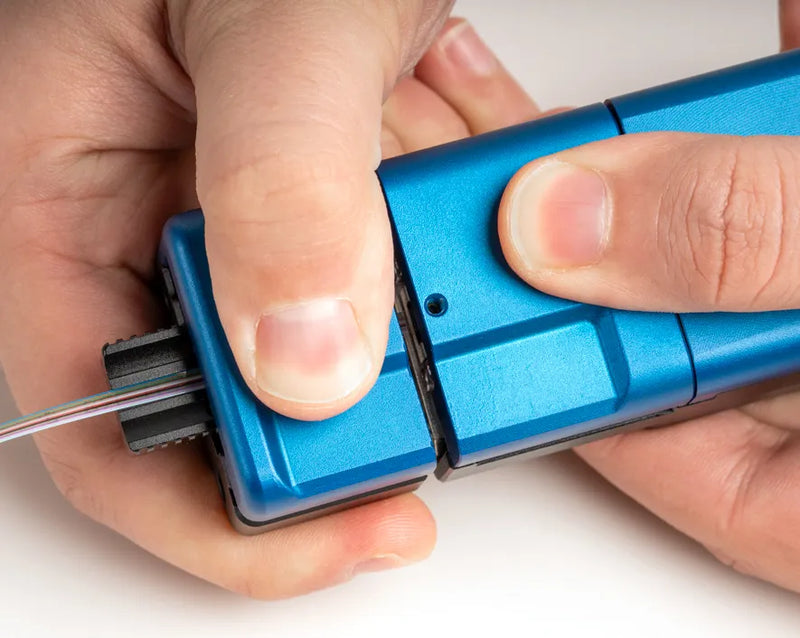

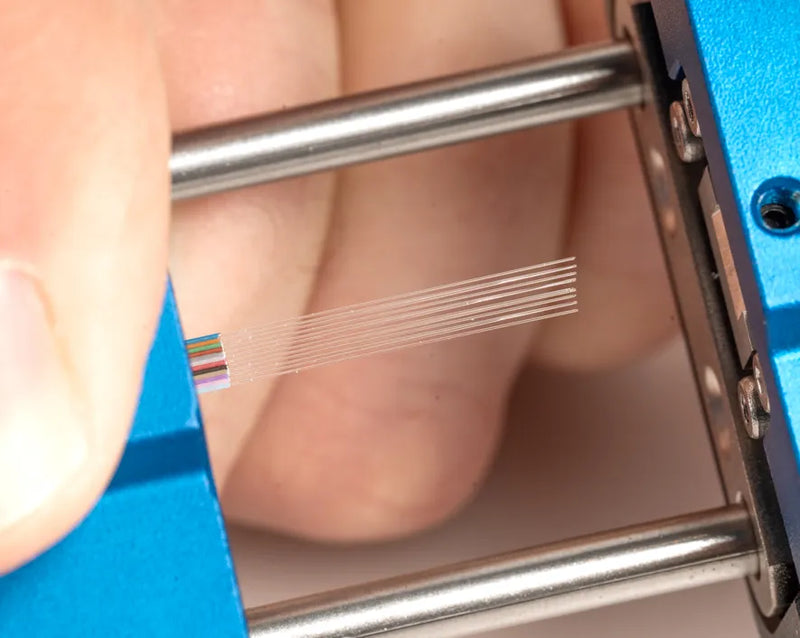

- Strips simplex and ribbon fiber cable (2 - 12 strand) quickly and cleanly every time

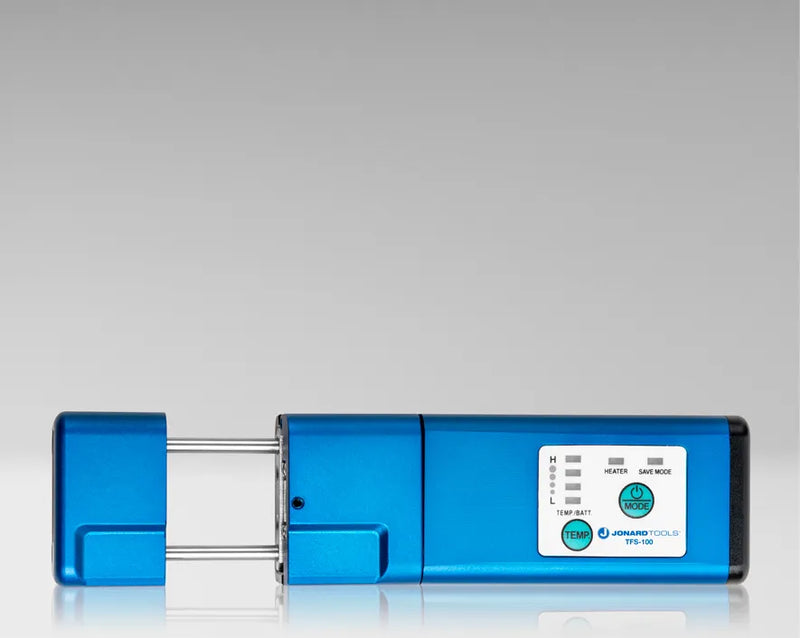

- Rapidly heats to the maximum temperature in 4 seconds, with 4 levels of temperature levels
- Optional power saving mode

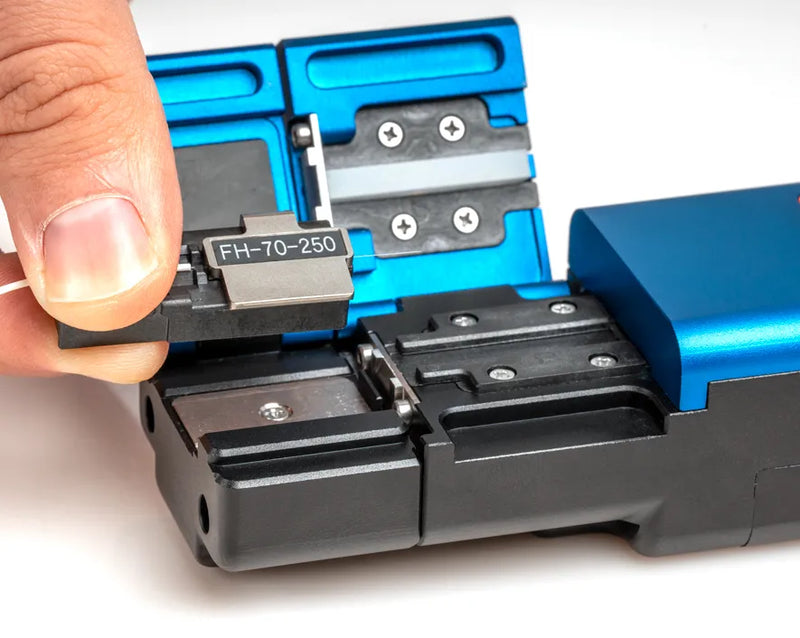

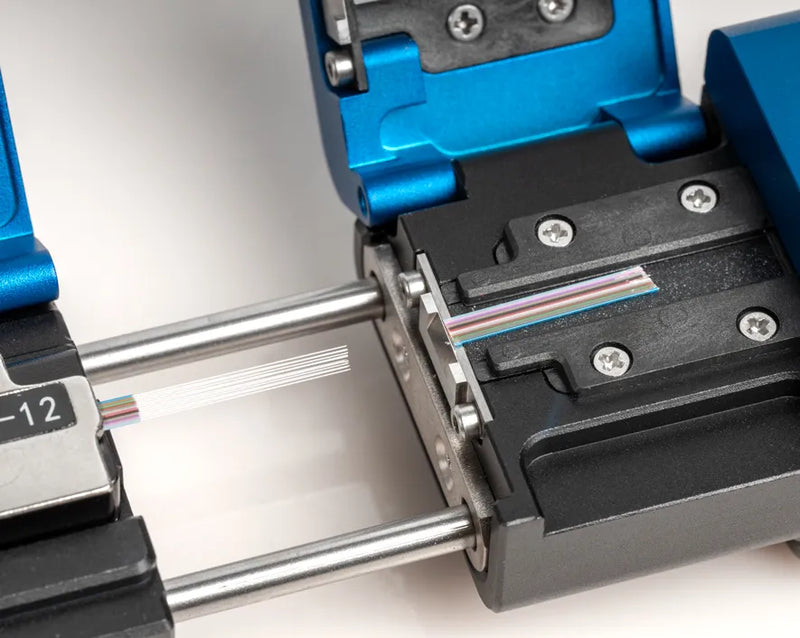

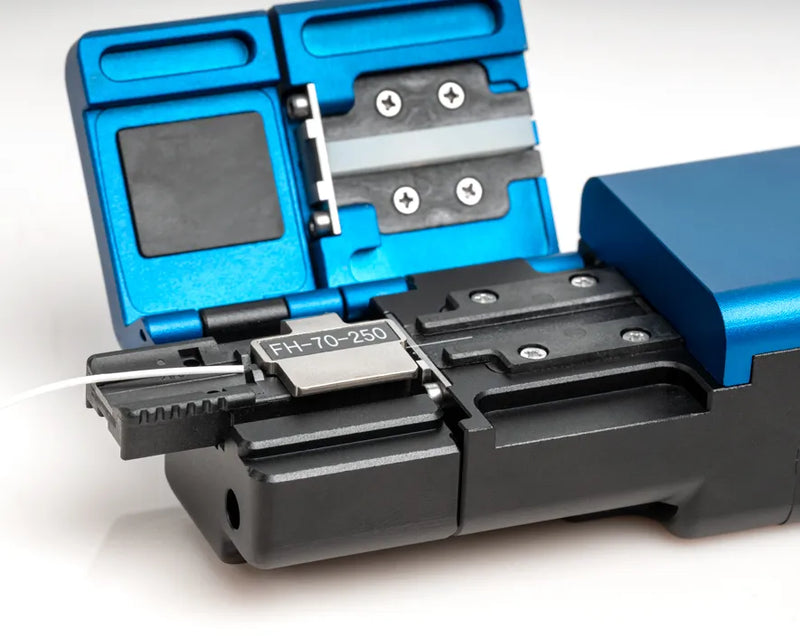

- Compatible with most fiber holders, including Fujikura's field and factory style holders
- Can strip more than 300 times before needing to be recharged

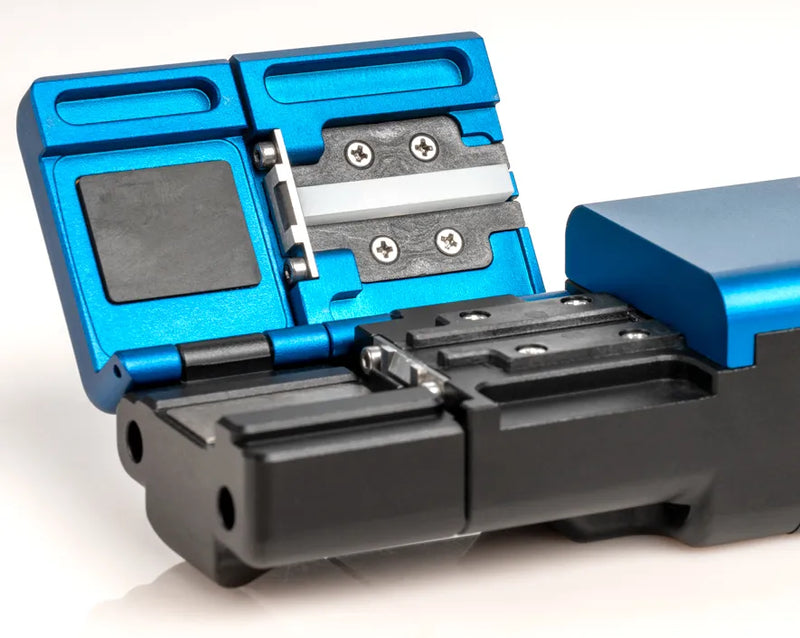

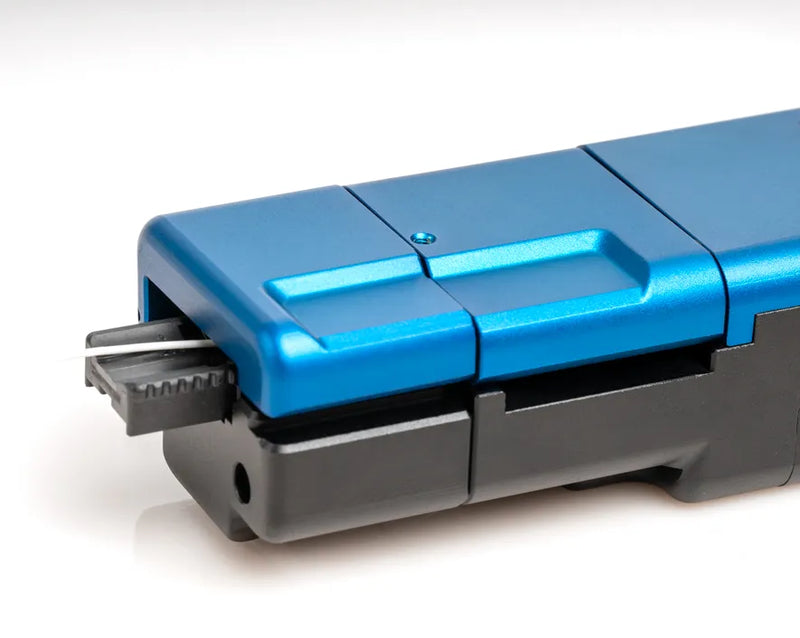

- Rugged aluminum housing protects for long life and durability
DOCUMENTS
Handheld Thermal Stripper Datasheet
Handheld Thermal StripperĀ Instructions
SPECIFICATIONS
| Fiber Types |
Single fiber, Ribbon fiber |
|---|---|
| Coating Material |
UV curable resin |
| Single Core Coating Diameter |
0.25 mm - 0.4 mm |
| Ribbon Fiber Coating Diameter |
0.3 mm - 0.4 mm |
| Cladding Diameter |
125 Āµm |
| Max. CoatingĀ Strip Length |
1.18" (30 mm) |
| Typical Heating Time |
4 - 5 seconds |
| Battery Capacity |
800 mAhĀ Li-battery (300+ cycles) |
| Dimensions | 6.57 in x 2.64 in x 2.01 in (16.69 cm x 6.71 cm x 5.11 cm) |
| Weight | 0.87 lb (394.98 g) |
| UPC # | 810132435355 |
Ā
Common Questions About the Jonard Tools Handheld Thermal Stripper
What is the Jonard Tools TFS 100 thermal stripper used for?

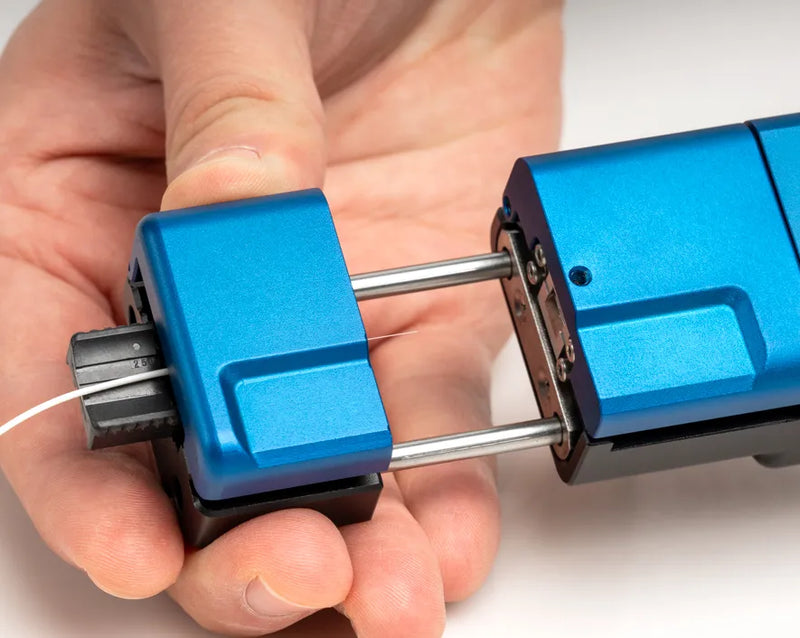

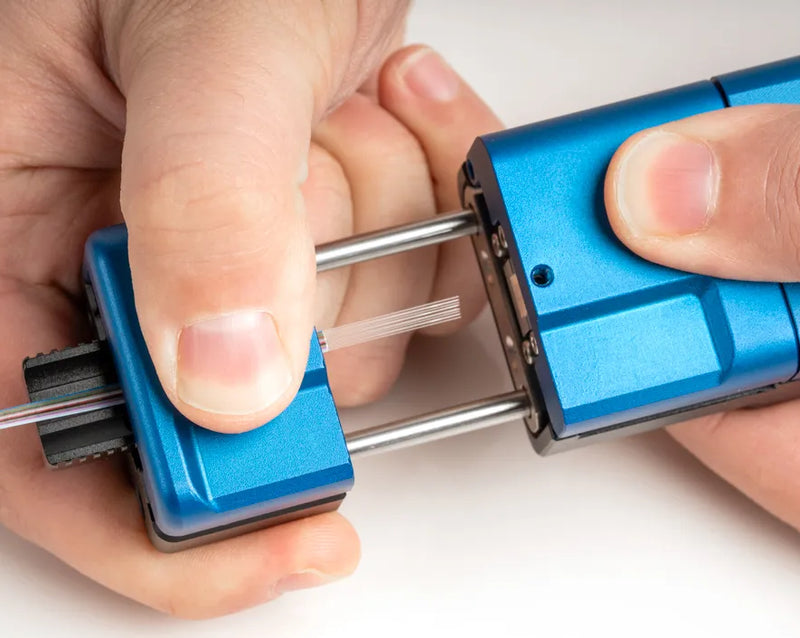

This handheld thermal stripper is used to remove coating from simplex fiber and ribbon fiber cables quickly and cleanly during fiber optic splicing and preparation.
Who should use a handheld thermal fiber stripper?
This tool is designed for fiber optic technicians and splicers who need a portable, wireless solution for stripping single fiber or multi strand ribbon fiber in the field.
What makes this thermal stripper effective for ribbon and simplex fiber?
Fast heat up time, adjustable temperature settings, and compatibility with common fiber holders allow consistent stripping without damaging delicate fibers.
At a Glance
ā¢ Handheld thermal stripper for simplex and ribbon fiber
ā¢ Strips up to 12 strand ribbon fiber
ā¢ Fast 4 second heat up time
ā¢ Designed for portable fiber optic field work
