TEMPO | Wire and Valve Locator | #521E
TEMPO COMMUNICATIONS | PART #521E
Wire and Valve Locator
DESCRIPTION
Introducing the new 521E® Wire and Valve Locator from Tempo®, a groundbreaking evolution of the revered 521A® trusted by technicians for over 25 years.
With feedback from hundreds of irrigation specialists just like you, we designed the 521E® Wire and Valve Locator to be the new market leader in lightweight, ultra-durable underground wire locators. The 521E quickly and accurately finds buried wires, irrigation valve solenoids, and faults in control cables making it the ultimate troubleshooting and maintenance tool for traditional or modern two-wire irrigation systems.
Quickly and easily find buried sprinkler valves: Start at the controller and use the 521E to follow the path of the wires to the valve. The improved noise rejection from the triple-stage filtration makes it easy to track with other utilities nearby.
Determine Depth Before Digging: The 521E sprinkler valve locator accurately determines the depth of wires with the new 45-degree angle indicator. Efficiently locates underground wire breaks, large nicks, and solenoid valves.

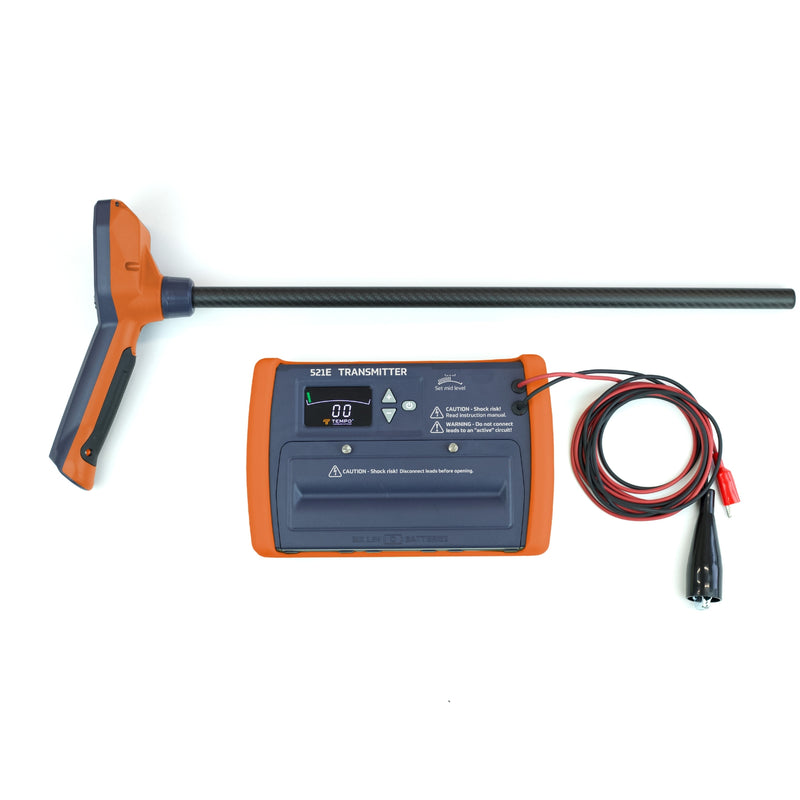

The ergonomically balanced receiver now has a carbon-fiber-reinforced antenna pole for extra strength and durability.
The receiver and transmitter have been modernized with LCD displays making it easy to read results even in direct sunlight. And, BONUS, the ruggedized transmitter is completely removable from the carry case.
The 521E is today’s “must have” tool for irrigation technicians. We think the 521E is the best irrigation locator yet, and think you will too!
OVERVIEW
Troubleshoot and maintain electrically controlled traditional and 2-wire sprinkler irrigation systems with the 521E®, underground wire and valve locator featuring:

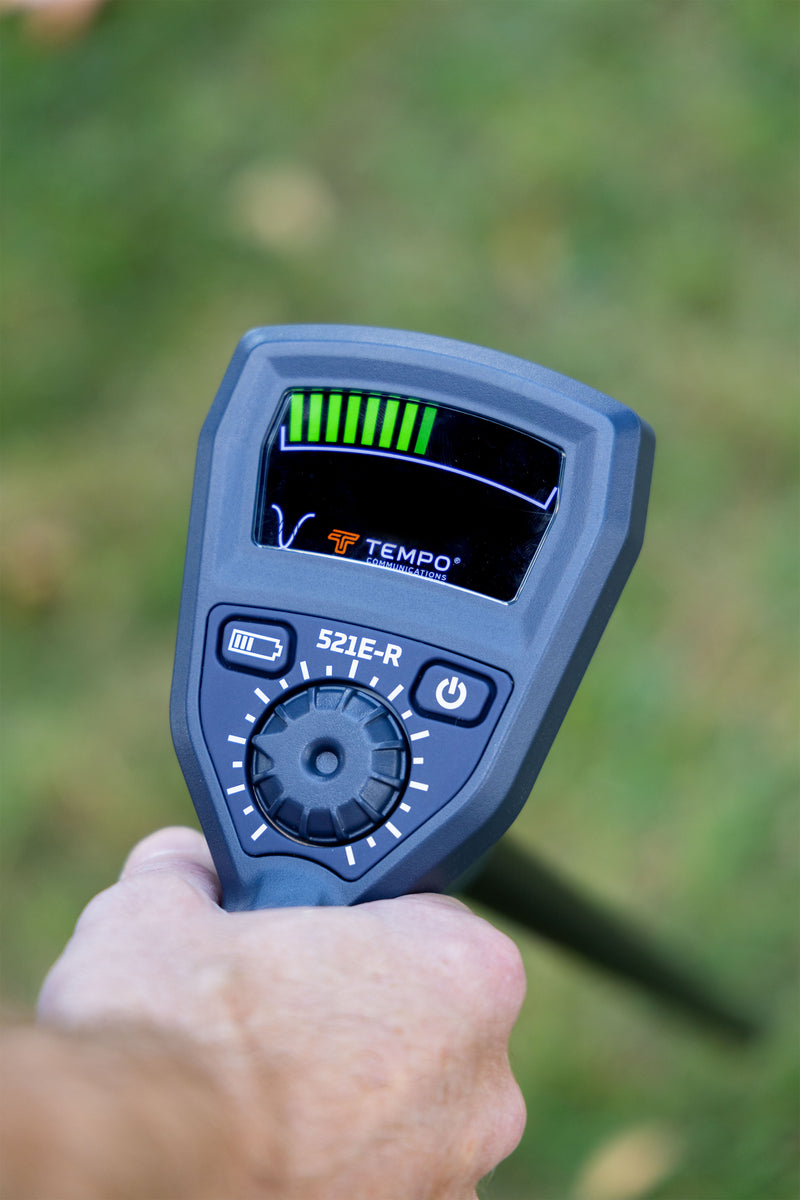

- A lightweight, ergonomically balanced receiver with a carbon-fiber-reinforced antenna pole.
- Receiver and transmitter have a modern, digital display, readable in direct sunlight.
- A new digital 45-degree angle indicator for assisted precision wire depth triangulation.

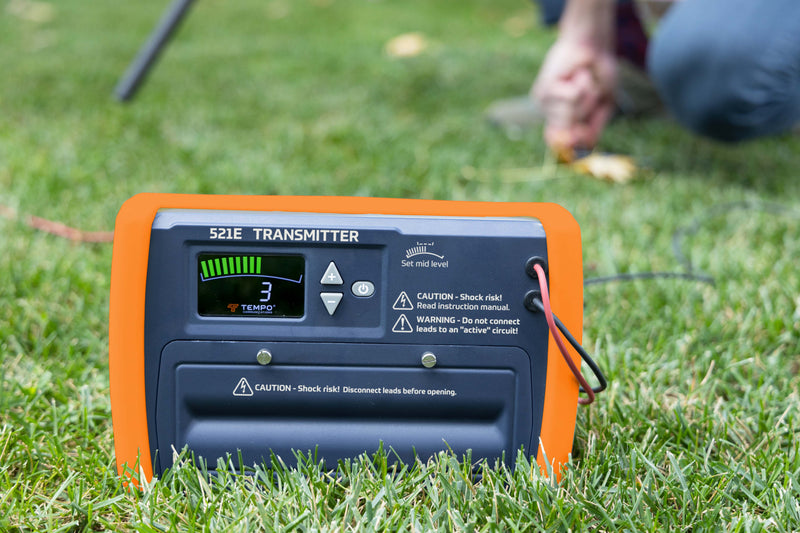

- Ruggedized, high-power, transmitter offers extended long range and allows use on higher resistance wire paths.
- Transmitter is completely removable from the case.
- Adjustable transmit power with real-time audio responsiveness for best signal and maximum performance.
- Triple-stage filtration for improved noise rejection
- Easily track with other utilities nearby without interference
- Receiver provides adjustable loudspeaker or headset audio, and visual indications of signal strength.
- Valve solenoid hotspot signal makes pinpointing valves easy.
- Rugged headphones block ambient noise.

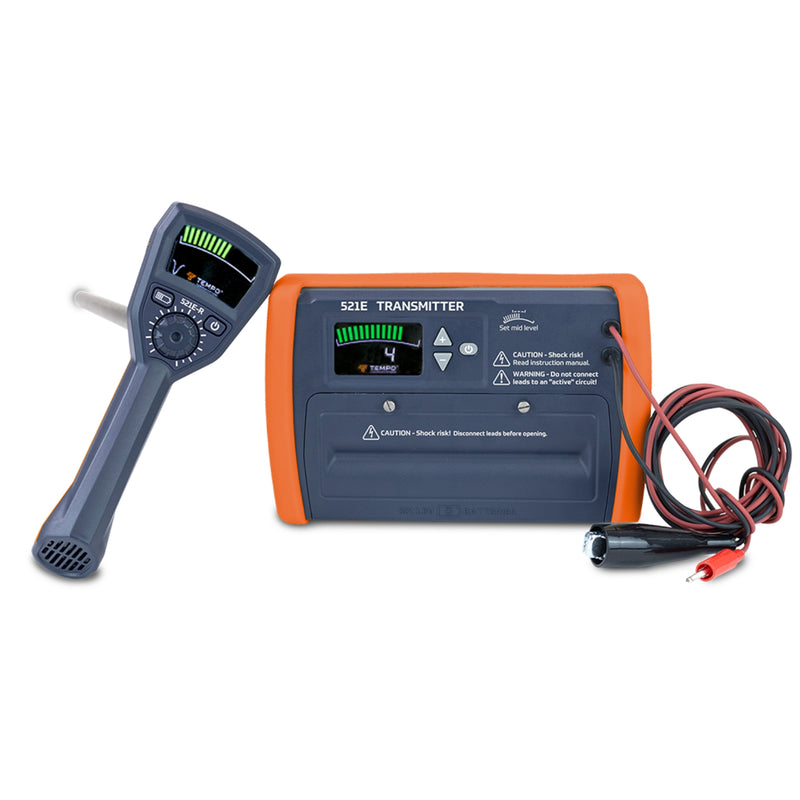

- Includes transmitter, receiver, headset, ground stake, and slim-line carry case.
- Battery-operated.
- 1-year warranty.
DOCUMENTS
2 Wire Application Note for Locators
SPECIFICATIONS
| Attribute Name | Attribute Value |
|---|---|
| Transmitter Frequency: | 1750 Hz |
| Transmitter Power: | 2500 mW into 1 kohm |
| Case Dimensions: | 28” x 12.6” x 4.1” (711mm x 321mm x 104mm) |
| Weight: | 10.25 lb complete (4.65 kg) |
| Battery: | 6 x D cells / 4 x AA cells (alkaline recommended) |
| Battery Life: | Transmitter: 50 hours nominal / Receiver: 50 hours nominal |
| Automatic Shut-off: | 1.5 hours |
Common Questions About the Tempo 521E Wire and Valve Locator
What is the Tempo 521E Wire and Valve Locator used for?
The Tempo 521E is used to locate buried irrigation wires, sprinkler valve solenoids, wire breaks, and faults in control cables for traditional and two wire irrigation systems.
Can the Tempo 521E locate buried sprinkler valves?
Yes. The 521E allows technicians to trace irrigation wiring from the controller to the valve, while the valve solenoid hotspot signal helps pinpoint the location of buried sprinkler valves.
Can the 521E determine the depth of buried wires?
Yes. The 521E features a digital 45 degree angle indicator that assists with wire depth triangulation before digging.
At a Glance
• Locates buried irrigation wires, valves, solenoids, and cable faults
• Designed for traditional and two wire sprinkler irrigation systems
• Digital 45 degree indicator assists with wire depth determination
• Triple stage filtration helps reject interference from nearby utilities
• High power adjustable transmitter for longer range locating
• Sunlight readable digital displays on both transmitter and receiver
