TEMPO COMMUNICATIONS | PART #WMRF60

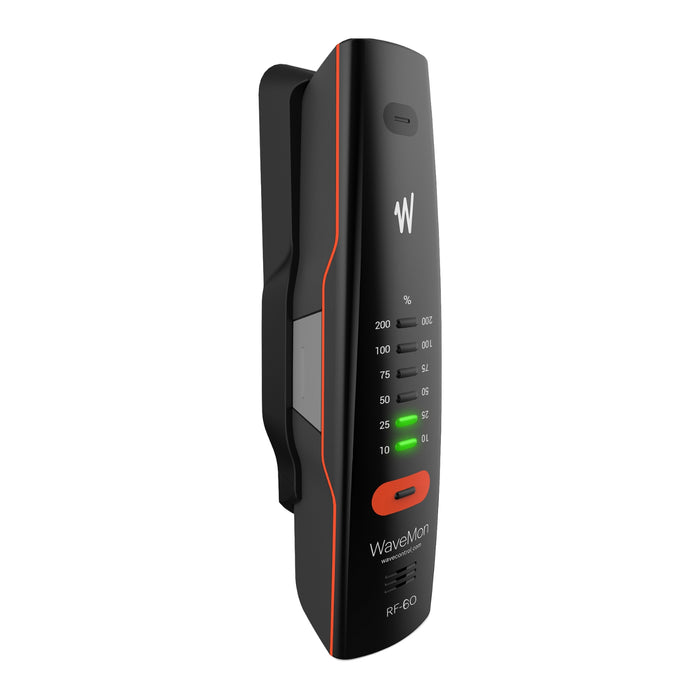

WaveMon RF Personal Monitor
DESCRIPTION
The WaveMon RF-60 is a 5G-ready RF Personal Monitor for the continuous monitoring of workers’ exposure to EMF. It monitors E-field up to 60 GHz. Applications include: worker’s safety, telecommunications, energy, railway, medical, labs, aeronautical, industry, defense.
- Overexposure Warning: Audible, visual and vibration alarm
- ICNIRP, 2013/35/EU, FCC and SC6 (2015): Weighted response to any standard
- Exposimeter with Datalogger: USB downloading and configuration
- Harness, Belt or Arm Holder: Professional and convenient
OVERVIEW
- Harness, belt, or arm holder
- RF absorber integrated in holder
- E & H-Field isotropic sensors with RMS response
- Exposure % of the standard
- Datalogger for exposure studies
- Instant and average values
- On/Off status button
- GPR & Altimeter (optional)
- High intensity audible and vibratory warnings
- USB and tripod connectors
SPECIFICATIONS
| Attribute Name | Attribute Value |
|---|---|
| Sensor type | Isotropic, RMS diode technology |
| Response | Shaped to specific standards |
| Dynamic range | 1 - 300 % |
| Linearity | ±0.5 dB (2% - 200%) |
| Isotropic deviation | ±1 dB < 3 GHz (E field) |
| Interface | 1 button on/off, status and low battery LED |
| Indicators | 6 LEDs + Audio + Vibration |
| Alarm threshold | 2 limits adjustable by user |
| Connectivity | Waterproof USB (for downloading data and recharging) |
| Falling detection | Yes |
| Autonomy | >1 month (at 8 h/day, 5 days/week) |
| Data logger | >1 000 000 events |
| Positioning | GPS and Altimeter (Optional) |
| Logging Interval | 1 second to 60 minutes (adjustable by user) |
| Averaging Interval | 1 second to 60 minutes (adjustable by user) |
| Battery Type | 2 x AA NiMH battery rechargeable by USB |
| Protection | IP 54 |
| Temperature range | -20 / +50 ºC (-4 / +122 ºF) - Charging: 0 / +40 ºC (+32 / + 104 ºF) |
| Size | 174 x 42.5 x 33 mm (6.8 x 1.7 x 1.3 ’’) |
| Weight | 190 g (6.7 oz.) |
