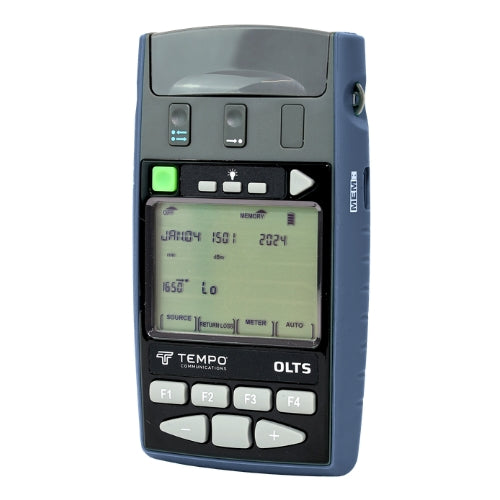

Ultra-Stable Two-Way Loss, Length & ORL Tester
DESCRIPTION
A Quad Two-Way Optical Loss Test set / OLTS fiber tester that’s perfect for medium to ultra high fiber count loss, length & optical return loss testing applications on both multimode and single mode fiber with APC connectors on both ports at 850 / 1330nm 1310/1550 nm. A pair of these compact SM & MM instruments set new standards of productivity, ultra-stable source accuracy and ease of use. A multimode APC connector on this model is required for reliable ORL test performance.
Each fiber needs just one test hook-up and one key press for a complete bidirectional loss, length & ORL test, and the same test method is used for both multimode and single mode fiber, eliminating administration, training and test errors. Testing is accurate and can take only 5 seconds, direct onto flexible standards-compliant Tier 1 certification reports.
The optical fiber length measurement feature is accurate, integrated with the other measurements, and requires only one fiber to be hooked up.
A pair of instruments both display length, bi-directional loss & ORL each end in real time, with no need to specify master/slave instruments. A single OLTS instrument can also be used as a stand-alone ultra-stable light source, power meter, ORL meter or tone generator / detector.
OVERVIEW
- 25% of the size / weight, 7x the battery life of competitors
- Bidirectional Autotest loss, length & ORL testing on one fiber
- Full-feature optical return loss tester
- Real time Pass / Fail display
- 8,000 fiber memory and USB Flash Drive file dump
- KITS™ reporting software
- Autotest optical power meter, >25 λ, 1 % accuracy
- Traceable calibration reports: power meter & linearity, source λ & stability, ORL
- 80 hr alkaline battery life
- 3 Year warranty and calibration cycle
- EF compliant multimode sources
- Made in Australia
DOCUMENTS
User Manual KI23400 Two Way content Rev14
SPECIFICATIONS
| Attribute Name | Attribute Value |
|---|---|
| Output wavelength (source) | Port 1: 1310, 1550 nm Laser APC / Port 3: 850, 1300 nm LED APC |
| Output power (source) | -3 dBm ±1 dB (@ 9/125 µm for 1310, 1550 m) / -23 dBm ±1 dB (@ 62.5/125 µm for 850, 1300 nm) |
| Adjust output power (source) | Adjustable over 7 dB in 0.01 dB steps (for 1310, 1550 nm) / Fixed (for 850, 1300 nm) |
| Short term stability for 15 min, typical ±2 °C, after warm up, ORL < -25 dB (source) | 0.03 dB (for 1310, 1550 nm) / 0.01 dB (for 850, 1300 nm) |
| Stability over temperature (source) | 0.2 dB (max for 1310, 1550 nm) / 0.35 dB (max for 850, 1300 nm) |
| Wavelength initial tolerance @ 25 °C (source) | 20 nm (for 1310, 1550 nm) |
| Wavelength drift (source) | 0.4 nm per °C (typical for 1310, 1550 nm) / 0.4 nm per °C (typical for 850, 1300 nm) |
| Mode controlled (source) | 850, 1300 nm (50/125µm compliant: IEC 61280-4-1 {Ed.1.0}, TIA 526-14A & TIA TSB-178) |
| Spectrum width @ FWHM (source) | 3 nm (typical for 1310, 1550 nm) |
| Reconnection repeatability @ 95% confidence (source) | 0.1 dB (for 1310, 1550 nm Laser) / 0.05 dB (for 850, 1300 nm LED) |
| Length range (2-way Autotest only) | 6 dB @ 62.5 µm (for 850, 1300 nm) / 30 dB (for 1310, 1550 nm) |
| Length accuracy (2-way Autotest only) | 0.01% ± 4 meters |
| Length resolutions | 1 meter (0.000~9.999 Km), 10 meters (10.00~99.99 Km), 100 meters (100.0~127.9 Km) |
| Loss range (2-way Autotest) | 27 dB @ 62.5 µm (for 850, 1300 nm) / 47 dB (for 1310, 1550 nm) |
| Loss repeatability & loss linearity (2-way Autotest) | 0.06 dB (for 850, 1300 nm) / 0.04 dB (for 1310, 1550 nm) |
| Loss range (1-way Autotest) | 27 dB @ 62.5 µm (for 850, 1300 nm) / 47 dB (for 1310, 1550 nm) |
| Loss repeatability & loss linearity (1-way Autotest) | 0.06 dB (for 850, 1300 nm) / 0.04 dB (for 1310, 1550 nm) |
| ORL range | 0 ~ >60 dB (1310, 1550 nm) / 0 ~ 30 dB @ 62.5 µm |
| ORL port isolation | > 60 dB (1310, 1550 nm) / > 25 dB (850, 1300 nm) |
| ORL resolution | For 1310, 1550 nm: 0.01 dB (@ 0 ~ 50 dB), 0.1 dB (@ 50 ~ 65 dB) / For 850, 1300 nm: 0.01 dB (@ 0 ~ 30 dB), 0.1 dB (@ 30 ~ 45 dB) |
| ORL accuracy | 0.2 dB |
| Detector type (meter) | InGaAs |
| Response wavelength (meter) | 600 ~ 1700 nm |
| Calibration wavelengths (meter) | 780, 820, 850, 980, 1270, 1290, 1300, 1310, 1330, 1350, 1370, 1390, 1410, 1430, 1450, 1470, 1490, 1510, 1530, 1550, 1570, 1590, 1610, 1625, 1650 nm |
| Accuracy (meter) | 1 % (0.06 dB) |
| Mid-range linearity (meter) | 0.04 dB (typical) |
| Power range (meter) | +10 ~ -60 dBm (780 ~ 980, 1590 ~ 1650 nm) / +10 ~ -70 dBm (1270 ~ 1650 nm) |
| Total uncertainty (meter) | 0.3 dB (max) |
| Resolution (meter) | 0.01 dB |
| Polarization sensitivity (meter) | < 0.05 dB (typical) |
| ID tone detection & Autotest sensitivity (meter) | Up to -50 dBm |
| Autotest: | 1-way: compatible with other T23400 & T27400 models / 2-way: compatible with identical model only |
| Tone detection (meter) | 150 ~ 9999 Hz ± 1 % |
| USB interfaces | micro-USB for power & software / USB-A Flash Drive |
| Software | KITS (free download) |
| Power | Battery / External power via micro-USB |
| Battery life | Laser/LED source: 80 hours (typical) in Autotest, Power Meter: 1000 hours (typical) |
| Battery type | 2x AA (LR6) Alkaline / 2x AA NiMH AA (rechargeable via micro-USB) |
| Auto off | Selectable |
| Display | 74 mm x 55 mm high contrast LCD |
| Case | Polycarbonate (body) / rubber (edges & corners), moisture resistance, 1-meter drop tested |
| Memory | For 8,000 fibers / Unlimited on USB Flash Drive |
| Size | 190 mm x 105 mm x 35 mm |
| Unit weight | 0.42 kg |
| Shipping weight | 1.5 Kg |
| Operating / storage temperature | -15 to 55 °C / -25 to 70 °C |
| Relative humidity | 0 ~ 95 % |
| Warranty | 3 years |
| Calibration validity (ISO/IEC 17025) | 3 years |
| Country of Origin | Australia |
| Warranty | 3 years |
| Calibration validity (ISO/IEC 17025) | 3 years |
| Country of Origin | Australia |
