TEMPO | TRACING KIT, DIGITAL HIGH-PERFORMANCE | #811K
TEMPO COMMUNICATIONS | PART #AT8LK
TRACING KIT, DIGITAL HIGH-PERFORMANCE
DESCRIPTION

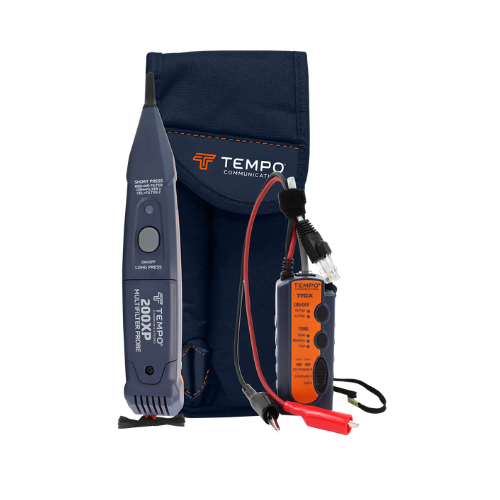

The 811K Digital High-Performance Tracing Kit is a wire and pair tracing tool that is both universally compatible and virtually noise-immune. Whether tracking wires in a clear and quiet location or trying to find a wire in an area roaring with power hum and digital crosstalk, the 200XP probe and 77GX tone generator work efficiently. The tracing pair is also capable of working with any older type of conventional tone probes and tone generators.
-
Patented - Patent #6946850
OVERVIEW
- Trace wire pairs or cables even in areas with high electrical noise levels.
- Very high performance together, still work with all older tracing equipment.
- Crystal-controlled digital signal processing (DSP( accuracy.
- Single-button probe function control.
- Power hum melts away with the press of a button.
- 3.5 mm headset jack
- Uses AA cells for lower cost & longer life
- Clear real-time signal strength indication
- Selectable power output levels in generator permit tailoring to application.
- Two-line telephone service indication.
- Short circuit check.
- Tone generator offers modular plug, modular jack or alligator clip connection.
- 811K/6A includes ABN (angled bed of nails) clips
- Three selectable tone sending patterns.
- Auto-off battery saver function for probe (5 min) and generator (4 h).
- Low battery indication.
SPECIFICATIONS
| Attribute name | Attribute Value |
|---|---|
| Application | For Tracing In Noisy Environments |
| Type | Digital |
| Item Status Date | 08242007 |
| Country of Origin | US |
| UNSPSC | 41113740 |
| International Harmonize Code | 9030400000 |
| RoHS Indicator | U |
| MSDS Update Flag | N |
Common Questions About the Tempo AT8LK Digital High Performance Tracing Kit
What is the Tempo AT8LK Digital High Performance Tracing Kit used for?
The Tempo AT8LK is designed to trace and identify wire pairs and cables, including in areas with high electrical noise, power hum, and digital crosstalk.
How does the Tempo AT8LK help trace wires in noisy environments?
The tracing system uses crystal controlled digital signal processing to help filter power hum and interference, making it easier to identify the correct wire or cable.
Can the Tempo AT8LK be used with older tone tracing equipment?
Yes. The tone generator and probe are compatible with conventional tone probes and tone generators, allowing technicians to use them with existing tracing equipment.
At a Glance
• Digital high performance kit for tracing wire pairs and cables
• Designed for reliable tracing in areas with high electrical noise
• Digital signal processing helps reduce power hum and interference
• Clear real time signal strength indication assists with wire identification
• Selectable generator power levels and three tone sending patterns
• Supports modular plug, modular jack, and alligator clip connections
