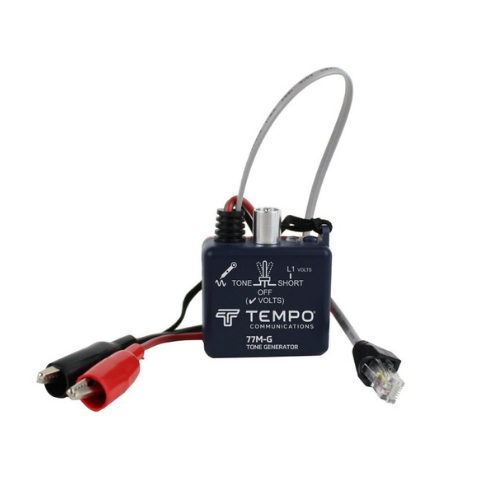

TEMPO | Tone Generator | #77M-G
TEMPO COMMUNICATIONS | PART #77M-G
Tone Generator
DESCRIPTION
The 77M-G Classic Series Tone Generator permits technicians to identify the conductor within a bundle, at a cross-connect point, or at the remote end.
It can be used on twisted pair wiring (telecom, datacom, etc.), single conductors, coaxial cables, de-energized AC wiring and most other wiring.
SPECIFICATIONS
| Attribute name | Attribute Value |
|---|---|
| Application | For Twisted Pair Wiring (Telecom, Datacom, etc.), Single Conductors, Coaxial Cables, De-Energized AC Wiring And Most Other Wiring |
| Package | Clamshell Pack |
| Type | Classic 77 Series |
| Item Status Date | 10152010 |
| Country of Origin | US |
| UNSPSC | 41113740 |
| International Harmonize Code | 9030400000 |
| RoHS Indicator | U |
| MSDS Update Flag | N |
Common Questions About the Tempo 77M-G Classic Series Tone Generator
What is the Tempo 77M-G Classic Series Tone Generator used for?
The Tempo 77M-G is a professional tone generator designed to help technicians identify and trace wires within cable bundles, at cross-connect points, or at remote locations. It is commonly used for telecommunications, networking, and electrical troubleshooting applications where accurate wire identification is essential.
What types of cables can the Tempo 77M-G Tone Generator be used with?
The 77M-G is compatible with twisted pair wiring, single conductors, coaxial cables, de-energized AC wiring, and many other wiring types. This versatility makes it useful for telecom, datacom, structured cabling, and general wire tracing applications. AC wiring must be de-energized before testing.
How does the Tempo 77M-G help technicians identify wires and cables?
The 77M-G sends a tracing tone through a connected conductor, allowing technicians to identify the corresponding wire using a compatible tone probe. This helps locate specific conductors within crowded cable bundles, identify connections at cross-connect points, and trace wiring to remote termination locations.
At a Glance
• Professional Classic 77 Series tone generator for wire and cable identification
• Helps trace conductors within cable bundles, cross-connect points, and remote locations
• Compatible with twisted pair telecom and datacom wiring
• Suitable for single conductors, coaxial cables, and de-energized AC wiring
• Works with a compatible tone probe for efficient wire identification and troubleshooting
• Made in the USA and supplied in clamshell packaging
