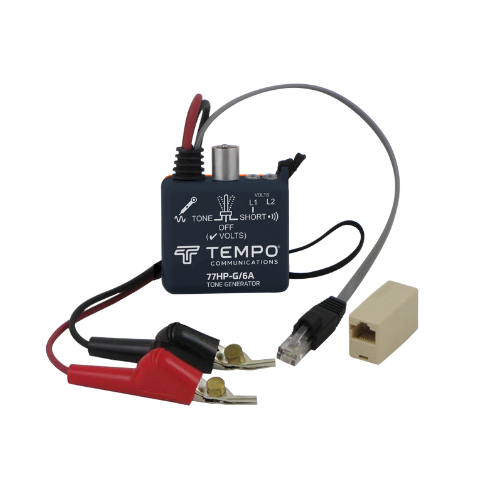

TEMPO | Tone Generator | #77HP-G/6A
TEMPO COMMUNICATIONS | PART #77HP-G/6A
Tone Generator
DESCRIPTION
The Tempo 77HP-G / 77HP-G/6A (with ABN Clips) Tone Generator creates a powerful audio frequency tracing tone (two selectable tones) that can be detected using a Tempo tone probe such as 200EP-G, permitting technicians to quickly identify the conductor within a bundle, at a cross-connect point or at the remote end. Can be used on twisted pair wiring (telecom, datacom, etc.), single conductors, coaxial cables, de-energized AC wiring, and most other de-energized or low-voltage wiring.
Includes an audible continuity buzzer and “dual-line” polarity indication.
OVERVIEW
- Twisted pair wiring (telecom, datacom)
- Single conductors
- Coaxial cables
- De-energized AC wiring
- Most other wiring
SPECIFICATIONS
| Attribute name | Attribute Value |
|---|---|
| Application | For Twisted Pair Wiring (Telecom, Datacom, etc.), Single Conductors, Coaxial Cables, De-Energized AC Wiring And Most Other Wiring |
| Package | Clamshell Pack |
| Type | Classic 77 Series |
| Item Status Date | 10152010 |
| Country of Origin | US |
Common Questions About the Tempo 77HP-G/6A Tone Generator
What is the Tempo 77HP-G/6A Tone Generator used for?
The Tempo 77HP-G/6A generates a powerful tracing tone that helps technicians identify and trace conductors within bundles, at cross connect points, or at remote ends of cable runs.
What types of wiring can the Tempo 77HP-G/6A be used on?
The 77HP-G/6A can be used with twisted pair telecom and datacom wiring, single conductors, coaxial cables, de-energized AC wiring, and most other de-energized or low voltage wiring.
Does the Tempo 77HP-G/6A provide continuity and polarity testing?
Yes. The 77HP-G/6A includes an audible continuity buzzer and dual line polarity indication in addition to its tone generation capabilities.
At a Glance
• Generates a powerful audio frequency tone for wire and cable tracing
• Two selectable tones support accurate conductor identification
• Works with twisted pair, single conductor, and coaxial cable applications
• Suitable for de-energized AC and most low voltage wiring
• Audible continuity buzzer provides quick continuity checks
• Dual line polarity indication assists with telecom troubleshooting
