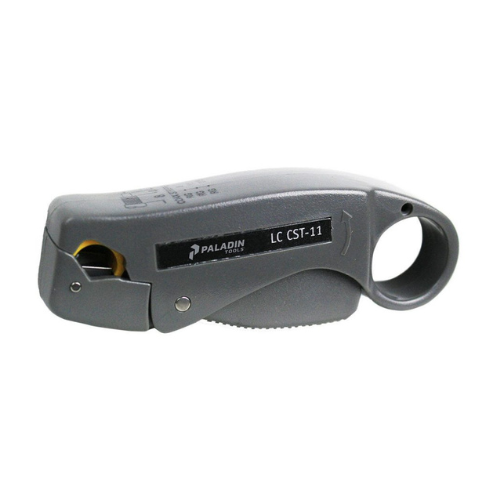

TEMPO | STRIPPER LCCST-8/11/213 COAX | #PA1256
TEMPO COMMUNICATIONS | PART #PA1256
STRIPPER LCCST-8/11/213 COAX
DESCRIPTION
The Paladin Stripper LCCST offers:
- Self-regulating tension
- Adjust cutting depth on each blade for varying cable thicknesses with the included hex key
- Pre-set for common strip lengths
- Blades adjust for strip dimensions other than our standard pre-set units
SPECIFICATIONS
| Attribute name | Attribute Value |
|---|---|
| Application | For RG8, RG11 And RG213 |
| Blade Type | Adjustable |
| Preset Strip Length | 0.315 IN Outer Jacket, 0.157 IN Inner Dielectric |
| Replacement Part | PA2263 Replacement Blade |
| Type | LC CST, 2 And 3 Level, Adjustable |
| Item Status Date | 01012009 |
| Country of Origin | TW |
| UNSPSC | 43223312 |
| International Harmonize Code | 8205595510 |
| RoHS Indicator | U |
| MSDS Update Flag | N |
Common Questions About the Tempo PA1256 LC CST Coax Stripper
What is the Tempo PA1256 LC CST Coax Stripper used for?
The Tempo PA1256 is a professional coaxial cable stripper designed for preparing RG8, RG11, and RG213 coaxial cables. Its adjustable cutting blades and self-regulating tension help technicians achieve precise, consistent cable stripping for telecommunications, broadband, and coaxial cable installations.
What are the preset strip lengths on the Tempo PA1256?
The PA1256 is preset for a 0.315-inch outer jacket strip length and a 0.157-inch inner dielectric strip length. These preset dimensions help technicians prepare compatible coaxial cables quickly and consistently.
Can the cutting blades on the Tempo PA1256 be adjusted or replaced?
Yes. The PA1256 features individually adjustable blades that can be set using the included hex key to accommodate different cable thicknesses and stripping dimensions. The tool uses the Tempo PA2263 replacement blade for continued performance.
At a Glance
• Professional LC CST coaxial cable stripper designed for RG8, RG11, and RG213 cables
• Self-regulating tension helps provide consistent cable jacket stripping
• Preset for 0.315-inch outer jacket and 0.157-inch inner dielectric strip lengths
• Individually adjustable blade depths accommodate varying cable thicknesses
• Included hex key allows adjustments beyond standard preset stripping dimensions
• Compatible with Tempo PA2263 replacement blades for continued tool performance
