TEMPO | Stripper/Cutter Stripax Pro 6 | #PA1113
TEMPO COMMUNICATIONS | PART #PA1113

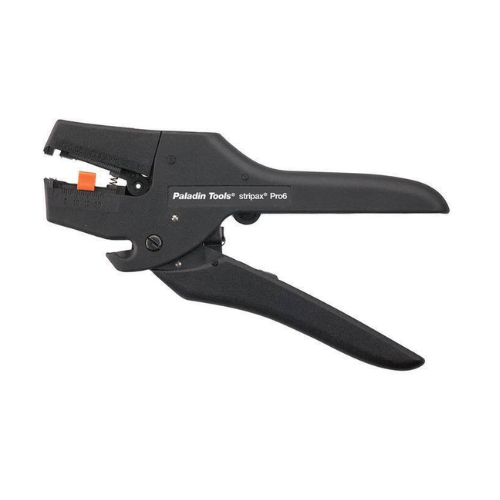

Stripper/Cutter Stripax Pro 6
DESCRIPTION
- Now for THHN and THHW industrial insulations. The original stripax set the industry standard for precision stripping for a decade. The new stripax Pro 6 and Pro 16 perform powerful stripping of standard and industrial insulations for a wire range of 28-10 AWG (.08-6 mm2) and 10-6 AWG (6-16 mm2) respectively. The ergonomically designed, contoured handles let you hold the tool in a natural position so stripping is comfortable and requires less effort.
- Consistently strips heavy-duty and industrial insulations including THHN & THHW
- Strips standard insulations including PVC, rubber and silicone
- Provides nick-free stripping of insulation with no damage to conductors
- Built-in cutter provides a smooth, straight cut without distorting the conductor
- Fine adjustment slider on top of tool lets you adjust to the insulation thickness
- Handles designed for comfort and require low hand force
- Not for Teflon® or Kapton hard insulations (use part number PA1115P mini-stripax Plus with a Teflon® blade for these insulations)
- Perfect companion for any of our wire ferrule crimpers
- Strippers carry a lifetime warranty
- Blade warranty is one year for defects only
Teflon® is a registered trademark of DuPont.
SPECIFICATIONS
| Attribute name | Attribute Value |
|---|---|
| Application | For THHN And THHW Industrial Insulations |
| Handle Type | Contoured |
| Overall Length | 7.250 IN (185.000 MM) |
| Replacement Part | PA2113 stripax Pro 6 replacement stripping blade set |
| Stripping Range | 28 - 10 AWG (0.080 - 6.000 SQ-MM) |
| Sub Brand | stripax |
| Type | Pro 6 |
| Weight | 5.500 OZ (156.000 GM) |
| Item Status Date | 01202009 |
| Country of Origin | DE |
Common Questions About the Tempo PA1113 Stripax Pro 6 Stripper/Cutter
What types of wire insulation can the Tempo PA1113 Stripax Pro 6 strip?
The Tempo PA1113 is designed to strip heavy duty and industrial insulation including THHN and THHW, as well as standard PVC, rubber, and silicone insulation.
What wire sizes can the Tempo PA1113 Stripax Pro 6 handle?
The PA1113 handles wire sizes from 28 to 10 AWG, or 0.08 to 6.0 mm², making it suitable for a wide range of electrical and industrial wire preparation applications.
Does the Tempo PA1113 Stripax Pro 6 have a built in wire cutter?
Yes. The PA1113 features a built in cutter designed to produce a smooth, straight cut without distorting the conductor.
At a Glance
• Strips wire from 28 to 10 AWG, or 0.08 to 6.0 mm²
• Designed for THHN, THHW, PVC, rubber, and silicone insulation
• Provides nick free stripping without damaging conductors
• Fine adjustment slider accommodates different insulation thicknesses
• Built in cutter provides smooth, straight conductor cuts
• Contoured ergonomic handles require low hand force for comfortable use
