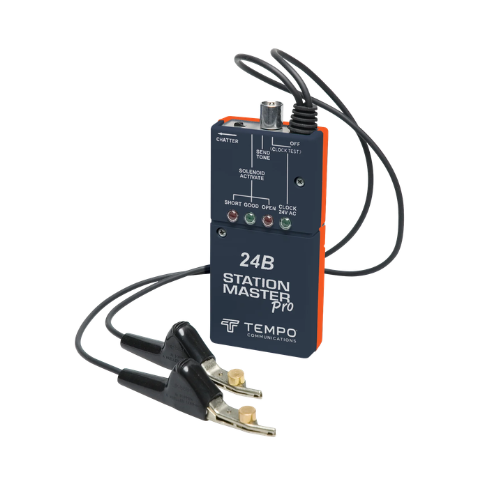

TEMPO | Station Master Pro | #24B
TEMPO COMMUNICATIONS | PART #24B
Station Master Pro
DESCRIPTION
The Station Master Pro is a battery-operated irrigation system diagnostic tester combining solenoid activation and wire identification. LEDs indicate if sufficient voltage is being supplied by the controller and the condition of the solenoid. The solenoid activation mode is used to activate valve solenoids either from the controller or at the valve, along with testing continuity of the solenoids. Chatter mode assists in locating the valve by ear. Tone generator helps identify wires when combined with inductive probe. The test leads allow the technician to connect the unit without cutting or stripping the wires.
OVERVIEW
- Troubleshoot irrigation systems
- Activate and cycle solenoids
- Test solenoids for continuity
- Send tone to identify wires
- Measure clock voltage
- Low battery indication
- Easy-to-understand LEDs
- Test leads with "Bed-of-Nails" and piercing Pin Clips
- 1-year limited warranty
SPECIFICATIONS
| Attribute name | Attribute Value |
|---|---|
| Battery | 9 V Alkaline |
| Battery Life | 3 HR Continuous |
| Includes | 700C Carrying Case |
| Maximum Distance Range To Activate One Solenoid | <ul><li>12 AWG Loop 3000.000 - 13000.000 FT</li><li> 14 AWG Loop 2000.000 - 8500.000 FT</li><li> 18 AWG Loop 500.000 - 3000.000 FT</li></ul> |
| Minimum Battery While Testing | 10.5 VDC |
| Minimum Voltage For Clock LED | 15 VAC |
| Replacement Part | 700C Carrying Case |
| Solenoid Circuit Recharge | 2.5 S |
| StorageOperatingTemperature | 32 - 122 DEG F |
| Sub Brand | Station Master |
| Voltage Rating | 28 VAC |
| Item Status Date | 01232007 |
| Country of Origin | US |
Common Questions About the Tempo 24B Station Master Pro
What is the Tempo 24B Station Master Pro used for?
The Tempo 24B is designed for troubleshooting irrigation systems by activating valve solenoids, testing solenoid continuity, checking controller voltage, and identifying irrigation wiring.
Can the Tempo 24B help locate buried irrigation valves?
Yes. The 24B features a chatter mode that cycles the solenoid on and off to help technicians locate buried valves by sound.
Can the Tempo 24B identify irrigation wires without stripping them?
Yes. The 24B generates a tracing tone for wire identification, while its bed of nails and piercing pin clips allow technicians to connect to insulated wires without cutting or stripping them.
At a Glance
• Diagnostic tester for troubleshooting irrigation systems
• Activates and cycles valve solenoids for testing and locating
• Tests solenoids for continuity and checks controller voltage
• Chatter mode helps locate buried irrigation valves by sound
• Tone generator assists with identifying and tracing irrigation wires
• Bed of nails and piercing pin clips connect without stripping wires
