TEMPO | Standard Tone & Probe Kit | #701K-G

Original price $100.36 - Original price $100.36
Original price
$100.36
$100.36 - $100.36
Current price $100.36

TEMPO COMMUNICATIONS | PART #701K-G

DESCRIPTION

Take your low-Voltage wiring game to the next level with Tempo’s line of tone generator and wire tracing probe kits – essential tools for today’s wiring technician. With superior functionality, these sophisticated kits allow you to check for voltage on low-voltage circuits like telephone, data, or security alarm connections and generate a tagging tone that is picked up by the probe – giving technicians unbeatable access to hard-to-find lengths of cable.

With warbling tones, this tone generator can be heard above any background noise on almost all types of wire or cable pairs. A power on LED light in the probe also assists in low visibility areas for precise connections during installations & repairs. Get yours today – it’s an essential tool for your arsenal!

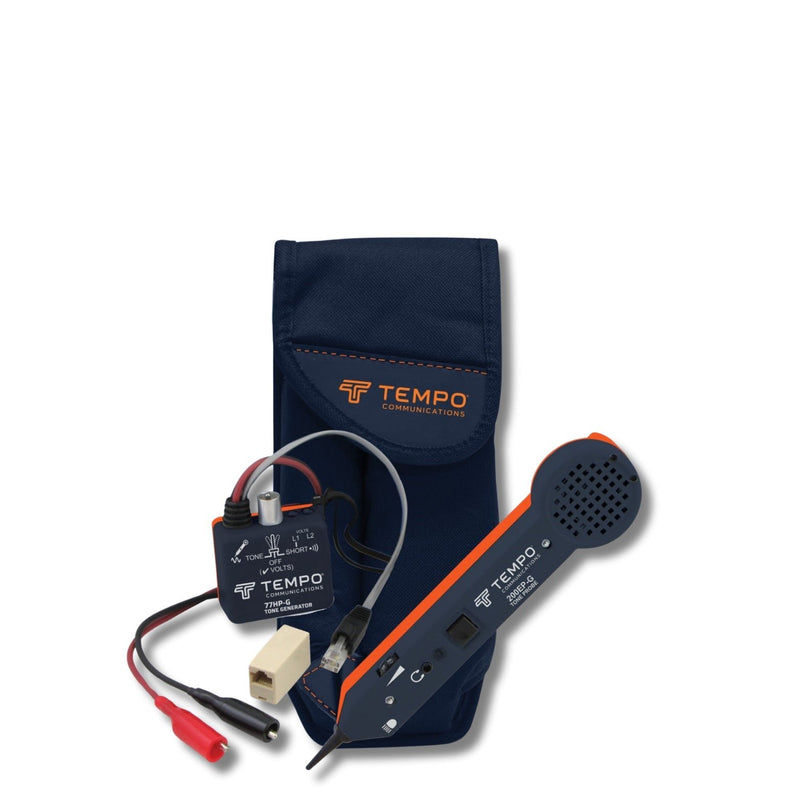

The Tempo Communications 701K-G Kit includes a 77HP-G High Power Tone Generator, 200EP Tone Probe Amplifier, and a Rugged, Woven Nylon Carrying Case (700C). The industry-leading 701K-G allows professional technicians to identify wires from a bundle, monitor voltage passing through the circuit, check breaks in the circuit, and trace wires through walls. The generator tone injects a signal onto the cable to be traced and the tracing probe is used to trace out the wire.

Featuring overall improved internal circuitry in both the amplifier and the tone generator, all of Tempo’s tone probe kits promise to provide an enhanced customer experience for tracing and identifying single conductors or cables within bundles, either at the midpoint or at remote ends. All tone and probe kits are assembled in the USA and are CE certified. When it comes to superior tracing capability, TEMPO’s tone and probe kits are faster, safer, and easier than ever before.

OVERVIEW

  • Tone and probe tracing for voice, data, and video wiring

  • Easy to operate for quick testing

  • Reliable and rugged design

  • Large speaker for noisy environments

  • Includes a tone generator and a tone probe amplifier (different between models)

  • Comes in a sturdy nylon pouch, or woven nylon carrying case (different between models)

  • Identify wires in multi-pair cable

  • Polarity indication of telephone lines

  • Continuity test

  • Adjustable Gain Control

  • Voltage protection

  • Long lasting battery

SPECIFICATIONS



Attribute Name Attribute Value
Probe Specifications 200EP-G
Gain 30 db
Impedance 100 MOHM
Metal Tip Resistance 0 OHM
Plastic Tip Resistance 300 OHM
Battery One 9 VDC (NEDA 1604, // JIS 006P, or IEC 6LR61)
Battery Life > 50 Hours
Dimensions 231 mm (9.0”) x 55 mm (2.2”) x 28 mm (1.1”)
Weight 145 g (5.2 oz)
Operating Temperature 0 °C to 50 °C (32 °F to 122 °F)
Tone Specifications 77HP-G
Talk Battery 4.6 VDC
Output Power +10 dBm
Resistive Short Visual Indication < 10 KOHM
Resistive Short Audio Indication < 200 OHM
Output Alternating-890/960 Hz
Voltage Protection 150 VDC




DOCUMENTS

701K-G Tone & Probe Tracing Datasheet
