TEMPO | OPM520 & SLS536 (SINGLEMODE KIT, MSO, LIVE 1650) | #SM T 1650 KIT HP
TEMPO COMMUNICATIONS | PART #SM T 1650 KIT HP
OPM520 & SLS536 (SINGLEMODE KIT, MSO, LIVE 1650)
DESCRIPTION
The Tempo Communications optical power meters are available in standard and high-power versions for the Telco and MSO markets. Absolute and referenced power measurements ensure fast and accurate loss budget and insertion loss measurements. When placing tones on the fiber using a Tempo Communications source provides the optical power meter will definitively identify fiber optic cables.
The OPM510 and OPM520 supports calibrated wavelengths of 850, 980, 1270 1300, 1310, 1490, 1550, 1577, 1623 and 1650nm.
The Tempo Communications fiber optic sources are available in dual and triple wavelength lasers and a dual wavelength LED. Accurate insertion loss measurements are possible when used in conjunction with the Tempo Communications optical power meters. When placing tones on the fiber the Tempo Communications optical power meter will quickly identify the fiber.
The ruggedized IP54 compliant package provides test confidence when testing singlemode and multimode networks. See the Models tab for more details.
The Tempo Communications optical power meters and sources can be ordered in various kits for specific applications.
Various accessories such as optical adapters, power supply and carry cases that can be ordered separately.
OVERVIEW
- Dual and triple lasers available
- Out of band testing at 1625nm and 1650nm
- 270Hz, 1kHz and 2kHz tone
- PC flat polish interface
- Each source is supplied with one SC/PC adapter for each bulkhead
Using_the_fiberTOOLS_sources_and_detectors.pdf
Common Questions About the Tempo SM T 1650 Kit HP
What is the Tempo SM T 1650 Kit HP used for?
The Tempo SM T 1650 Kit HP is used for optical power measurement, insertion loss testing, and fiber identification on singlemode networks, including MSO and live fiber applications at 1650 nm.
What equipment is included in the SM T 1650 Kit HP?

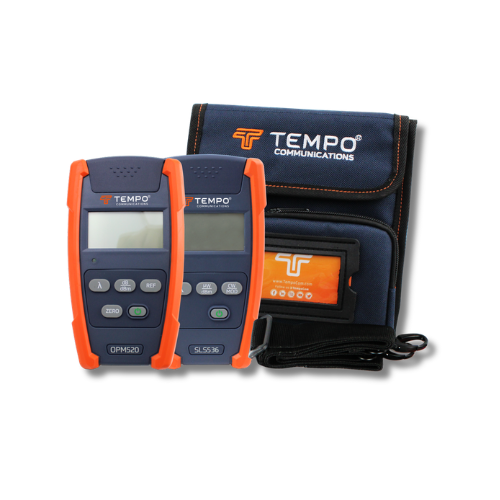

The kit combines the Tempo OPM520 High Power Optical Power Meter with the SLS536 Triple Laser Source for singlemode fiber optic testing.
What wavelengths does the SLS536 provide?
The SLS536 provides 1310 nm, 1550 nm, and 1650 nm laser wavelengths, allowing technicians to perform standard singlemode testing as well as out of band testing at 1650 nm.
At a Glance
• OPM520 High Power Optical Power Meter and SLS536 Triple Laser Source kit
• 1310 nm, 1550 nm, and 1650 nm singlemode testing
• Designed for MSO and live fiber testing applications
• Supports optical power, insertion loss, and fiber identification testing
