TEMPO | SLITTER CABLE 0.18-1.40 INCH CLAMSHELL | #PA1822
TEMPO COMMUNICATIONS | PART #PA1822

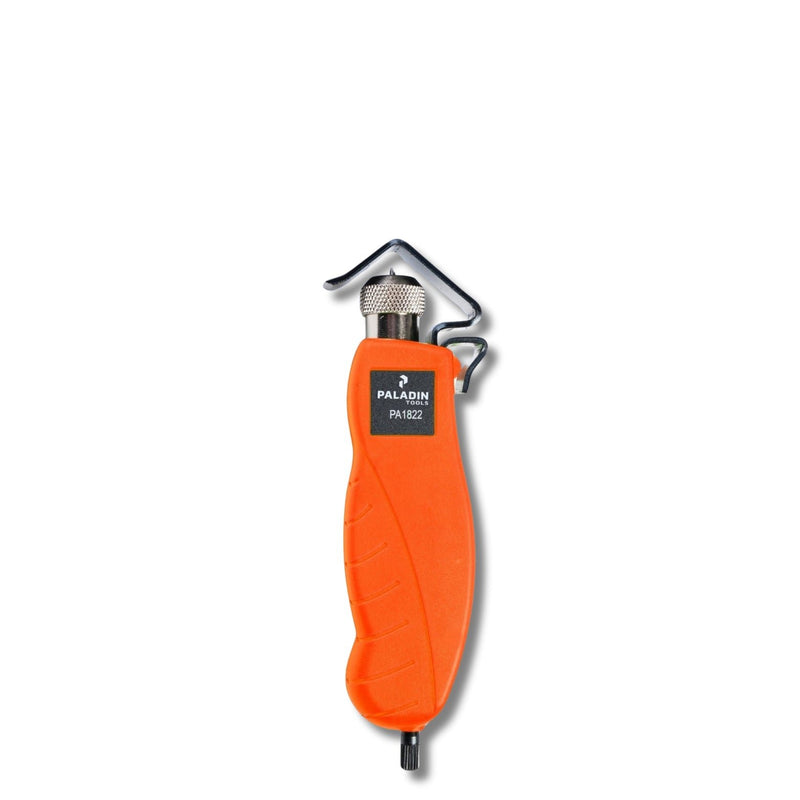

SLITTER CABLE 0.18-1.40 INCH CLAMSHELL
DESCRIPTION
The Tempo Communications PA1822 Universal Slitter eliminates the need for 2 tools. It works with .18″ – 1.0″ (4.5 – 25 mm) diameter round cables
OVERVIEW
-
Strips and slits 0.18 IN to 1.0 IN (4.5-25mm) diameter Round Cables
-
Precision stripping and slitting of rubber, PVC, nylon and most insulation materials
-
Adjustable depth of cut
-
Circumferential, longitudinal and spiral cuts
-
Cable is supported during use
-
Cable support arm edge is used to pry off thick insulation
-
Laser-trimmed, stainless-steel blade for long use
-
A perfect tool for mid-point taps
SPECIFICATIONS
| Attribute Name | Attribute Value |
|---|---|
| Application | For Slitting Of Rubber, PVC, Nylon And Most Insulation Materials |
| Capacity | 0.180 - 1.000 IN (4.500-25.000 MM) Diameter Round Cables |
| Material | Stainless Steel Blade |
| Overall Length | 5.700 IN (145.000 MM) |
| Replacement Part | PA2109 Replacement blade |
| Type | Universal |
| Weight | 7.000 OZ (200.000 GM) |
| Item Status Date | 01012009 |
| Country of Origin | TW |
DOCUMENTS
PA1822 Universal Slitter Datasheet
Common Questions About PA1822 Universal Cable Slitter
A universal cable slitter is used to safely strip and slit round cables by making controlled circumferential, longitudinal, or spiral cuts.
What cable sizes does the PA1822 support?
The PA1822 supports round cables ranging from 0.18 inch to 1.0 inch in diameter, making it suitable for a wide range of applications.
What types of insulation can this slitter handle?
The PA1822 is designed to cut through rubber, PVC, nylon, and most common cable insulation materials.
Is the depth of cut adjustable?
Yes, the PA1822 features an adjustable depth of cut to help prevent damage to internal conductors or fibers.
At a Glance
• Slits and strips 0.18 to 1.0 inch round cables
• Adjustable cutting depth
• Supports circumferential, longitudinal, and spiral cuts
• Stainless steel blade for long service life
• Cable support arm for safer handling
• Ideal for mid point cable access
