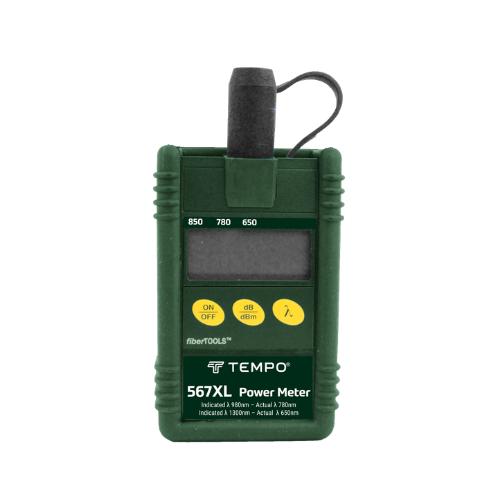

TEMPO | Silicon Fiber Optic Power Meter | #567XL
TEMPO COMMUNICATIONS | PART #567XL
Silicon Fiber Optic Power Meter
DESCRIPTION
The Special Launch Condition Sources and Optical Power Meter XL fiberTOOLS™ are designed for the professional to perform installation and maintenance measurements on both Plastic & Glass fiber optic networks. The instrument family consists of Stabilized Light Sources with stringent Launch Conditions and a large area detector OPM for the Avionics, Defense Industries and Research Laboratories.
OVERVIEW
- Stable calibrated output
- Easy to use
- Continuous wave and modulated output
- Long battery life - approximate 24 Hours
- User-selectable auto shut-off
- Rugged and splash-proof
- Economically priced
*Snap-On Connector Interface Adapts To FC, SC, and ST Connectors for 567XL and 573XL-UNIV. *Customer to select and order for each instrument.
*Universal Connector Interface Adapts TO FC, SC and ST Connectors for 577XL and 578XL. *Customer to select and order for each instrument.
XL Fiber Tool Kits Series Brochure 02 26
XL fiber TOOLS Declaration of Conformity
SPECIFICATIONS
| Attribute Name | Attribute Value |
|---|---|
| Output wavelength | 1310, 1550 nm Laser |
| Output power (@ 9/125 µm, adjustable over 3 dB in 0.1 dB steps) | 0 dBm ±1 dB |
| Short term stability (for 15 min, typical ±2 °C, after warm-up, @ ORL < -25 dB) | 0.04 dB |
| Stability over temperature | 0.6 dB (typical) |
| Wavelength initial tolerance (@ 25 °C) | 20 nm |
| Spectrum width (FWHM) | 3 nm (typical) |
| Wavelength drift | 0.4 nm /°C (typical) |
| Reconnection repeatability (95% confidence) | 0.1 dB |
| Calibration validity (ISO/IEC 17025) | 3 years |
| Modulation | 270 Hz, 1 kHz, 2 kHz ±2 % |
| Multi-fiber ID | 12 fibers |
| Autotest | Compatible with KI Autotest power meter port & matching λ |
| Power | 2 x AAA (LR-03) Alkaline |
| Battery life | Laser/LED source: 40/35 hours (typical) in Autotest |
| Auto off | Selectable |
| Case | Polycarbonate with captive dust cap, 2.5-meter drop tested |
| Size | 124 mm x 81 mm x 25 mm |
| Unit weight | 0.15 kg |
| Shipping weight | 0.3 kg |
| Operating / storage temperature | -15 to 55 °C / -25 to 70 °C |
| Relative humidity | 0 ~ 95% |
| Warranty | 3 years |
| Country of Origin | Australia |
Common Questions About the Tempo 567XL Silicon Fiber Optic Power Meter
What is the Tempo 567XL Silicon Fiber Optic Power Meter used for?
The Tempo 567XL is used to perform optical power measurements during the installation, testing, and maintenance of plastic and glass fiber optic networks.
Who is the Tempo 567XL designed for?
The 567XL is designed for fiber optic professionals working with specialized plastic and glass fiber networks, including applications in avionics, defense, research laboratories, and other technical environments.
What connector types can be used with the Tempo 567XL?
The 567XL uses a Snap On Connector Interface that can adapt to FC, SC, and ST fiber optic connectors with the appropriate connector interface selected separately.
At a Glance
• Silicon optical power meter for plastic and glass fiber networks
• Designed for installation and maintenance measurements
• Snap On Connector Interface supports FC, SC, and ST connectors
• Rugged, splash proof design for professional fiber testing
