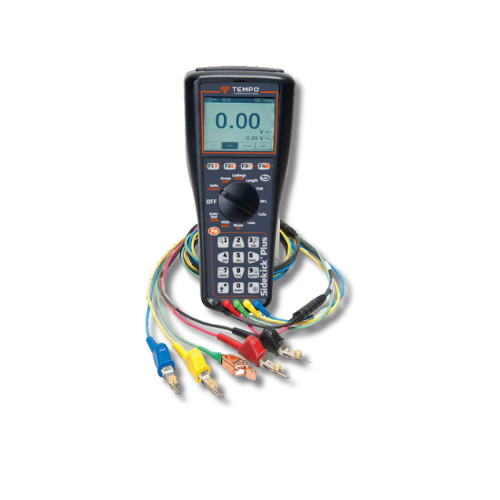

TEMPO | Sidekick Plus Wideband | #1155-5009
TEMPO COMMUNICATIONS | PART #1155-5009
Sidekick Plus Wideband
DESCRIPTION
The 1155-5009 Sidekick® Plus Wideband Copper and DSL Test Set helps technicians diagnose and troubleshoot problems with twisted pair cable. Easily install, qualify, and maintain DSL services.
Patented – Patent #6263047, 6621562, 7710122, 8232807, 8237459, 2710639, 2282499, 8564302
OVERVIEW
- Saves time. Easy-to-use mode selection dial and operation - minimizes training needs and saves time on the job.
- Versatile. Combines your copper qualification needs with DSL sync and service testing in one test set.
- Fully loaded. The Sidekick® Plus xDSL comes complete with all you need to perform tests on the copper networks that support DSL services.
- No modules needed – Advanced cable diagnosis and troubleshooting in a single test set
- Advanced Dual Trace Pulse TDR (Zero Dead Zone)
- Resistive Fault Locator (Detects up to 20MΩ)
- 1GΩ Leakage Test (Insulation Resistance)
- Longitudinal Balance Test
- Ground Resistance Test
- Quite Line Noise (QLN) Test
- Stress Test
- AC/DC Voltage
- Resistance
- Open Meter
- Loop Current
- Circuit Loss
- Tracing Tone Generator
- Reference Tone
DOCUMENTS
TC5973 Side Kick Plus Cable Maintenance Test Sets
SPECIFICATIONS
| Attribute Name | Attribute Value |
|---|---|
| Stress Test | 0 to 82 dBrnC |
| AC Voltage | 250V |
| DC Voltage | 300V |
| Resistance | 100 Mohm |
| Leakage | 999 Mohm |
| Open Meter | Up to 18.6 miles (30 km) |
| Load Coil | 0 to 5 |
| Loop Current | 110 mA |
| Circuit Loss | -70 to 3 dBm |
| Circuit Noise | 0 to 90 dBrnC |
| Tracing Tone Generator | 200 Hz to 20 kHz |
| Reference Tone Output Level | 3 to -20 dBm |
| Custom Auto Test with Pass / Fail | 400 Autotest Results |
| Display | 320 x 240 sunlight readable |
| Battery | Li-Ion |
| Battery Life | 8 hours |
| Weight | 3 lbs (1.4 kg) |
Common Questions About the Tempo Sidekick Plus Wideband
What is the Tempo Sidekick Plus Wideband used for?
The Tempo Sidekick Plus Wideband is used to diagnose and troubleshoot twisted pair copper cable while installing, qualifying, and maintaining DSL services.
Who is the Sidekick Plus Wideband designed for?
This test set is designed for telecommunications technicians and field service professionals who need advanced copper cable diagnostics and DSL service testing in a single instrument.
What testing capabilities are included in the Sidekick Plus Wideband?
The Sidekick Plus Wideband combines dual trace TDR testing, resistive fault locating, leakage testing, longitudinal balance, ground resistance, quiet line noise, stress testing, voltage, resistance, loop current, circuit loss, and tone generation.
At a Glance
• Wideband copper and DSL troubleshooting test set
• Advanced dual trace pulse TDR with zero dead zone
• Resistive fault locator detects faults up to 20 MΩ
• Tests leakage, noise, resistance, voltage, loop current, and circuit loss
