TEMPO | Pulser Fault Locator | #PE2003-G
TEMPO COMMUNICATIONS | PART #PE2003-G
Pulser Fault Locator
DESCRIPTION

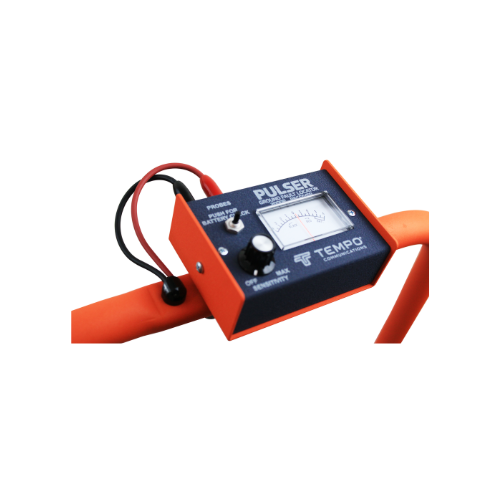

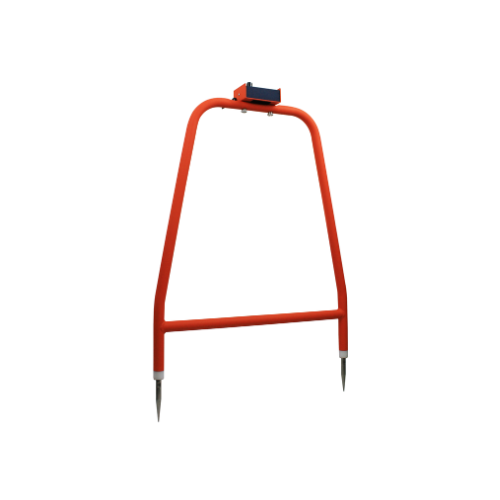

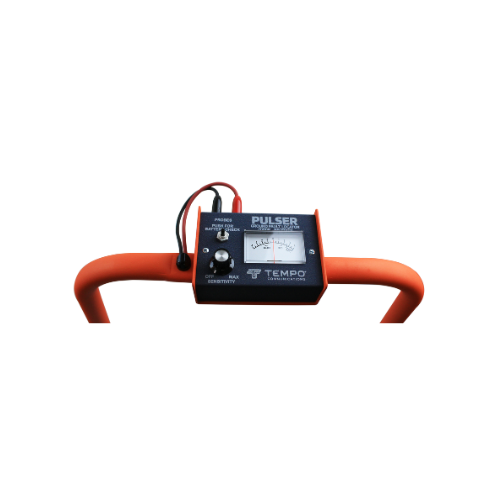

The TEMPO Communications PE2003-G Pulser Ground Fault Locator identifies the exact location of even the smallest breaks in buried wire and cable insulation by “pulsing” a high-voltage signal that radiates into the ground at the location of the faults. With the A-frame mounted receiver, a visual analog meter points the way to the source of the voltage.
OVERVIEW
- Identifies the exact location of even the smallest breaks in insulation by "pulsing" a high-voltage signal that radiates into the earth at the location of the faults. With the A-frame mounted receiver, a visual analog meter points the way to the source of the voltage
- Multiple faults on a single wire can be identified indicating the need to replace instead of repair
- Extra-long test leads feature heavy-duty alligator clips for use on multiple cable types

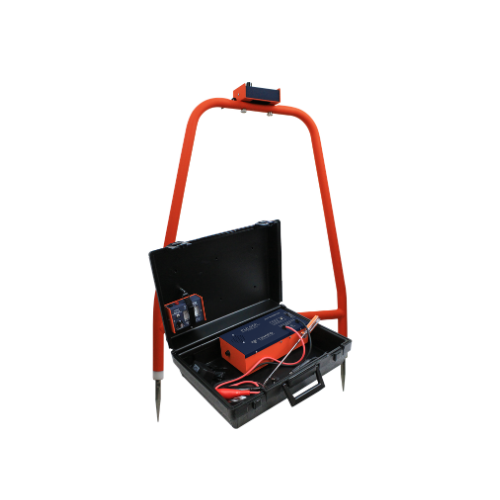

- Includes a rechargeable transmitter, receiver, A-frame, ground stake,120V charger and a 12V DC (cigarette lighter) adapter
- Battery operated (one rechargeable 12V and one 9V battery). 9V is not included.

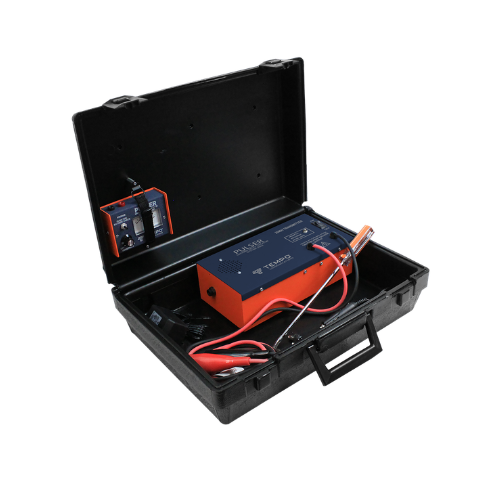

- Molded carrying case included
PE2003-G Pulser Fault Locator Datasheet.pdf
SPECIFICATIONS
| Attribute Name | Attribute Value |
|---|---|
| International Harmonize Code | 9031808085 |
| Country of Origin | US |
| Item Status Date | 10242017 |
| UNSPSC | 41113612 |
| Model | PE2003-G |
| Display | Moving coil galvanometer |
| Enclosure | Plastic and metal |
| Power Supply | Internal 12V rechargeable battery (Transmitter) / 9V battery (Receiver) |
| Type | Pulse ground fault locator |
Common Questions About the Tempo PE2003-G Pulser Ground Fault Locator
What is the Tempo PE2003-G used for?
The Tempo PE2003-G is used to pinpoint breaks and faults in the insulation of buried wire and cable by sending a high voltage pulse that radiates into the ground at the fault location.
Can the PE2003-G locate multiple faults on the same wire?
Yes. The PE2003-G can identify multiple insulation faults along a single wire, helping technicians determine whether a cable should be repaired or replaced.
How does the PE2003-G help pinpoint the location of a ground fault?
The transmitter pulses a high voltage signal through the cable, while the A frame mounted receiver uses a visual analog meter to guide the technician toward the location where the signal is escaping into the ground.
At a Glance
• Pinpoints breaks and faults in buried wire and cable insulation
• Identifies multiple faults along a single wire
• A frame receiver with visual analog meter for fault locating
• Extra long test leads with heavy duty alligator clips
• Includes rechargeable transmitter, receiver, A frame, ground stake, and chargers
• Molded carrying case included
