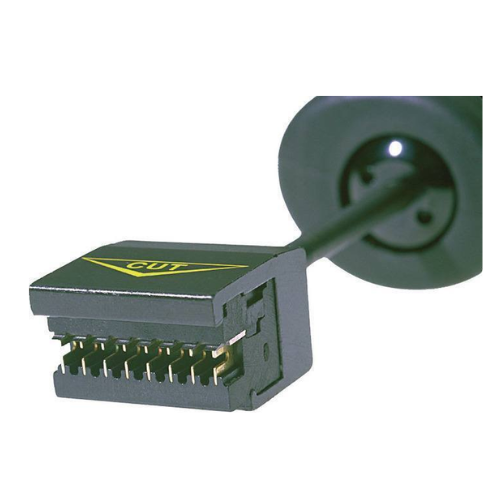

TEMPO | Propunch 110 With 4-Pair Head | #PA3561
TEMPO COMMUNICATIONS | PART #PA3561
Propunch 110 With 4-Pair Head
DESCRIPTION
- Fewer punches saves time
- Smooth operation and rugged, comfortable handle absorbs punch recoil
- Terminates 28-22 AWG (.08 - .34 mm2) solid or stranded wires with single insulation
- Cut and punch blade cassette or switch blades for punch only
- Designed to work with 23 AWG CAT 6 cable
SPECIFICATIONS
| Attribute name | Attribute Value |
|---|---|
| Diameter | 2.000 IN (52.000 MM) |
| Includes | 4-Pair Head |
| Length | 10.300 IN (261.000 MM) |
| Replacement Part | PA4561 Replacement 4-Pair Head, PA4563 Replacement 4-Pair Blade cassette |
| Sub Brand | ProPunch 110 |
| Type | Multi Pair |
| Weight | 15.500 OZ (400.000 G) |
| Width | 1.500 IN (39.000 MM) |
| Item Status Date | 01012009 |
| Country of Origin | TW |
| UNSPSC | 43223343 |
| International Harmonize Code | 8205595510 |
| RoHS Indicator | U |
| MSDS Update Flag | N |
Common Questions About the Tempo PA3561 ProPunch 110 With 4-Pair Head
What is the Tempo PA3561 ProPunch 110 used for?
The Tempo PA3561 is designed to terminate and cut up to four pairs of data or voice cable at the same time, reducing the number of punches required during cable installation.
Can the Tempo PA3561 be used with CAT 6 cable?
Yes. The PA3561 is designed to work with 23 AWG CAT 6 cable and can terminate 28 to 22 AWG solid or stranded wires with single insulation.
Can the Tempo PA3561 punch wires without cutting them?
Yes. The PA3561 includes a cut and punch blade cassette, and the blades can be switched for punch only applications when cutting is not required.
At a Glance
• Terminates and cuts up to four cable pairs simultaneously
• Designed for data and voice cable termination applications
• Handles 28 to 22 AWG solid or stranded wire
• Designed to terminate 23 AWG CAT 6 cable efficiently
• Cut and punch blade cassette can be configured for punch only operation
• Rugged no slip handle helps absorb recoil and provides a comfortable grip
