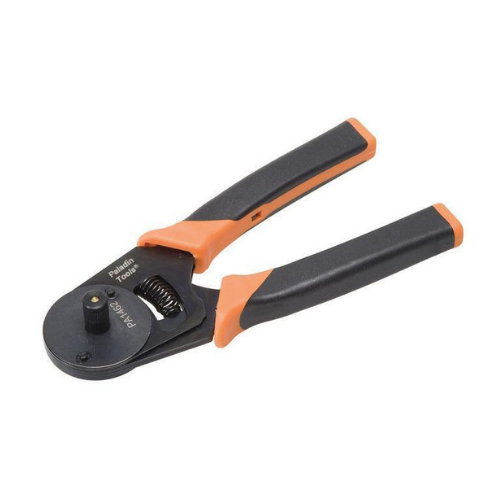

TEMPO | PRO-GRIP CRIMPER, 8-INDENT D-SUB, 26-20A | #PA1462
TEMPO COMMUNICATIONS | PART #PA1462
PRO-GRIP CRIMPER, 8-INDENT D-SUB, 26-20A
Pro-Grip Crimper Instruction Sheet
DESCRIPTION
This full ratcheting crimper easily terminates computer connections and electrical terminals and features a limited lifetime warranty.
- Adjustable pin height locator and cushion grips for comfort.
- 26-20AWG Closed–barrel D-Sub contracts.
- Crimps 4 indentions onto closed-barrel D-subminiature contacts for various computer and electrical connections.
- Applications include printer connectors, joystick connectors, video connectors, analog connectors and electronic connectors.
- Spring loaded and auto-release when crimp cycle is complete.
SPECIFICATIONS
| Attribute name | Attribute Value |
|---|---|
| Application | For AWG 26-20 (0.140 - 0.500 SQ-MM) D-Sub Contacts (P/N 1462) |
| Crimping Range | 26-20 AWG |
| Type | D Sub 8 Indent |
| Weight | 11.000 OZ (312.000 G) |
| Item Status Date | 07062010 |
| Country of Origin | TW |
| UNSPSC | 43223313 |
| RoHS Indicator | U |
| MSDS Update Flag | N |
| International Harmonize Code | 8205595560 |
Common Questions About the Tempo PA1462 Pro-Grip D-Sub Crimper
What is the Tempo PA1462 Pro-Grip D-Sub Crimper used for?
The Tempo PA1462 is a professional ratcheting crimping tool designed for terminating closed-barrel D-subminiature contacts used in computer and electrical connections. It is suitable for applications involving printer connectors, joystick connectors, video connectors, analog connections, and other electronic equipment.
What wire sizes and contacts are compatible with the Tempo PA1462?
The PA1462 is designed for 26 to 20 AWG wire (0.14 to 0.50 mm²) and compatible closed-barrel D-Sub contacts. Its adjustable pin height locator helps technicians position contacts accurately for consistent crimping during connector assembly and electrical termination.
How does the Tempo PA1462 ratcheting mechanism improve crimping performance?
The PA1462 features a full-cycle ratcheting mechanism with spring-loaded operation and automatic release when the crimp cycle is complete. Its cushioned Pro-Grip handles provide comfort and control, while the adjustable locator helps maintain consistent contact positioning during repeated crimping tasks.
At a Glance
• Professional Pro-Grip ratcheting crimper for closed-barrel D-subminiature contacts
• Designed for 26 to 20 AWG wire (0.14 to 0.50 mm²)
• 8-indent D-Sub crimping design for compatible electrical and electronic contacts
• Adjustable pin height locator helps ensure accurate contact positioning
• Spring-loaded, full-cycle ratcheting mechanism with automatic release
• Cushioned handles, 11 oz construction, and limited lifetime warranty
