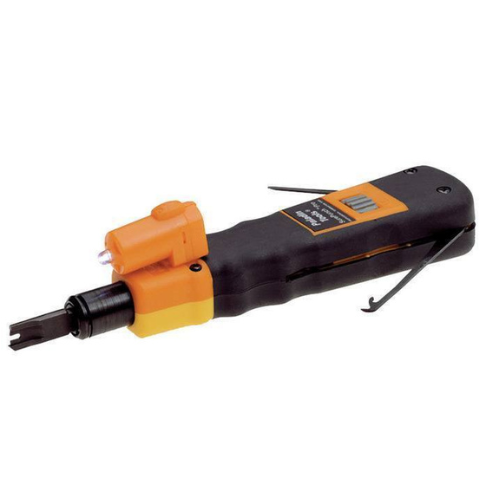

TEMPO | PDT Surepunch-Pro W/Light Clamshell | #PA3588
TEMPO COMMUNICATIONS | PART #PA3588
Crimpall 22-10 INS.Terms. Clamshell
DESCRIPTION
- Terminate cable in single punch - including 23 AWG Cat6
- Detachable light with long-life LED specially designed to focus the light on the panel work area
- Luminous intensity of the LED is 2200 mcd
- Finger grips and non-slip rubber-embedded cushioned handle for comfort
- Multi-use spudger that can be used as a screwdriver or an IDC contact insertion tool
- Hook to feed wires through holes
- Pick to separate bonded twisted-pair cables or to strip insulation and cut wire
- Adjustable HI/LO spring compression for all cable types. LO= 27.5 lbs (122 N), HI= 37.5 lbs (167 N)
- Uses twist-and-lock style blades
- Blade storage area in end of handle with comfortable latch cover
| Attribute name | Attribute Value |
|---|---|
| Includes | 1110/66 Combination Cut-Only Blade And Light |
| Sub Brand | SurePunch®Pro |
| Item Status Date | 01012009 |
| Country of Origin | TW |
| UNSPSC | 43223343 |
| International Harmonize Code | 8205595560 |
| RoHS Indicator | U |
| MSDS Update Flag | N |
Common Questions About the Tempo PA3588 SurePunch Pro Punchdown Tool
What is the Tempo PA3588 SurePunch Pro used for?
The Tempo PA3588 is designed for terminating communications cable in a single punch, including 23 AWG Cat6 cable, with adjustable impact force for different cable types.
Does the Tempo PA3588 include a work light?
Yes. The PA3588 includes a detachable long life LED light designed to focus illumination directly on the termination and panel work area.
Can the impact force be adjusted on the Tempo PA3588?
Yes. The PA3588 provides adjustable high and low spring compression settings, allowing technicians to select the appropriate impact force for different cable applications.
At a Glance
• Professional SurePunch Pro tool for cable termination and punchdown work
• Supports single punch termination including 23 AWG Cat6 cable
• Adjustable high and low impact settings for different cable types
• Detachable LED light illuminates the panel work area
• Includes 110/66 combination cut only blade and integrated blade storage
• Cushioned non slip handle with built in spudger, hook, and pick tools
