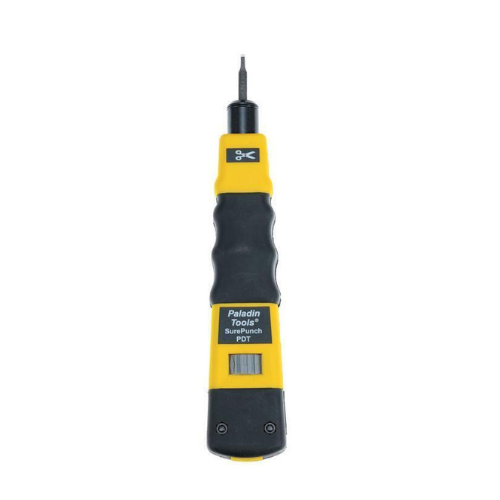

TEMPO | PDT Surepunch 110 | #PA3572
TEMPO COMMUNICATIONS | PART #PA3572
PDT Surepunch 110
DESCRIPTION
- Cushion grip, molded to the shape of your hand, for comfort and a sure, non-slip hold
- Increased HI/LO impact force to meet demands of new cable types and AWG sizes: LO= 30 lbs (133 N), HI= 40 lbs (178 N)
- For 28-22 AWG (0.08 - 0.34 mm2), solid or stranded wire
- Uses twist-and-lock style blades
- Cushioned heel for comfort in the palm of your hand
- New latch cover blade storage area in end of handle
- Lanyard holes in end
| Attribute name | Attribute Value |
|---|---|
| Application | For 28-22 AWG (0.080 - 0.340 SQ-MM) Solid Or Stranded Wire |
| Includes | 110 Reversible Cut And Punch/Punch-Only Blade |
| Length | 8.000 IN (203.000 MM) |
| Replacement Part | PA4572 SurePunch® 110 Reversible Blade |
| Sub Brand | SurePunch |
| Weight | 8.000 OZ (242.000 G) |
| Item Status Date | 04152009 |
| Country of Origin | TW |
| UNSPSC | 43223343 |
| International Harmonize Code | 8205595510 |
| RoHS Indicator | U |
| MSDS Update Flag | N |
Common Questions About the Tempo PA3572 SurePunch 110 Punchdown Tool
What is the Tempo PA3572 SurePunch 110 used for?
The Tempo PA3572 is designed for terminating 28 to 22 AWG solid or stranded communications wire using a reversible 110 punchdown blade.
Does the Tempo PA3572 have adjustable impact force?
Yes. The PA3572 provides high and low impact settings, with 30 pounds of force on low and 40 pounds on high to accommodate different cable types and wire sizes.
What blade is included with the Tempo PA3572 SurePunch 110?
The PA3572 includes a reversible 110 blade that can be configured for cut and punch or punch only termination applications.
At a Glance
• Professional SurePunch tool for 110 termination applications
• Handles 28 to 22 AWG solid or stranded wire
• Includes reversible 110 cut and punch or punch only blade
• Adjustable high and low impact settings for different cable types
• Twist and lock blade system allows quick and easy blade changes
• Cushioned non slip grip with built in blade storage for convenient field use
