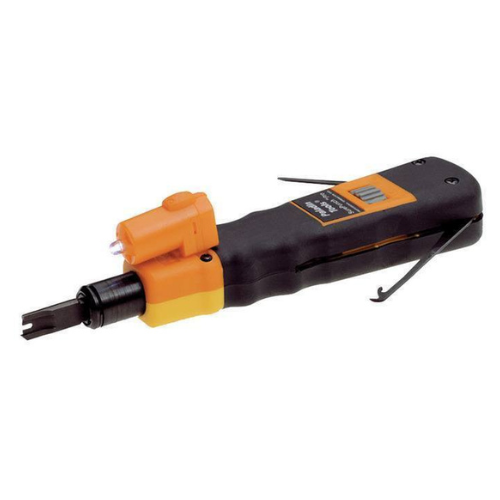

TEMPO | PDT Punchdown - SSP W/110 & 66 | #PA3587
TEMPO COMMUNICATIONS | PART #PA3587
PDT Punchdown - SSP W/110 & 66
DESCRIPTION
The Tempo Communications PA3587 SurePunch® Pro SSP Punchdown Tool with a detachable light is ideal for working in dark environments. It will terminate 28-22 AWG solid or stranded wire in a single punch. Additionally, the SurePunch® offers a spudger that can be used as a screwdriver or an IDC contact insertion tool, a wire hook to feed wires through holes, and a pick to separate twisted-pair cables or to strip insulation and cut wire.
OVERVIEW
- Terminate cable in single punch - including 23 AWG Cat6
- Detachable light with long-life LED specially designed to focus the light on the panel work area
- Luminous intensity of the LED is 2200 mcd
- Finger grips and non-slip rubber-embedded cushioned handle for comfort
- Multi-use spudger that can be used as a screwdriver or an IDC contact insertion tool
- Hook to feed wires through holes
- Pick to separate bonded twisted-pair cables or to strip insulation and cut wire
- Adjustable HI/LO spring compression for all cable types. LO= 27.5 lbs (122 N), HI= 37.5 lbs (167 N)
- Uses twist-and-lock style blades
- Blade storage area in end of handle with comfortable latch cover
| Attribute name | Attribute Value |
|---|---|
| Includes | 110 And 66 Reversible Cut AndPunch/Punch-Only Blade And Light |
| Sub Brand | SurePunch® Pro |
| Item Status Date | 01202009 |
| Country of Origin | TW |
| UNSPSC | 43223343 |
| International Harmonize Code | 8205595510 |
| RoHS Indicator | U |
| MSDS Update Flag | N |
Common Questions About the Tempo PA3587 SurePunch Pro SSP Punchdown Tool
What is the Tempo PA3587 SurePunch Pro used for?
The Tempo PA3587 is designed to terminate 28 to 22 AWG solid or stranded communications wire in a single punch, including 23 AWG Cat6 cable.
What blades are included with the Tempo PA3587?
The PA3587 includes reversible 110 and 66 blades that can be configured for cut and punch or punch only termination applications.
Does the Tempo PA3587 include a work light?
Yes. The PA3587 includes a detachable long life LED light designed to focus illumination directly on the panel work area for easier termination in dark environments.
At a Glance
• Terminates 28 to 22 AWG solid or stranded communications wire
• Supports single punch termination including 23 AWG Cat6 cable
• Includes reversible 110 and 66 cut and punch or punch only blades
• Detachable LED light illuminates the termination work area
• Adjustable high and low spring compression for different cable types
• Built in spudger, wire hook, pick, and blade storage for convenient field use
