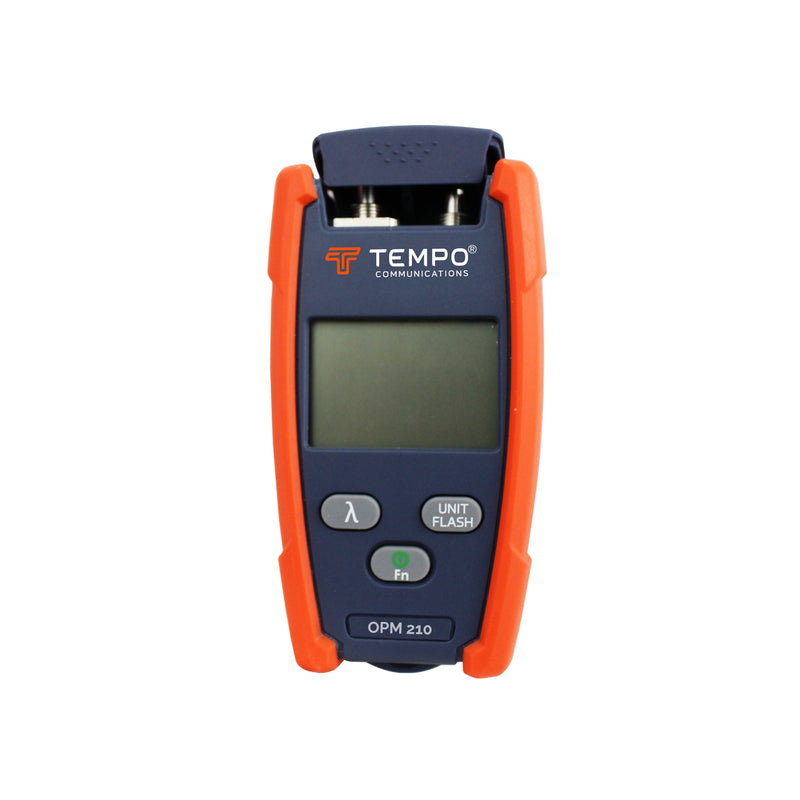

TEMPO | Optical Power Meter (-70 to +10dBm) | #OPM210
Original price
$268.79
-
Original price
$268.79
Original price
$268.79
$268.79
-
$268.79
Current price
$268.79
TEMPO COMMUNICATIONS | PART #OPM210
DESCRIPTION
The Tempo Communications Micro Optical Power Meters (OPM210 and OPM220) are available in standard and high-power versions for the Telco and MSO markets. Absolute and referenced power measurements ensure fast and accurate loss budget and insertion loss measurements. Injected tones of 270Hz, 1kHz, and 2kHz from a compatible source can be used to positively identify fiber optic cables.
The Micro OPM supports calibrated wavelengths of 850, 980, 1270 1300, 1310, 1490, 1550, 1577, 1623 and 1650nm.
OVERVIEW
- Standard and High Power Optical Power Meters
- Measure Optical Power (dB, dBm & mW)
- Accurate Insertion Loss Measurements
- Tone and Probe Fiber Networks at 270Hz, 1kHz and 2kHz
- Absolute or Referenced Optical Power Measurements
- Integrated Visual Fault Locator
- Integrated Flash Light
- InGaAs detector for Maximum Sensitivity
- Calibrated Wavelengths 850nm, 1300nm, 1310nm, 1490nm, 1550nm & 1625nm
- Universal Bulkheads
- Compatible with Singlemode and Multimode Networks
- Auto Off or Continuous On Operation
- AA Battery Operation
- Supplied with Lanyard
SPECIFICATIONS
| Attribute Name | Attribute Value |
|---|---|
| Measuring Range | OPM210: -70 to + 10dBm (1310/1490/1550/1625); -60 to +10dBm (850/1300) |
| Measuring Range | OPM220: -50 to +26dBm (1310/1490/1550/1625); -40 to +26dBm (850/1300) |
| Calibrated Wavelengths | 850, 980, 1270, 1300, 1310, 1490, 1550, 1577, 1625, 1650nm |
| Display Resolution | 0.01dB |
| Connector | Universal 2.5mm |
| Accuracy | +/-0.25dB |
| Linearity | OPM210: +/-0.5dB (+10 to -3dBm); +/-0.1dB (-3 to -50dBm); +/-0.5dB (-50 to -70dBm) / OPM220: +/-0.5dB +26 to -3dBm; +/-0.1dB -3 to -50dBm |
| Wavelength Response | 700 - 1700nm |
| Tone Frequency | 270Hz, 1kHz, and 2kHz |
| Detector Type | InGaAs |
| Power Supply | AAA x 2 Alkaline |
| Battery Life | >60 Hours (OPM mode) |
| Operating Temperature | -10 to +50°C (<90% Relative Humidity) |
| Storage Temperature | -20 to +60°C (<90% Relative Humidity) |
| VFL Wavelength | 650nm +/-20nm |
| VFL Output | Less than or equal to 1mW/ 2Hz |
| VFL Range | 4km |
| Size | 106 x 58 x 28mm (4.17 x 2.28 x 1.10”) |
| Weight | 106g (0.23lbs) |
| Automatic Shut-Off | 10 minutes of no activity |
| Certifications | CE, RoHS, CDRH, WEEE |
