TEMPO | Optical Fiber Cleaver | #FCL200

Original price $766.17 - Original price $766.17
Original price
$766.17
$766.17 - $766.17
Current price $766.17

TEMPO COMMUNICATIONS | PART #FCL200

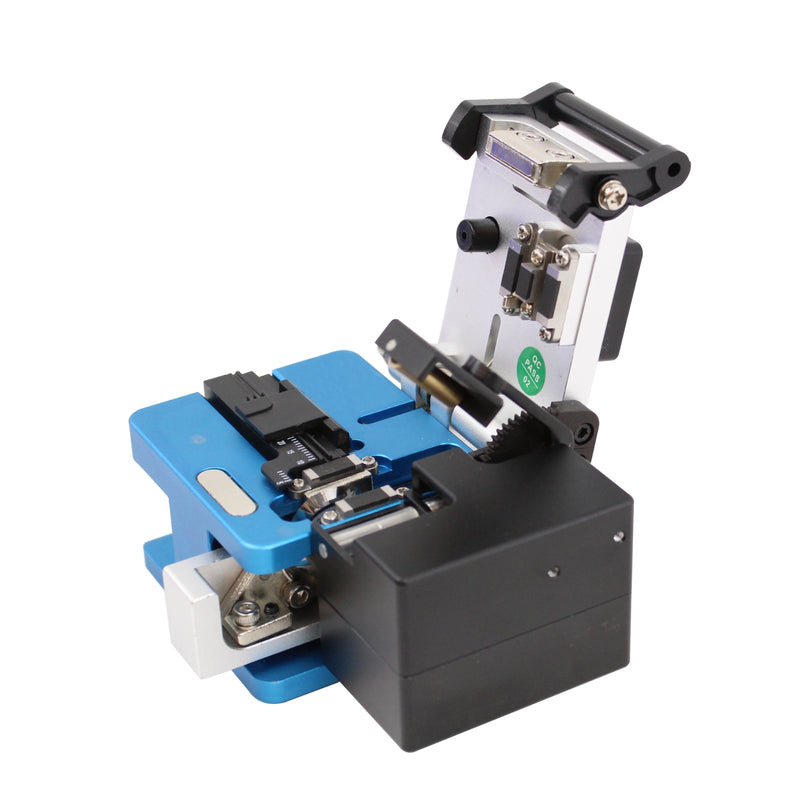

Optical Fiber Cleaver

DESCRIPTION

The FCL200 cleaver provides fast and accurate cleaves that can be used with any fusion splicer and for preparing fibers for use with mechanical connectors.

When the fixed clamp is installed the fiber is securely held in place and is capable of cleaving 200 micron, 250 micron, 900 micron, 3mm, ribbon and bowtie fibers. The dust bin automatically collects all fiber end cuts for safe disposal with its spring driven mechanism.

OVERVIEW

  • Cleave singlemode and multimode fibers
  • Precision-engineered blades accurately cleave fibers for minimal loss.
  • Fully automatic with auto blade return
  • Over 48,000 cleaves blade lifetime
  • Dust bin safely and automatically collects fiber end cuts
  • Fixed clamp for maximum versatility and standalone operation
  • Cleaves single fiber, ribbon cables & loose tube fibers

SPECIFICATIONS

Attribute Name Attribute Value
Applicable Fibers SM (G.652); MM (G.651); DS (G.653); NZDS (G.655); BIF (G.657)
Fiber Cleaved Length 5mm - 20mm
Cladding Diameter 125µm
Coating Diameter 0.20 mm, 0.25 mm and 0.9 mm
Fiber Count Single and Ribbon (12)
Cleaving Angle < 1.5°
Blade Life 48,000 Cleaves
Weight 0.77lbs (350g)
Dimensions 2.55 x 3.85 x 2.55” (65 x 98 x 65mm)



FCL200 Datasheet

FCL200 Datasheet_Spanish.pdf

FCL200 Manual
