TEMPO | OmniMarker-ID Underground Utility Marker Ball (Orange, Telephone, 101.4kHz) | #OM05-ID
TEMPO COMMUNICATIONS | PART #OM05-ID

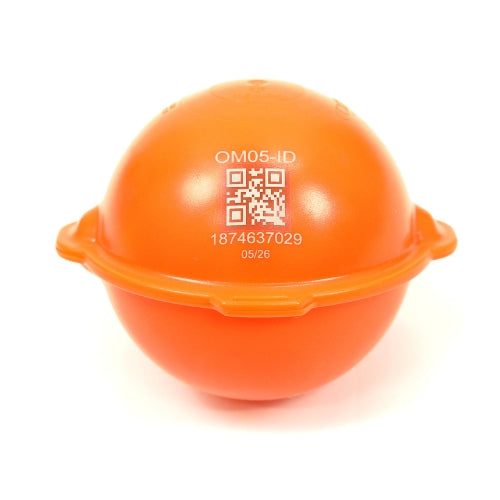

OmniMarker-ID Underground Utility Marker Ball (Orange, Telephone, 101.4kHz)
DESCRIPTION
The OmniMarker-ID™ combines proven passive electronic marker technology with smart ID functionality, helping contractors and utility operators quickly locate and manage buried assets with precision.
Unlike standard markers, the OmniMarker-ID not only carries a unique serial number but also allows custom data storage directly on the marker. Critical information—such as asset type, installation details, or service history—can be written and retrieved instantly with a compatible locator from up to 5 feet (3.3m), then seamlessly integrated into a company’s GIS system.
Designed for all nine industry-standard frequencies, the OmniMarker-ID offers a self-leveling antenna, ensuring reliable location from any orientation. Its maintenance-free, environmentally friendly design makes it a rugged, long-term solution for safeguarding critical infrastructure.
KEY BENEFITS
-
Patented, self-leveling antenna for fast, accurate locating
-
Compatible with all industry-standard frequencies
-
Unique serial number for reliable identification
-
5 feet (3.3m) Read Range
-
Read/write capability for custom data storage and retrieval
-
Maintenance-free, eco-conscious construction
-
QR code enables quick scanning of marker inventory
The OmniMarker-ID™ is more than a locator target—it’s a smart, RFID-enabled marker that improves safety, efficiency, and long-term infrastructure management.
All OmniMarker-ID are Made in the USA, BABA Compliant. OM02-ID CATV, OM04-ID Fiber Optic, and OM05-ID Telephone OmniMarker-ID marker balls are BEAD eligible.
OVERVIEW
- Read/write capability for custom data storage and retrieval
- Unique serial number for precise identification
- 100% passive, eco-conscious, battery-free operation
- Self-leveling antenna for worry-free installation
- 5 foot (3.3m) read range
- QR code enables quick scanning of marker inventory
SPECIFICATIONS
| Attribute Name | Attribute Value |
|---|---|
| Application | For electronically marking key locations in buried utility |
| Weight | One Marker 5.3oz (153g) |
| Unit of Supply | One box contains 30 markers |
| Minimum Diameter | 100mm |
| Widest Measurement (tag to tag) | 128mm |
| Body Material | High density polyethylene (HDPE), fusion welded |
| Country of Origin | USA |
Common Questions About the OmniMarker ID Underground Utility Marker Ball Telephone 101.4 kHz
What is the OmniMarker ID Underground Utility Marker Ball used for?
The OmniMarker ID Underground Utility Marker Ball is used to mark and locate buried telephone lines while storing asset data for identification and tracking.
Who is this utility marker designed for?
This marker is designed for telecommunications contractors, utility crews, and infrastructure teams responsible for installing and maintaining underground telephone networks.
What makes the OmniMarker ID different from standard marker balls?
This marker features RFID read and write capability, a unique serial number, and a self leveling antenna for accurate locating and seamless GIS integration.
At a Glance
• RFID enabled underground utility marker ball for telephone lines
• Read and write capability with unique serial number
• Self leveling antenna for reliable locating
• Maintenance free and compatible with all standard frequencies
