TEMPO | Multimeter | #MM200
TEMPO COMMUNICATIONS | PART #MM200
Multimeter
DESCRIPTION

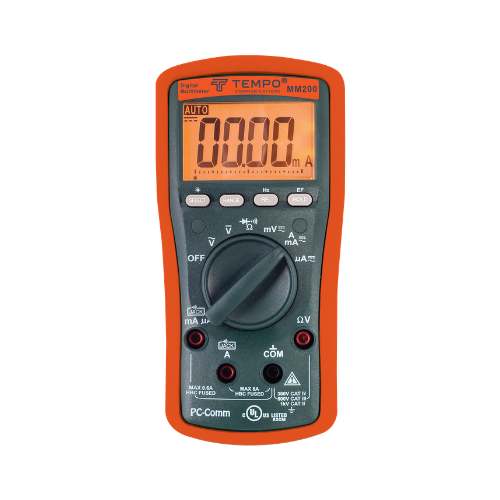

Equipped with all the measurement features you’re likely to need, the MM200 from Tempo Communications is an accurate, 6000 count, segmented, bar-graph, auto-ranging multimeter that will suit most electricians' needs.
Built to international safety standards, the MM200 performs all the tests any electrician would want from a multimeter. Features like “BeepJack” help prevent damage when leads are attached to the wrong terminals for the type of test selected. Fully auto-ranging or manual—the choice is yours. The backlit LCD helps when testing in those awkward cupboards.
- Volts
- ohms
- Current
- Frequency
- Continuity
- Diode
- Non-contact electric field detection plus relative measurements
- Display backlight
- Reading hold
- CAT-IV 300V, CAT-III 600V
- Supplied with silicone insulated safety leads with removable CAT-IV arc-flashguards
- Supplied with a custom-built fabric carry case
OVERVIEW
MM200 Multimeter: Testing| Troubleshooting| Accuracy

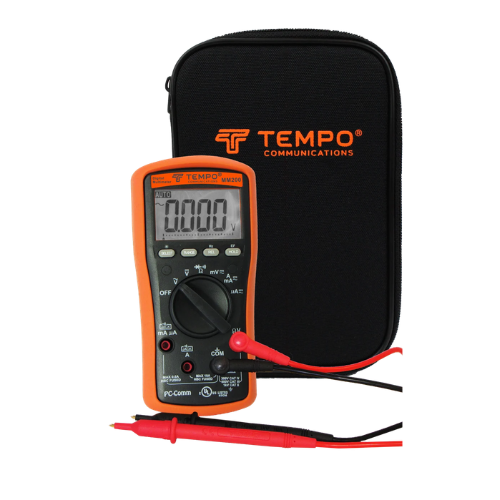

Supplied with a zipper case and high-quality safety test leads:
Product Features:
- Fast response 24 segment “bar-graph”
- 6000 Count large digit LCD
- Core accuracy better than 0.5%
- Average responding AC measurements
- Measurements Voltage (ac or dc)Current (ac or dc)Continuity Resistance Diode Frequency Electric Field (EF) voltage detector
SPECIFICATIONS
| Attribute name | Attribute Value |
|---|---|
| Display | LCD (6000) and 24-segment bar graph |
| Polarity | Automatic |
| Sampling Rate | Numeric Display: 5 per second Bar Graph Display: 40 per second |
| Temperature Coefficient | Nominal 0.15 x (specified accuracy) per °C below 18 °C or above 28 °C |
| Automatic Shut-Off | After 34 minutes of inactivity |
| Noise Rejection | Normal Mode Rejection Ratio > 60 dB at 50 Hz and 60 Hz when measuring DCV Common Mode Rejection Ratio > 60 dB from 0 Hz to 60 Hz when measuring ACV Common Mode Rejection Ratio > 100 dB at 0 Hz, 50 Hz and 60 Hz when measuring DCV |
| Operating Conditions | 0 °C to 40 °C (32 °F to 104 °F) |
| Relative Humidity | 80% maximum for temperatures up to 31 °C (88 °F), decreasing linearly to 50% maximum at 40 °C (104 °F) |
| Altitude | 2000 m (6500’) maximum |
| Pollution Degree | 2 |
| Storage Temperature | –20 °C to 60 °C (–4 °F to 140 °F) |
| Battery | Two 1.5 V batteries (AAA, NEDA 24A or IEC LR03) |
| Volts & AutoCheck | 1100 V DC/AC rms |
| mV, O, and Others: | 1000 V DC/AC rms |
| µA and mA: | 0.4A/1000V DC/AC rms, IR 30kA @ 1000V DC/AC rms; Dimension: 6 x 32 mm |
| A: | 11A/1000V DC/AC rms, IR 20kA @ 1000V DC/AC rms; Dimension: 10 x 38 mm |
| V/ohms/mA/A to COM: | CAT III 600V and CAT IV 300V AC & DC |
| E.M.C. | Meets EN61326-1:2013 |
Common Questions About the Tempo MM200 Multimeter
What can the Tempo MM200 Multimeter measure?
The Tempo MM200 measures AC and DC voltage, AC and DC current, resistance, continuity, diode function, and frequency. It also provides non contact electric field detection and relative measurements.
Does the Tempo MM200 have automatic ranging?
Yes. The MM200 provides both automatic and manual ranging, allowing electricians and technicians to choose the measurement method that best fits the application.
What safety ratings does the Tempo MM200 Multimeter have?
The MM200 is rated CAT IV 300V and CAT III 600V and includes silicone insulated safety test leads with removable CAT IV arc flash guards.
At a Glance
• 6000 count LCD with fast response 24 segment bar graph
• Measures voltage, current, resistance, continuity, diode, and frequency
• Non contact electric field detection helps identify voltage presence
• Automatic and manual ranging for flexible electrical testing
• Backlit display and reading hold function for easier field use
• CAT IV 300V and CAT III 600V rated for electrical safety
