TEMPO | Multi-Filter Tone Probe | #200XP
TEMPO COMMUNICATIONS | PART #200XP

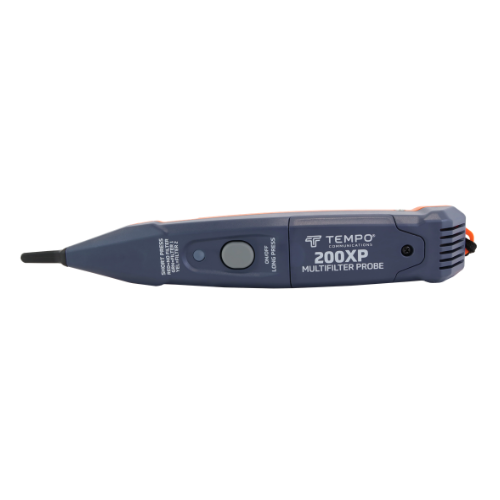

Multi-Filter Tone Probe
DESCRIPTION
The 200XP & 200XP/50 multi-filter tone probes have three main operating modes: Normal, power-hum rejection, and power-hum rejection combined with narrowband filtering. The filters can be used where noise makes it difficult to trace using conventional probes. Digital signal processing leads to highly sensitive tone detection aided by clear visible signal strength indication. All controlled by a single push-button and continuously adjustable sensitivity control.
- Single-button selects between default mode and two kinds of powerful noise filters
- Filtering means faster, more accurate pair tracing
- Digital signal processor for accuracy and sensitivity
- Durable, lightweight
- Audible and visible signal detection
- Continuous, wide-range volume control
- 3.5mm headphone jack
- Field replaceable tip, spare tip included
- Uses two AA batteries
- One probe for many applications
- Works with any tone generator
- The narrowband filter mode is especially well suited for 577Hz Telco tone sources and a version is available for 1kHz systems (983Hz)
- Patented - Patent #6946850
SPECIFICATIONS
| Attribute name | Attribute Value |
|---|---|
| Application | Works With Any Tone Generator |
| Battery | (1) 9 V |
| Frequency Rating | 60 HZ Mains, 577 HZ Narrowband |
| Type | Multi Filter |
| Item Status Date | 10162006 |
| Country of Origin | US |
| UNSPSC | 41113740 |
| International Harmonize Code | 9030400000 |
| RoHS Indicator | U |
| MSDS Update Flag | N |
Â
Common Questions About the Tempo 200XP Multi-Filter Tone Probe
What is the Tempo 200XP Multi-Filter Tone Probe used for?

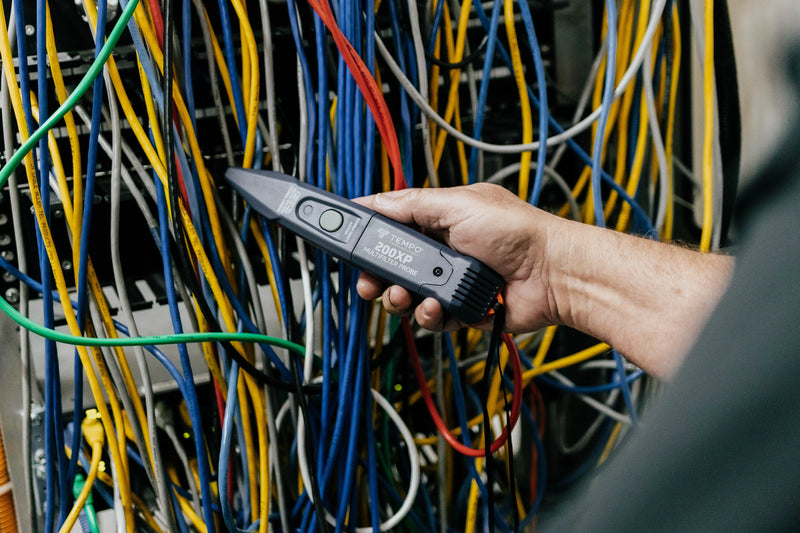

The Tempo 200XP is designed for tracing and identifying wires and cable pairs, especially in environments where power hum and electrical noise make conventional tone tracing difficult.
How does the Tempo 200XP reduce interference while tracing wires?
The 200XP offers normal, power hum rejection, and power hum rejection with narrowband filtering modes. Digital signal processing helps filter unwanted noise for faster, more accurate wire identification.
Can the Tempo 200XP work with different tone generators?
Yes. The 200XP is designed to work with any tone generator, making it a versatile probe for telecom, datacom, and general wire tracing applications.
At a Glance
• Multi filter tone probe for accurate wire and cable pair tracing
• Three operating modes help reduce power hum and electrical interference
• Digital signal processing provides sensitive and accurate tone detection
• Audible and visible signal strength indications assist with identification
• Continuously adjustable sensitivity with simple single button filter control
• Field replaceable probe tip with spare tip and 3.5 mm headphone jack
