TEMPO | LAN & A/V Cable-Check | #PA1594
TEMPO COMMUNICATIONS | PART #PA1594
LAN & A/V Cable-Check
DOCUMENTS

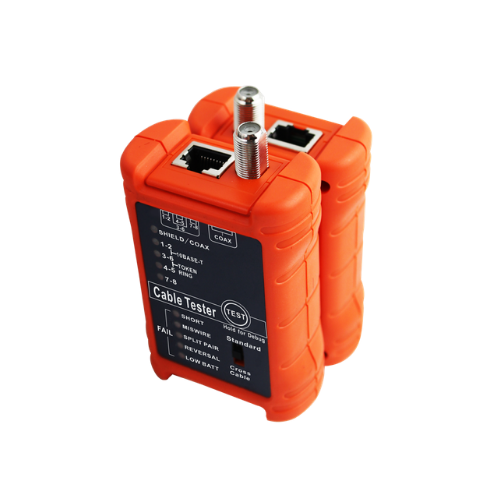

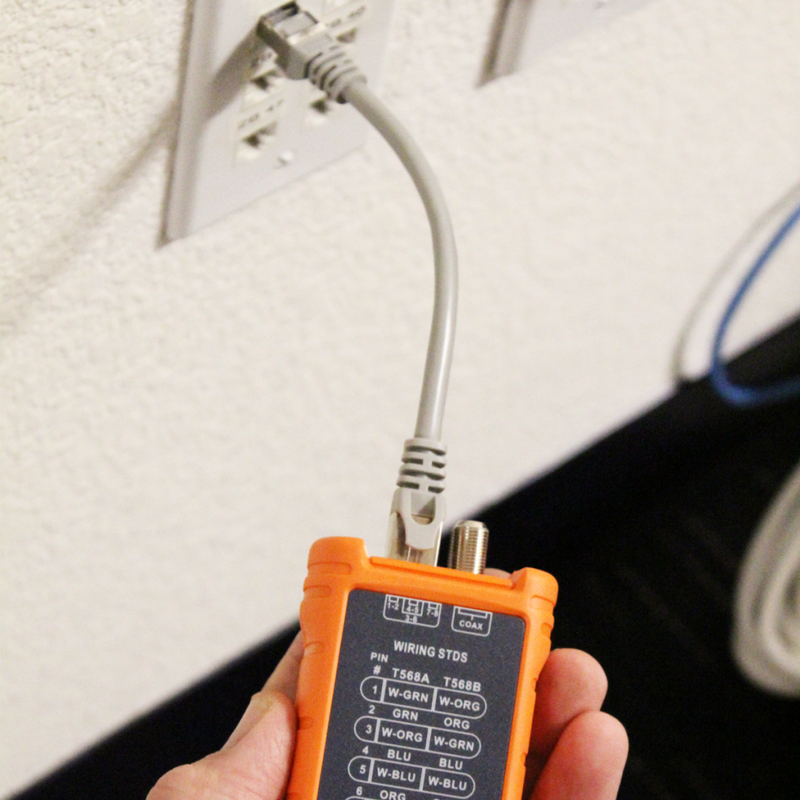

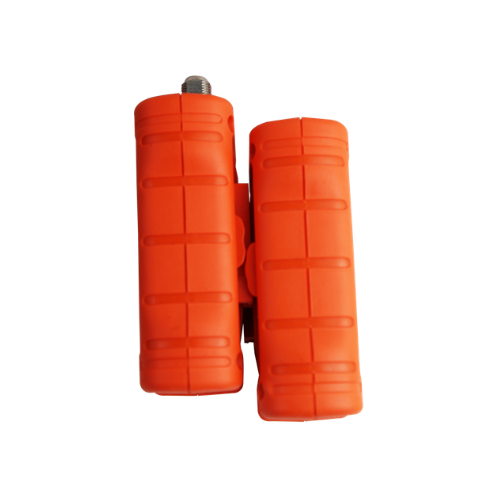

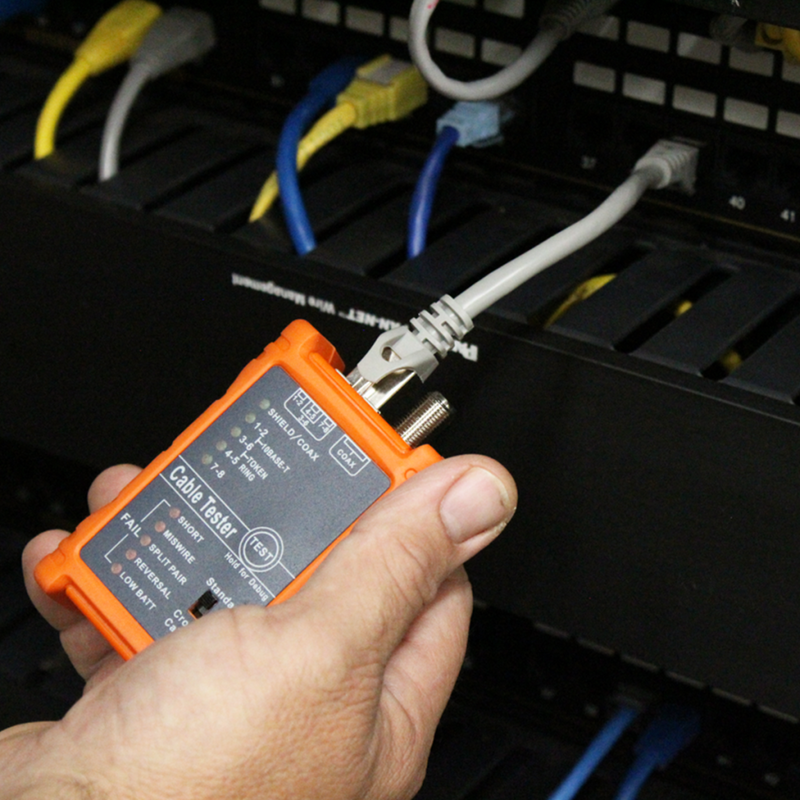

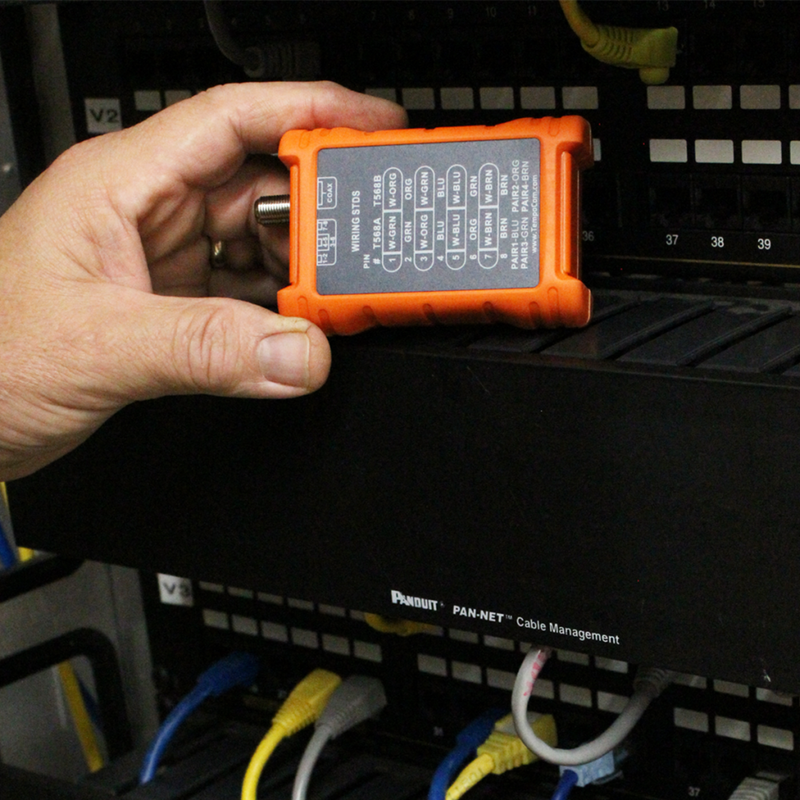

The PA1594 is a microprocessor-controlled active cable tester for LAN cables (RJ45) and coax cables (F connector) that allows you to check for continuity and correct wiring in seconds. Check patch cords or building wiring for shorts, opens, crosses and splits. The transmitter and receiver lock together for easy storage and have a pouch to keep the kit together.
- LAN tester detects shorts, misswires, splits or reversal
- Select for straight through or crossover LAN cables
- Two scan speeds: fast or slow

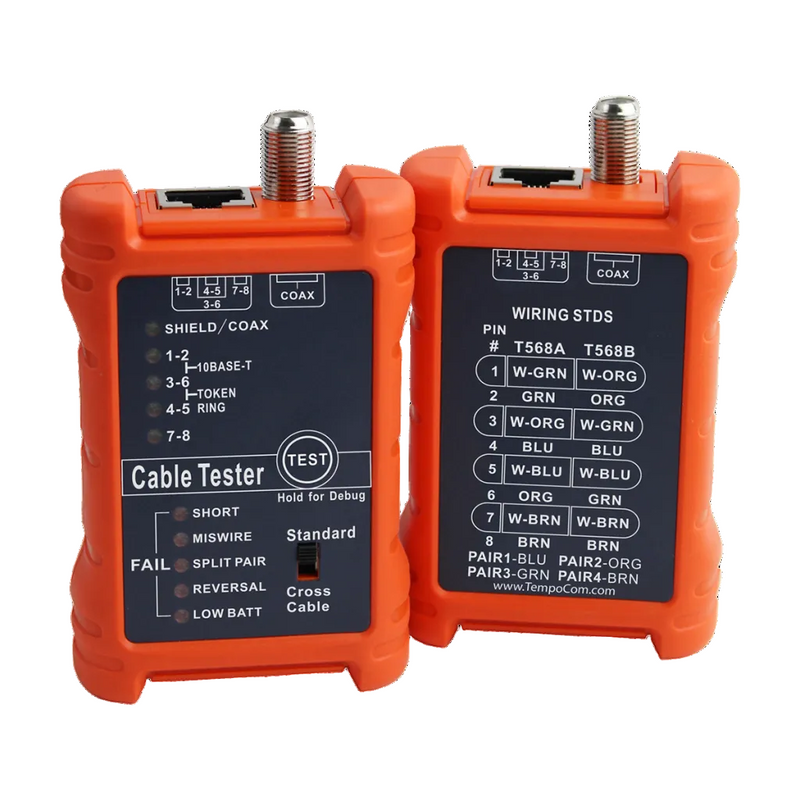

- Maps connector and cable pin-out
- Tests cables up to 900′ or 300m
- Also checks coaxial cables via the F connectors and included adaptors
- Two (2) RJ45 patch cords and 2 AAA batteries (included)
- Contained in a durable nylon carrying case with belt loop
SPECIFICATIONS
| Attribute name | Attribute Value |
|---|---|
| Battery | 2 AAA Batteries |
| Includes | <ul><li>2 RJ45 Patch Cords</li><li> 2 AAA Batteries</li><li> 75-OHM Male Terminator</li><li> Durable, Nylon Carrying Case</li><li> Cable TV 'F' Female Adapter</li><li> RCA To CATV 'F' Adapter</li><li> BNC to F Adapters</li></ul> |
| Sub Brand | Cable-Check |
| Country of Origin | CN |
Common Questions About the Tempo PA1594 LAN & A/V Cable-Check
What is the Tempo PA1594 LAN & A/V Cable-Check used for?
The Tempo PA1594 is a microprocessor-controlled cable tester designed to check RJ45 LAN and coaxial cables for continuity and correct wiring, including shorts, opens, crosses, splits, misswires, and reversals.
Can the Tempo PA1594 test both Ethernet and coaxial cables?
Yes. The PA1594 tests RJ45 LAN cables and coaxial cables using its F connectors and included adapters. It can also test straight-through and crossover LAN cables.
How far can the Tempo PA1594 test a cable run?
The PA1594 can test cable runs up to 900 feet or 300 meters and maps connector and cable pin-outs to help technicians identify wiring problems.
At a Glance
• Tests RJ45 LAN and coaxial cables for continuity and correct wiring
• Detects shorts, opens, crosses, splits, misswires, and reversals
• Supports straight-through and crossover LAN cable testing
• Tests cable runs up to 900 feet or 300 meters
• Two selectable scan speeds provide fast or slow testing

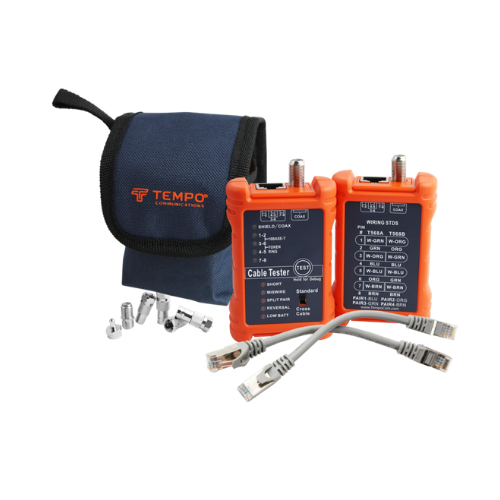

• Includes RJ45 patch cords, coax adapters, batteries, and nylon carrying case
