TEMPO | Filtered Tone Probe | #200FP
TEMPO COMMUNICATIONS | PART #200FP

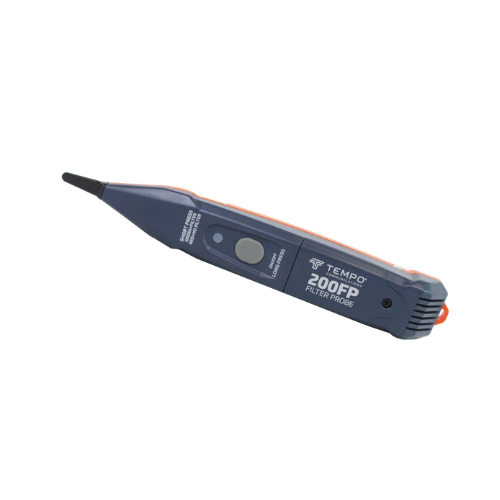

200FP Filtered Tone Probe
DESCRIPTION
The 200FP Filtered Tone Probe is designed to identify and trace wires or cables within a group without the need of removing insulation. In addition, the 200FP has been specifically designed to filter out all power-related noise (50Hz and 60Hz versions are available) to eliminate “Power Line Hum”. The unit is constructed of durable ABS plastic, and an optional leather carrying case, 200C, is available. The 200FP is also available as part of the Model 801K kit.
When the 200FP is active, but not detecting a signal, the LED will flash momentarily (every 4 seconds) as a visible ON indicator and a reminder. When a tone signal is detected by the probe, the signal LED will serve as a signal strength indicator: The brighter the LED, the stronger the tone signal detected.
OVERVIEW
- Used with any tone generator for faster and more accurate cable and wire identification
- By selectively filtering out 60Hz (or 50Hz) and its harmonics, the 200FP can be used with any tone generator for faster, more accurate, cable and wire identification
- Can be used in limited-space areas
- 3.5mm headphone jack
- Conservative battery life, uses two AA batteries
- Reduced risk of shorting terminals
- Slim, comfortable design
- Recessed on/off push-button control
- Adjustable sensitivity/volume control
- Blended carbon/plastic tip
SPECIFICATIONS
200FP Family Declaration of Conformity
Tempo 200 FP 200 FP50 Data Sheet newmodel
| Attribute name | Attribute Value |
|---|---|
| Application | Used With Any Tone Generator For Faster, More Accurate, Cable And Wire Identification |
| Frequency Rating | 60 HZ |
| Type | Filter |
| Country of Origin | US |
Common Questions About the Tempo 200FP Filtered Tone Probe
What is the Tempo 200FP Filtered Tone Probe used for?
The Tempo 200FP is designed to identify and trace individual wires or cables within a group without removing insulation, making wire identification faster and more accurate.
How does the Tempo 200FP reduce power line interference?
The 200FP filters out 60 Hz power noise and its harmonics, helping eliminate power line hum that can interfere with accurate wire and cable tracing.
Can the Tempo 200FP be used with any tone generator?
Yes. The 200FP is designed to work with any tone generator and features adjustable sensitivity and volume control to help technicians accurately identify the target wire or cable.
At a Glance
• Filtered tone probe for fast, accurate wire and cable identification
• 60 Hz filtering helps eliminate power line hum and related interference
• Identifies wires and cables without removing insulation
• LED provides visual indication of detected signal strength
• Adjustable sensitivity and volume control for precise tracing
• Slim design with 3.5 mm headphone jack for use in limited spaces
