TEMPO | EML250-ID Electronic RFID Marker Locator | #EML250-ID
TEMPO COMMUNICATIONS | PART #EML250-ID

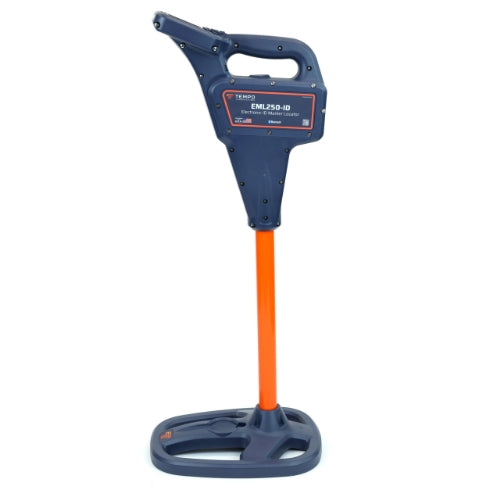

EML250-ID Electronic RFID Marker Locator
DESCRIPTION
Precision RFID Locating with Built-In Intelligence

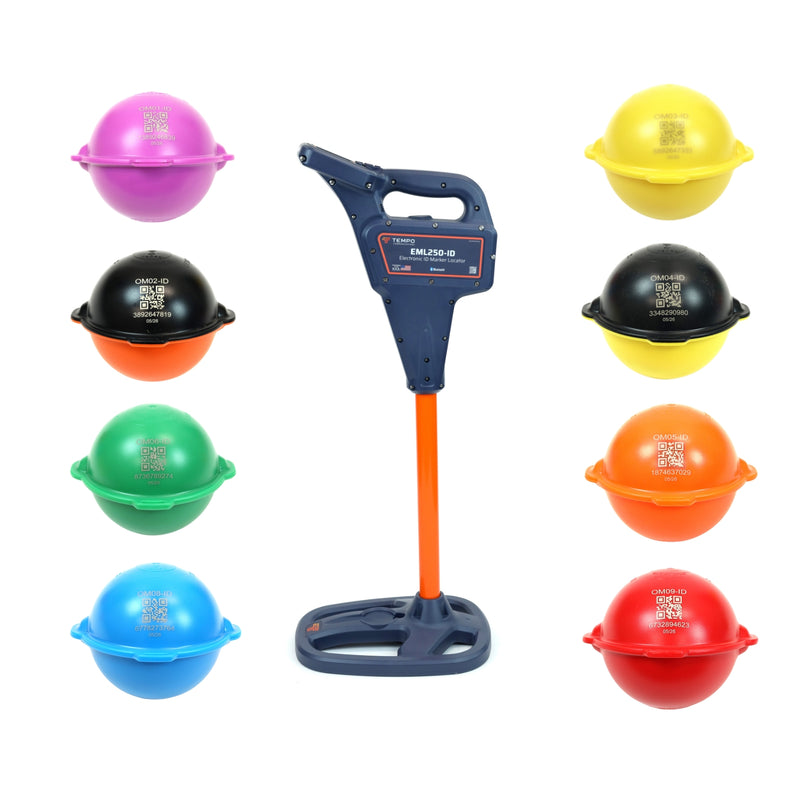

The EML250-ID Electronic RFID Marker Locator is engineered for professionals who need accurate, detailed underground utility data—quickly and reliably. The internal read/write capability allows the EML250-ID to read unique serial numbers and read and write custom information from Tempo’s OmniMarker-ID at distances up to 5 feet and from Spike Marker-ID up to 3.3 feet, all across 9 industry-standard frequencies.
In addition to identifying RFID-enabled markers, the EML250-ID passively locates any standard marker ball, offering full compatibility across utility types and applications.
Read and write actions are automatically recorded, ensuring clear data traceability. Integration is seamless with the Locator Link Mobile App, which allows for fast file transfer to GIS systems or cloud-based storage. For even greater positional accuracy, the EML250-ID pairs with external GNSS devices to precisely map each marker’s location.
A high-visibility color LCD provides a clear interface in varying field conditions, and the IP65/IP55-rated housing offers dependable protection against dust and water. The unit is fully rechargeable, reducing downtime and eliminating the need for disposable batteries.
Built for durability and designed for efficient data handling, the EML250-ID is a smart addition to any utility locating toolkit.
- Reads unique serial number and custom data on markers in all 9 frequencies
- Passively locate markers in all 9 frequencies
- Connects to mobile app for seamless GIS uploads
- Connects to external GNSS devices such as BadElf Flex Mini
Download the Locator Link app here:
Google Play Store: Locator Link App – Play Store
iOS App Store: Locator Link App – App Store
OVERVIEW
- Reads unique serial number and custom-written information on ID Omni Markers from up to 5ft away in 9 industry-standard frequencies
- Reads unique serial number and custom-written information on ID Spike Markers from up to 3.3 ft away in 9 industry-standard frequencies
- Locates any industry standard marker ball passively
- Read and write logs are recorded
- Compatible with Locator Link Mobile app to easily transfer files to GIS system or the cloud
- Compatible with External GNSS devices to pinpoint location

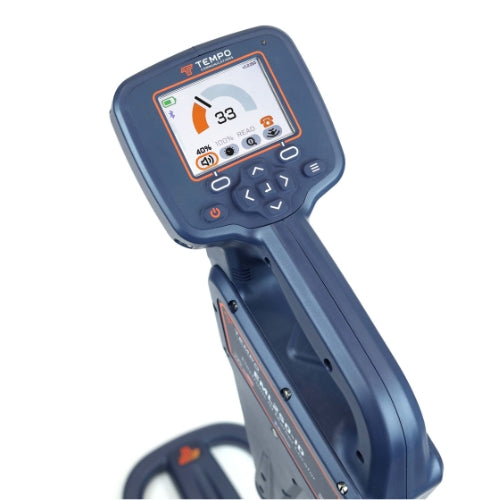

- Easy to read color LCD
- Rugged construction with IP65-rated foot and IP55-rated housing
- Rechargeable unit
SPECIFICATIONS
| Attribute Name | Attribute Value |
|---|---|
| Electrical | Rechargeable Battery, Battery Life: 10 hours typical |
| Operating Temperature | -4° to 122°F (-20°C to 50°C) |
| Storage Temperature | -40° to 158°F (-40°C to 70°C)* *Does not pertain to battery storage temperature limitations. See instruction manual for details. |
| Ingress Protection Rating | IP65 "*The EML250-ID has been independently tested to IEC 60529 standards for resistance to dust and water exposure. Following IP65 testing the entire unit powered on and functioned as intended with no damage or performance degradation observed. The antenna housing achieved IP65 (Dust-Tight and Water-Tight). The upper chassis achieved IP55 (Dust-Protected and Water-Tight)." |
| Length | 329mm |
| Width | 241mm |
| Height | 776mm |
| Weight | 5.05 lbs (2.28 kg) |
| RFID Marker Detection Range | |
| OmniMarker-ID | 5 ft (1.5m) |
| Spike Marker-ID | 3.3ft (1m) |
| Passive Marker Detection Range | |
| OmniMarker II | 5 ft (1.5m) |
| Spike Marker | 3.3ft (1m) |
DOCUMENTS
Common Questions About the EML250 ID Electronic RFID Marker Locator
What is the EML250 ID Electronic RFID Marker Locator used for?
The EML250 ID Electronic RFID Marker Locator is used to locate and identify underground utility markers, read and write marker data, and capture accurate location information for mapping.
Who is this RFID marker locator designed for?
This locator is designed for utility locators, contractors, municipalities, and GIS professionals who need precise underground marker identification and data tracking.
What makes the EML250 ID different from standard marker locators?
This unit features read and write RFID capability, mobile app integration for GIS uploads, GNSS compatibility for precise mapping, and multi frequency support for broad marker detection.
At a Glance
• RFID marker locator with read and write capability
• Supports all industry standard marker frequencies
• Mobile app and GNSS integration for mapping
• Rugged rechargeable design with high visibility display
