TEMPO | EML-100 Marker-Mate, Electronic Marker Locator | #EML100
TEMPO COMMUNICATIONS | PART #EML100
DESCRIPTION

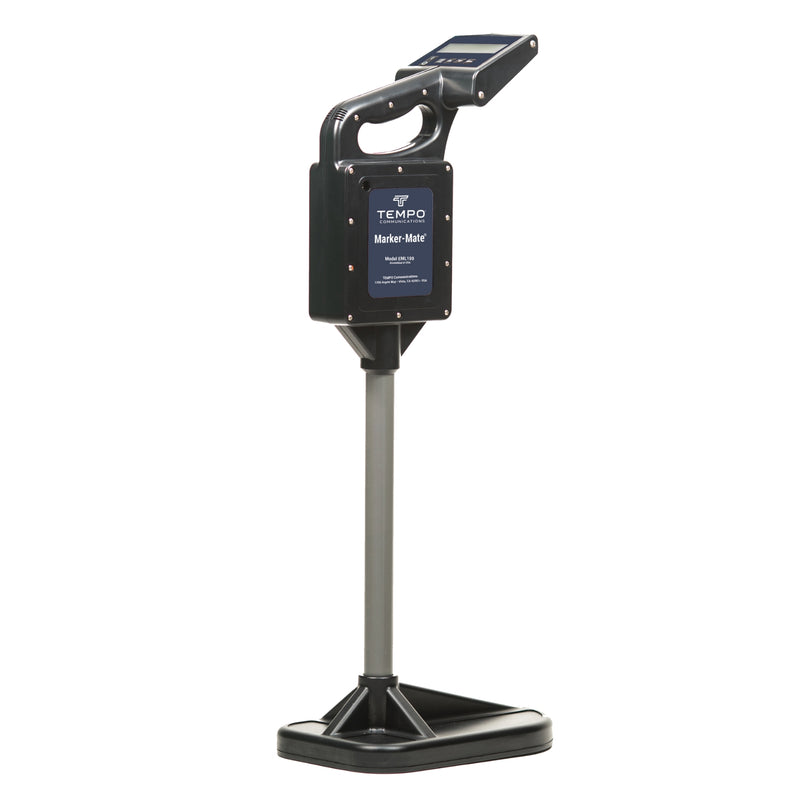

The Marker-Mate Electronic Marker Locator (EML-100) is designed to locate all underground electronic markers, including Tempo’s patented OmniMarker™ II, at industry-standard frequencies when buried up to 5 feet deep.
This underground locator is capable of detecting nine different electronic buried utility markers including power, European power, water, sanitary, telephone, fiber optic, gas, cable TV, and non-potable water. Featuring an automatic “scan” mode, the easy-to-use EML-100 quickly locates all marker types simultaneously and automatically determines which type is detected thus reducing time spent locating buried utilities. The user can also choose to use the advanced pinpoint feature to manually adjust its detection threshold, making it possible to narrow the detection area to a precise location.
The large-character display of the detector makes it easy to read in any light condition. The bar graph, numeric, and audible signal strength indicators provide quick and accurate results. You can adjust the speaker volume or plug in headphones for discreet use. The battery level indicator and low battery warning prevent you from running out of power at an inconvenient time, and an adjustable time-out feature helps to prolong battery life when you need it. The rugged detector is weather-resistant and can withstand harsh conditions, making it a reliable tool in any setting.
Patented – Patent #7095231, 7170411
OVERVIEW
-
- Designed to locate buried electronic markers, including Omni Marker II
- Five+ foot depth range
- Detects up to nine different marker types
- Scan mode provides simultaneous detection of all marker types
- User-adjustable Detection Threshold
- Digital signal processor accuracy
- Large-character display is easy to read
- Bar graph, numeric & audible signal strength indicators
- Speaker volume adjust
- Headphone jack
- Battery level indicator
- Low battery warning
- Adjustable time out feature prolongs battery life (and can be turned off)
- Weather resistant
- Rugged construction
Customer Testimonial:
“This is a new stage in which the G-PON system is being implemented. At this stage, it is necessary to install optical splitters in the rear closures, which together with the markers are buried in the ground. Marker locators are needed to find them. To do this, we used the EML-100 MARKER MATE, which performed much more accurately than more expensive competitor devices. We are very satisfied because the burial closure is found much faster and more accurately, so we get the job done faster.” - Company Director, Laimonas Petkus. The company UAB Optis installs fiber optic lines in rural areas in Lithuania.
SPECIFICATIONS
Attribute Name | Attribute Value |
---|---|
Battery Life | 20 HR Typical |
Dimensions | 30.700 IN Length X 7.800 IN Width X 12.800 IN Height |
Environment |
|
Sub Brand | Marker-Mate |
Type | Electronic |
Weight | 4.5 LB |
Country of Origin | US |
