Common 2-piece and 3-piece BNC/TNC and CATV “F” 2-piece
SPECIFICATIONS
| Attribute name | Attribute Value |
|---|---|
| Application | For Coaxial Connectors |
| Cable Type | RG6 and RG6 Quad, Belden 1694A |
| Connection | BNC and CATV 'F' Type & HDTV |
| Crimp Size | 0.360 IN (9.100 MM), 0.324 IN(8.200 MM), 0.068 IN (1.700 MM) HEX |
| Sub Brand | CrimpALL® |
| Type | Interchangeable |
| Item Status Date | 01012009 |
| Country of Origin | TW |
| UNSPSC | 43223334 |
| International Harmonize Code | 8207306092 |
| RoHS Indicator | U |
| MSDS Update Flag | N |

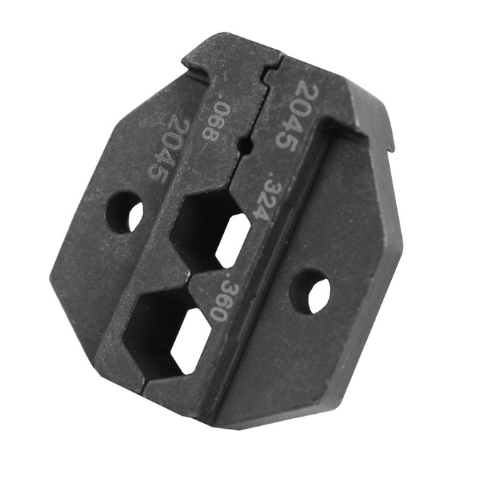

Common Questions About the Tempo PA2045 CrimpALL Coaxial Connector Crimping Die
What is the Tempo PA2045 CrimpALL Crimping Die used for?
The Tempo PA2045 is an interchangeable crimping die designed for installing coaxial connectors on RG6, RG6 Quad, and Belden 1694A cables. It supports common BNC, TNC, and CATV F-type connector applications, making it suitable for telecommunications, cable television, and HDTV installations.
What cable types and connectors are compatible with the Tempo PA2045?
The PA2045 is designed for RG6, RG6 Quad, and Belden 1694A coaxial cables. It accommodates compatible 2-piece and 3-piece BNC/TNC connectors and 2-piece CATV F-type connectors commonly used in broadband, video, and HDTV connections.
What crimp sizes does the Tempo PA2045 support?
The PA2045 features three hexagonal crimp sizes: 0.360 inch (9.1 mm), 0.324 inch (8.2 mm), and 0.068 inch (1.7 mm). As part of the Tempo CrimpALL interchangeable die system, it can be installed in compatible CrimpALL crimping tools for precise coaxial connector installation.
At a Glance
• Interchangeable CrimpALL die designed for coaxial connector installation
• Compatible with RG6, RG6 Quad, and Belden 1694A coaxial cables
• Supports common 2-piece and 3-piece BNC/TNC connectors
• Accommodates compatible 2-piece CATV F-type connectors and HDTV applications
• Features 0.360-inch, 0.324-inch, and 0.068-inch hexagonal crimp sizes
• Designed for use with compatible Tempo CrimpALL crimping tools
