Common 2-piece and 3-piece “N”-Type (Kings, ADC, Amphenol, etc.)
SPECIFICATIONS
| Attribute name | Attribute Value |
|---|---|
| Application | For Coaxial Connectors |
| Cable Type | RG8, RG11, RG213 |
| Connection | N-Type |
| Crimp Size | 0.429 IN (10.900 MM), 0.100 IN (2.540 MM), 0.080 IN (2.030 MM) HEX |
| Sub Brand | CrimpALL® |
| Type | Interchangeable |
| Item Status Date | 01012009 |
| Country of Origin | TW |
| UNSPSC | 43223334 |
| International Harmonize Code | 8207306092 |
| RoHS Indicator | U |
| MSDS Update Flag | N |

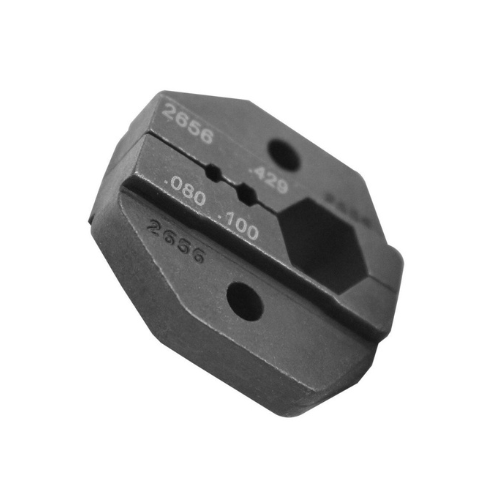

Common Questions About the Tempo PA2656 CrimpALL N-Type Coaxial Connector Crimping Die
What is the Tempo PA2656 CrimpALL Crimping Die used for?
The Tempo PA2656 is an interchangeable crimping die designed for installing compatible 2-piece and 3-piece N-Type coaxial connectors. It provides precise crimping capabilities for telecommunications, RF, and coaxial cable installation and maintenance applications.
What cable types and connectors are compatible with the Tempo PA2656?
The PA2656 is designed for RG8, RG11, and RG213 coaxial cables. It supports compatible N-Type connectors, including common 2-piece and 3-piece connector designs from manufacturers such as Kings, ADC, and Amphenol.
What crimp sizes does the Tempo PA2656 support?
The PA2656 features three hexagonal crimp sizes: 0.429 inch (10.9 mm), 0.100 inch (2.54 mm), and 0.080 inch (2.03 mm). As part of the Tempo CrimpALL interchangeable die system, it can be installed in compatible CrimpALL crimping tools for N-Type coaxial connector installation.
At a Glance
• Interchangeable CrimpALL die designed for N-Type coaxial connector installation
• Compatible with RG8, RG11, and RG213 coaxial cables
• Supports common 2-piece and 3-piece N-Type connector designs
• Suitable for compatible Kings, ADC, and Amphenol N-Type connectors
• Features 0.429-inch, 0.100-inch, and 0.080-inch hexagonal crimp sizes
• Designed for use with compatible Tempo CrimpALL crimping tools
