Common 2-piece and 3-piece BNC/TNC/SMA/SMB
SPECIFICATIONS
| Attribute name | Attribute Value |
|---|---|
| Application | For Coaxial Connectors |
| Cable Type | RG174, RG179 and Small Cable Connection |
| Connection | BNC/TNC |
| Crimp Size | 0.178 IN (4.500 MM), 0.128 IN(3.200 MM), 0.068 IN (1.700 MM) HEX |
| Package | Blister |
| Sub Brand | CrimpALL® |
| Type | Interchangeable |
| Item Status Date | 04302010 |
| Country of Origin | TW |
| UNSPSC | 43223334 |
| International Harmonize Code | 8207306092 |
| RoHS Indicator | U |
| MSDS Update Flag | N |

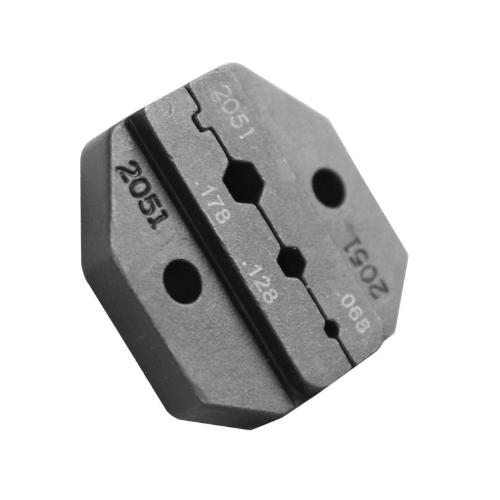

Common Questions About the Tempo PA2051 CrimpALL Coaxial Connector Crimping Die
What is the Tempo PA2051 CrimpALL Crimping Die used for?
The Tempo PA2051 is an interchangeable crimping die designed for installing coaxial connectors on smaller-diameter cables. It provides precise crimping capabilities for telecommunications, RF, networking, and coaxial cable installation and maintenance applications.
What cable types and connectors are compatible with the Tempo PA2051?
The PA2051 is designed for RG174, RG179, and other compatible small-diameter coaxial cables. It supports common 2-piece and 3-piece BNC, TNC, SMA, and SMB connector applications, making it a versatile option for technicians working with smaller coaxial cable assemblies.
What crimp sizes does the Tempo PA2051 support?
The PA2051 features three hexagonal crimp sizes: 0.178 inch (4.5 mm), 0.128 inch (3.2 mm), and 0.068 inch (1.7 mm). As part of the Tempo CrimpALL interchangeable die system, it can be installed in compatible CrimpALL crimping tools for coaxial connector installation.
At a Glance
• Interchangeable CrimpALL die designed for small-diameter coaxial connectors
• Compatible with RG174, RG179, and other suitable small coaxial cables
• Supports common 2-piece and 3-piece BNC and TNC connector applications
• Suitable for compatible SMA and SMB coaxial connector installations
• Features 0.178-inch, 0.128-inch, and 0.068-inch hexagonal crimp sizes
• Blister-packaged die for use with compatible Tempo CrimpALL crimping tools
