Common 2-piece and 3-piece BNC/TNC (Kings, ADC, Amphenol, etc.)

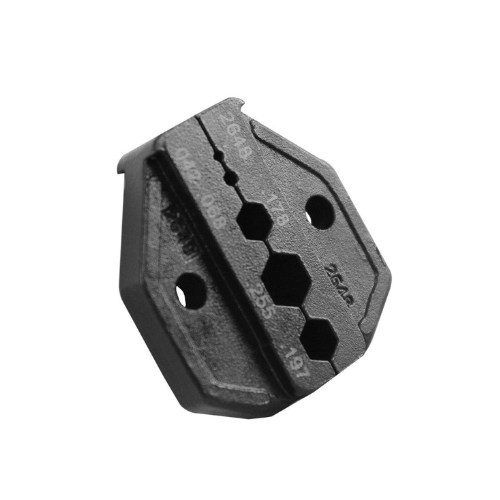

TEMPO | DIE MINI-75 BLISTER | #PA2648
Original price
$34.38
-
Original price
$34.38
Original price
$34.38
$34.38
-
$34.38
Current price
$34.38
TEMPO COMMUNICATIONS | PART #PA2648
DIE MINI-75 BLISTER
DESCRIPTION
SPECIFICATIONS
| Attribute name | Attribute Value |
|---|---|
| Application | For Coaxial Connectors |
| Cable Type | RG174, RG59/62, Mini-Coaxial 75-ohm |
| Connection | HDTV SMA, True 75-ohm BNC/TNC, Mini-UHF |
| Crimp Size | 0.255 IN (6.500 MM), 0.197 IN (5.000 MM), 0.178 IN (4.500 MM), 0.068 IN (1.700 MM) HEX and 0.042 IN (1.000 MM) SQ |
| Package | Blister |
| Sub Brand | CrimpALL® |
| Type | Interchangeable |
| Item Status Date | 01012009 |
| Country of Origin | TW |
| UNSPSC | 43223334 |
| International Harmonize Code | 8207306092 |
| RoHS Indicator | U |
| MSDS Update Flag | N |
Common Questions About the Tempo PA2648 CrimpALL Mini-75 Coaxial Connector Crimping Die
What is the Tempo PA2648 CrimpALL Mini-75 Crimping Die used for?
The Tempo PA2648 is an interchangeable crimping die designed for installing coaxial connectors on compatible 75-ohm mini-coaxial cables. It provides precise crimping capabilities for telecommunications, HDTV, broadcast video, and RF cable installation applications.
What cable types and connectors are compatible with the Tempo PA2648?
The PA2648 is designed for RG174, RG59, RG62, and compatible 75-ohm mini-coaxial cables. It supports common 2-piece and 3-piece BNC/TNC connectors, including compatible designs from Kings, ADC, and Amphenol. It also accommodates specified HDTV SMA and Mini-UHF connector applications.
What crimp sizes does the Tempo PA2648 support?
The PA2648 features four hexagonal crimp sizes: 0.255 inch (6.5 mm), 0.197 inch (5.0 mm), 0.178 inch (4.5 mm), and 0.068 inch (1.7 mm). It also includes a 0.042-inch (1.0 mm) square crimp. As part of the Tempo CrimpALL interchangeable die system, it can be installed in compatible CrimpALL crimping tools.
At a Glance
• Interchangeable CrimpALL Mini-75 die designed for coaxial connector installation
• Compatible with RG174, RG59, RG62, and suitable 75-ohm mini-coaxial cables
• Supports compatible 2-piece and 3-piece true 75-ohm BNC/TNC connectors
• Suitable for specified HDTV SMA and Mini-UHF connector applications
• Features four hex crimp sizes: 0.255, 0.197, 0.178, and 0.068 inch, plus a 0.042-inch square crimp
• Blister-packaged die for use with compatible Tempo CrimpALL crimping tools
