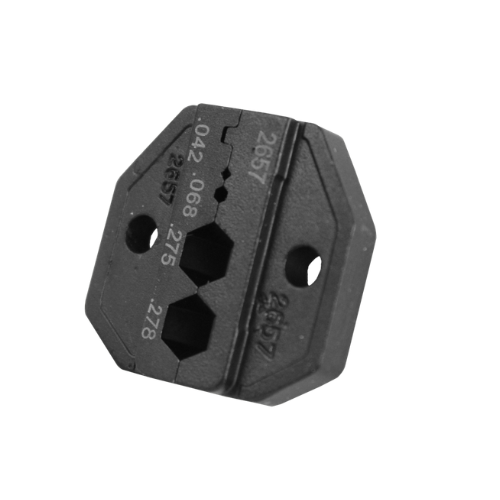

Common 3-piece BNC/TNC (Kings & SDC HDTV)
SPECIFICATIONS
| Attribute name | Attribute Value |
|---|---|
| Application | For Coaxial Connectors |
| Cable Type | RG6, Belden 1694, Bleden 1694A |
| Connection | HDTV BNC/TNC True 75-ohm |
| Crimp Size | 0.278 IN (7.000 MM), 0.275 IN (6.900 MM), 0.068 IN (1.700 MM) HEX and 0.042 IN (1.000 MM) SQ |
| Package | Blister |
| Sub Brand | CrimpALL® |
| Type | Interchangeable |
| Item Status Date | 01012009 |
| Country of Origin | TW |
| UNSPSC | 43223334 |
| International Harmonize Code | 8207306092 |
| RoHS Indicator | U |
| MSDS Update Flag | N |
Common Questions About the Tempo PA2657 CrimpALL Coaxial Connector Crimping Die
What is the Tempo PA2657 CrimpALL Crimping Die used for?
The Tempo PA2657 is an interchangeable crimping die designed for installing compatible 3-piece BNC and TNC coaxial connectors. It supports true 75-ohm HDTV connector applications, making it suitable for professional broadcast, video, telecommunications, and coaxial cable installations.
What cable types and connectors are compatible with the Tempo PA2657?
The PA2657 is designed for RG6, Belden 1694, and Belden 1694A coaxial cables. It supports compatible Kings and ADC-style 3-piece BNC/TNC connectors used in true 75-ohm HDTV and professional video applications.
What crimp sizes does the Tempo PA2657 support?
The PA2657 features three hexagonal crimp sizes: 0.278 inch (7.0 mm), 0.275 inch (6.9 mm), and 0.068 inch (1.7 mm). It also includes a 0.042-inch (1.0 mm) square crimp. As part of the Tempo CrimpALL interchangeable die system, it can be installed in compatible CrimpALL crimping tools.
At a Glance
• Interchangeable CrimpALL die designed for 3-piece BNC and TNC coaxial connectors
• Compatible with RG6, Belden 1694, and Belden 1694A coaxial cables
• Supports compatible Kings and ADC-style true 75-ohm HDTV connectors
• Features 0.278-inch, 0.275-inch, and 0.068-inch hexagonal crimp sizes
• Includes a 0.042-inch square crimp for compatible connector applications
• Blister-packaged die for use with compatible Tempo CrimpALL crimping tools
