For Standard Commercial Terminals (Hardware Store Brands)
SPECIFICATIONS
| Attribute name | Attribute Value |
|---|---|
| Application | For Insulated Terminal Crimpers |
| Cable Type | Insulated Terminals And Lugs |
| Connection | Solid Or Stranded Wire, 22 - 12 AWG (0.340 - 4.000 SQ-MM) |
| Crimp Size | 12-10 AWG (4.000 SQ-MM) Yellow, 16-14 AWG (1.500 - 2.500 SQ-MM) Blue, 22-18 AWG (0.340 - 0.750 SQ-MM) Red |
| Package | Blister |
| Sub Brand | CrimpALL® |
| Type | Interchangeable |
| Item Status Date | 01012009 |
| Country of Origin | TW |
| UNSPSC | 43223334 |
| International Harmonize Code | 8207306092 |
| RoHS Indicator | U |
| MSDS Update Flag | N |

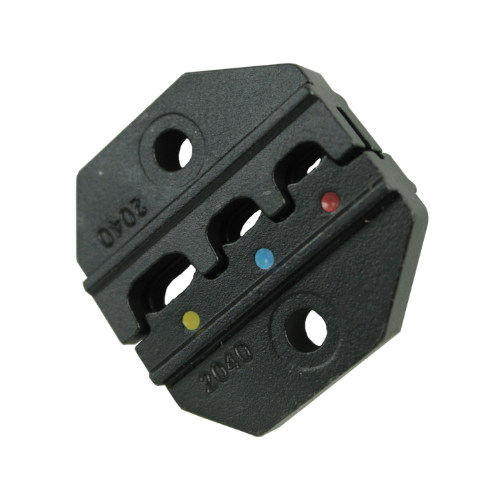

Common Questions About the Tempo PA2040 CrimpALL Insulated Terminal Crimping Die
What is the Tempo PA2040 CrimpALL Crimping Die used for?
The Tempo PA2040 is an interchangeable crimping die designed for installing standard commercial insulated terminals and lugs. It provides reliable crimping capabilities for electrical wiring, telecommunications, and general-purpose wire termination applications using commonly available insulated connectors.
What wire sizes and terminals are compatible with the Tempo PA2040?
The PA2040 accommodates 22 to 12 AWG solid or stranded wire, equivalent to approximately 0.34 to 4.0 mm². It is designed for standard commercial insulated terminals and lugs, including commonly available hardware store brands.
What crimp sizes does the Tempo PA2040 support?
The PA2040 features three color-coded crimping ranges: 22 to 18 AWG (red), 16 to 14 AWG (blue), and a yellow crimping position specified for 12 to 10 AWG terminals. As part of the Tempo CrimpALL interchangeable die system, it can be installed in compatible CrimpALL crimping tools.
At a Glance
• Interchangeable CrimpALL die designed for standard commercial insulated terminals and lugs
• Accommodates solid and stranded wire within the specified 22 to 12 AWG application range
• Red crimping range supports 22 to 18 AWG wire (0.34 to 0.75 mm²)
• Blue crimping range supports 16 to 14 AWG wire (1.5 to 2.5 mm²)
• Yellow crimping position specified for 12 to 10 AWG terminals
• Blister-packaged die for use with compatible Tempo CrimpALL crimping tools
